www.event-lighting.com.au

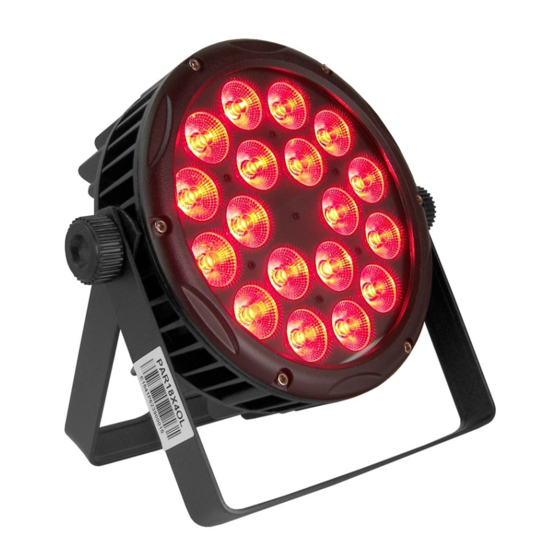

PAR18X4OL
18 x 4W RGBW IP65 Lite Series Par
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version 1.0 (October 2023)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting PAR18X4OL
Summary of Contents for Event Lighting PAR18X4OL
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION: Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation maintenance of this equipment should: &...
- Page 3 www.event-lighting.com.au • Never let the power - cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution ! • Never remove warning or informative labels from the equipment. • Do not open the equipment and do not modify the equipment. •...
- Page 4 www.event-lighting.com.au Digital display operate: a). Illustration part: B.B.B. A.MENU B.UP C.DOWN D.ENTER MENU DOWN ENTER Operation Instructions: After power on, press "MENU" key to appear the following function in turn, and then press confirm key to confirm. (This order is the new machine order, if the light has used other modes and saved the mode before shutdown, it will show the mode before shutdown again) other functions need to be saved by pressing "ENTER"...
- Page 5 www.event-lighting.com.au DMX CHART Value Description 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming Value Description 0-255 Total dimming 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 White dimming 0-10 Lights off 11-255 Strobe speed(slow to fast) Lights off color mixing mode 10-50...
- Page 6 www.event-lighting.com.au Notice: • Be sure to follow figures 2 & 3 when making your own cables. • Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 7 LED: 18PCS RGBW 4 IN1 Color: RGB color can be mixed to more than 16.7 million kinds of color. Beam Angle: 45° Dimmer: 0-100% linear dimming Operation: Auto, DMX512,Sound, Master/Slave Warranty Please refer to your local dealer or contact Event Lighting. www.event-lighting.com.au...
