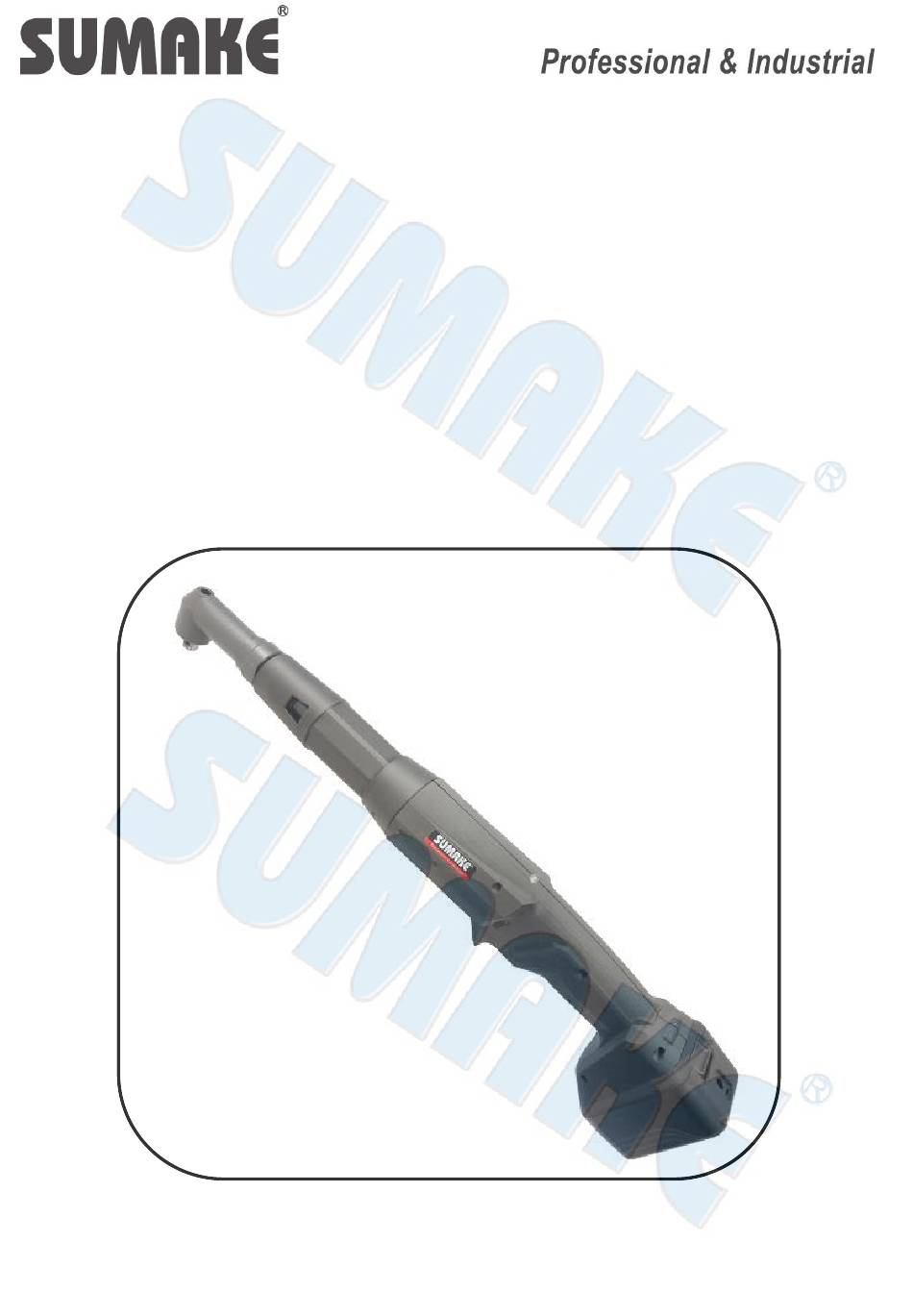

- Page 1 INSTRUCTION MANUAL EAS(W)-B12 series 10.8V BRUSHLESS FULL AUTO SHUT-OFF CORDLESS ANGLE SCREWDRIVER & WRENCH EAS(W)-B12 series-I-2411C-MI...
- Page 2 Specification Torque Length Weight(kg) Fastening Capacity Free Speed Standard range (W/O Diameter Model (rpm) Deviation Volt. (N.m) battery) w/2.5Ah Machine Tapping battery battery Screw Screw Soft joint NORMAL SPORT EAS-B1215 2.0~15.0 ±5 1.57 M4.5-M8.8 M3.5-M6.8 EAW-B1230 8.0~30.0 ±5 1.63 1.77 M6.9-M11.0 M5.6-M8.8 10.8V...
-
Page 3: Table Of Contents
Index Original Instructions…………………………………….……..……….1 General Safety Rules…………………………………………………...2 Accessories and technical Specifications………………………………4 Battery charging system……………………………………………….5 Operating instructions………………………………………………….6... -
Page 4: Original Instructions
⚫ Original Instructions To ensure the best results from your cordless screwdriver please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to contact us. For easy of use, this manual is divided into sections. Each section of the manual is written with you, the tool operator, in mind. -
Page 5: General Safety Rules
⚫ General Safety Rules Carefully read this manual before using this cordless screwdriver. Make sure that you know how the cordless screwdriver functions and how to operate it. Maintain the cordless screwdriver in accordance with the instructions to ensure that it functions properly. Keep this manual with the cordless screwdriver. - Page 6 appropriate conditions will reduce personal injuries. c) Do not overreach. Keep proper footing and balance at all times. This enables better control of the cordless screwdriver in unexpected situations. d) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
-
Page 7: Accessories And Technical Specifications
⚫ Accessories and technical Specifications Angle Size Model EAS-B1215 EAW-B1230 EAW-B1250 EAW-B1260... -
Page 8: Battery Charging System
⚫ Battery charging system For the transportation safety, all new batteries are shipped discharged and must be charged prior to first use. Batteries will take 8 hours to recharge at first use. Battery Warranty and Maintenance: ★ The warranty period for the battery is one year. When the battery is completely undischarged, it needs to be changed every three months. -
Page 9: Operating Instructions
⚫ Operating instructions A. Operation Frequency According to the on-site usage environment and locking conditions, it is recommended to operate intermittently for 1 minute to lock 10 screws. Do not exceed the recommended operating frequency. Otherwise, the motor may overheat and cause serious damage to internal parts. - Page 10 ⚫ Operating instructions D. Use the torque wrench to adjust torque (1)Remove the torque cover by turning it counterclockwise. (2)Rotate the wrench to adjust the torque. (3)Return the torque cover to the original position. E. Forward/Revering Lever & Trigger Lock The lever is designed for changing rotation of the drive, and for locking the trigger in an OFF position.
- Page 11 ⚫ Operating instructions F. Power saving switch According to the object, you can change the speed for energy saving and more efficiency. This feature is available for forward rotation. (1) Eco(low speed)mode： For hard joint screwing with low speed . More energy saving and number of screwing.
-
Page 12: Eu Declaration Of Conformity (Doc)
EU Declaration of Conformity (DOC) SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： BRUSHLESS CORDLESS ANGLE SCREWDRIVER/WRENCH Model/ Serial No.： EAS-B1215, EAW-B1230, EAW-B1250, EAW-B1260 The object of the declaration described above is in conformity with the relevant union...
