Rear Panel - J-Tech Digital JTD-3033 User Manual

Name
Data Signal Indicator
(on the right side of the
HDBT OUT port)
HDMI IN
IR IN
IR OUT
L/R OUT
SPDIF OUT
RS-232
LAN

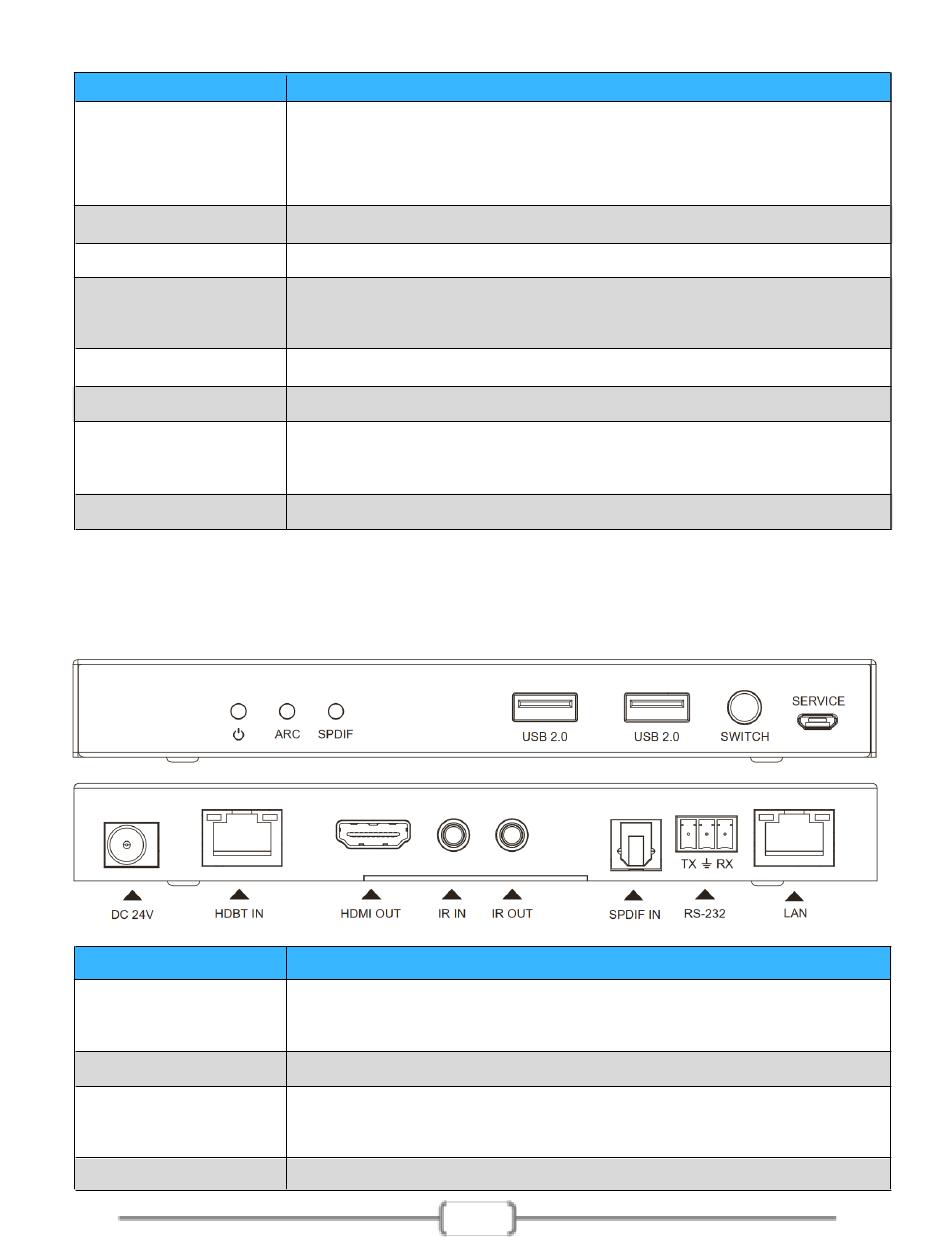

5.2 Receiver Panel
Name
POWER LED
ARC LED
SPDIF LED
Two USB 2.0 ports
Function Description
Illuminate: HDMI signal with HDCP.
Flash: HDMI signal without HDCP.
Dark: No HDMI signal.
HDMI source input.
IR input port for receiving the signal of IR remote.
IR output port for control of source device. This IR output signal is from
IR IN port of the Receiver.
3.5mm stereo connector for analog audio output.
SPDIF connector for optical audio output.
3-pin Phoenix connector for RS232 command transmission, supporting
RS-232 command pass-through between the Transmitter and Receiver.
RJ45 connector for connecting Hub or router.
Function Description
Red LED is on when the Receiver is working.
LED is off when the Receiver is on standby
Green LED is on when ARC function is turned on.
Green LED is on when SPDIF OUT port outputs the audio signal
returned from SPDIF IN on the Receiver.
Connect to USB device.
