- Page 1 USER MANUAL USB 2.0 Over Cat5e/6 extender JTD-617 | JTECH-BE100 J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction .......................3 2. Features ......................3. Package Contents .....................3 4. Specifications ....................4 5. Operation Controls and Functions ..............5 5.1 Transmitter Panel ....................5 5.2 Receiver Panel ..................... 5 6. Application Example ..................6 7. Maintenance ......................7 8. Warranty ......................7 9. -
Page 3: Introduction

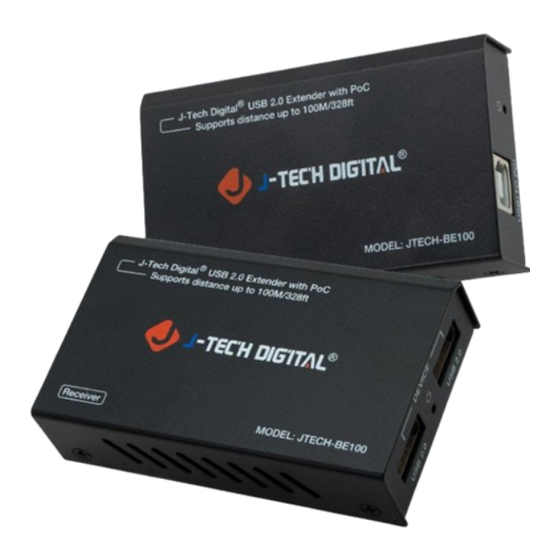

1. Introduction The JTECH-BE100 USB 2.0 Extender can extend USB signal up to 328ft via a single Cat5e/6 cable. On the transmitter, the USB-B port is connected to a PC. On the receiver, you can connect a USB device (USB storage / Printer / Peripheral) via the two USB ports. -
Page 4: Specifications
4. Specifications Technical USB Protocol USB 2.0 Transmission Rate Up to 200Mbps Transmission Distance 328ft. ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connection Transmitter Input Port: 1×USB [USB-B, female] Output Port: 1×CAT [RJ45, female] Receiver Input Port: 1×CAT [RJ45, female] Output Port: 2×USB [USB-A, female] Mechanical... -
Page 5: Operation Controls And Functions
Storage Temperature -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions 5.1 Transmitter Panel 5.2 Receiver Panel... -
Page 6: Application Example
6. Application Example... -
Page 7: Maintenance
7. Maintenance 8. Warranty 9. Mail-In Service 10. Limited Warranty Limits and Exclusions... - Page 8 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
