Summary of Contents for J-Tech Digital JTD-185

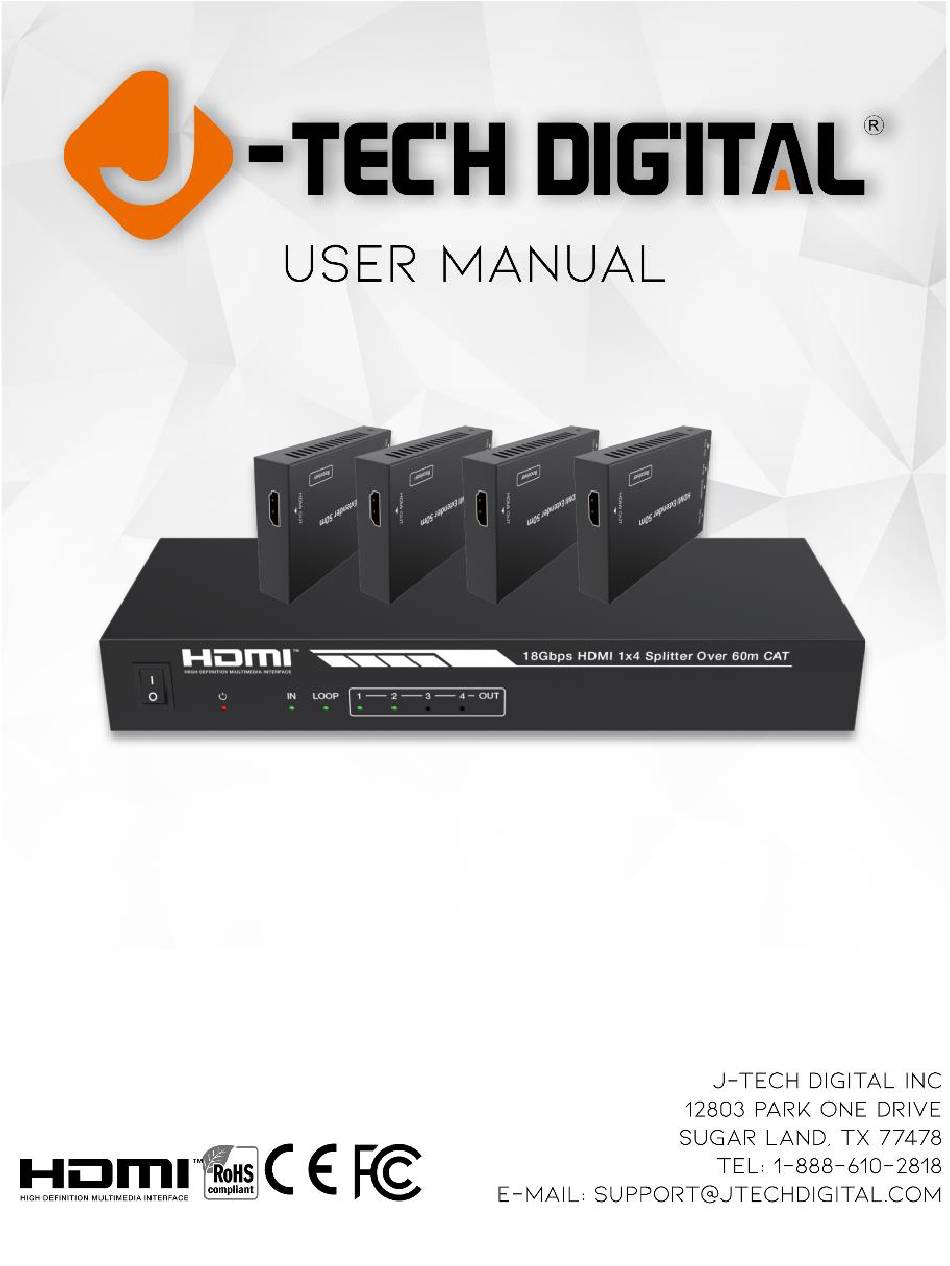

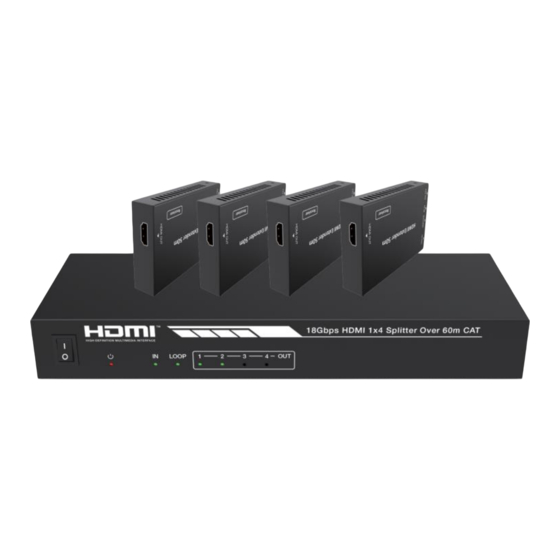

- Page 1 1x4 HDMI 2.0 Splitter Extender Over CAT JTD-185 | JTECH-14EX50...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The JTECH-14EX50 HDMI 1x4 Splitter can distribute 1 HDMI source signal to up to 4 display devices simultaneously. The splitter extender supports resolutions up to 4K@60Hz 4:4:4. The JTECH-14EX50 features 1 HDMI loop output and 4 CAT outputs. It can extend the HDMI source signal up to 114 feet at the resolution of 4K@60Hz | 164 feet at 4K@30Hz | 196 feet at 1080P@60Hz via a single... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2/1.x Video Bandwidth 18 Gbps Video Resolution Up to 4K@60Hz 4:4:4 8-bit,10-bit,12-bit(1080p@60Hz) Color Depth 8-bit (4K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K@60Hz YCbCr 4:2:2/4:2:0) Color Space RGB | YCbCr 4:4:4 / 4:2:2 | YUV 4:2:0 HDR10 | HDR10+ | HLG | Dolby Vision LPCM | Dolby Digital/Plus/EX | Dolby True HD | DTS | DTS-EX | DTS-96/24 | DTS High Res | DTS-HD... -
Page 5: Operation Controls And Functions
Mechanical Housing Metal Enclosure Silkscreen Color Black Transmitter: 8.27 in (W) × 3.94 in (D) × 0.98 in (H) Dimensions Receiver: 3.46 in (W) × 2.40 in (D) × 0.71 in (H) Weight Transmitter: 1.36 Lbs. Receiver: 0.34 Lbs. Input: AC100 - 240V 50/60Hz Power Supply Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) - Page 6 Rear Panel Name Function Description AUDIO OUT Coaxial/analog audio output port; connect to (COAX, L/R) amplifier or speaker IN: HDMI input port; connect to HDMI source device with HDMI cable HDMI Port LOOP OUT: HDMI loop output port; connect to HDMI display device with an HDMI cable Connect to the CAT IN port of the CAT receiver with CAT OUTPUT...
-
Page 7: Cat Receiver
5.2 CAT Receiver Name Function Description HDMI output port; connect to HDMI display with an HDMI OUT HDMI cable Connect to the CAT OUTPUT port on the transmitter CAT IN with a CAT cable When the receiver is powered on, the LED will Power Indicator illuminate green LED (Green) -
Page 8: Ir Pin Definition
5.3 IR Pin Definition Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ± 90 °, the transmission distance is 0-8 meters. -
Page 9: Edid Mode
6. EDID Mode The defined EDID setting list of the product is shown as below: EDID Mode EDID Description 11111 1080P, Stereo Audio 2.0 11110 1080P, Dolby/DTS 5.1 11101 1080P, HD Audio 7.1 11100 1080I, Stereo Audio 2.0 11011 1080I, Dolby/DTS 5.1 11010 1080I, HD Audio 7.1 11001... -
Page 10: Ascii Commands
7. ASCII Commands The product also supports ASCII command control. Connect the SERVICE port of the product to a PC with an USB cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 11 Command Code Function Description Example Feedback Default Setting Output Setting Enable HDMI loop Set HDMI loop output out stream stream on/off s hdmi stream z! s hdmi stream 1 ! enable Disable HDMI loop z=0~1(0:disable,1:enable) out stream Enable cat output 1 stream Disable cat output 1 s cat 1 stream 1 !
- Page 12 Command Code Function Description Example Feedback Default Setting EDID Setting Set input EDID from default EDID z, z=1~26 1, 1080p,Stereo Audio 2.0 2, 1080p,Dolby/DTS 5.1 3, 1080p,HD Audio 7.1 4, 1080i,Stereo Audio 2.0 5, 1080i,Dolby/DTS 5.1 6, 1080i,HD Audio 7.1 7, 3D,Stereo Audio 2.0 8, 3D,Dolby/DTS 5.1 9, 3D,HD Audio 7.1...
-
Page 13: Application Example
8. Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. -11-... - Page 14 -12-...
