5. Operation Controls and Functions

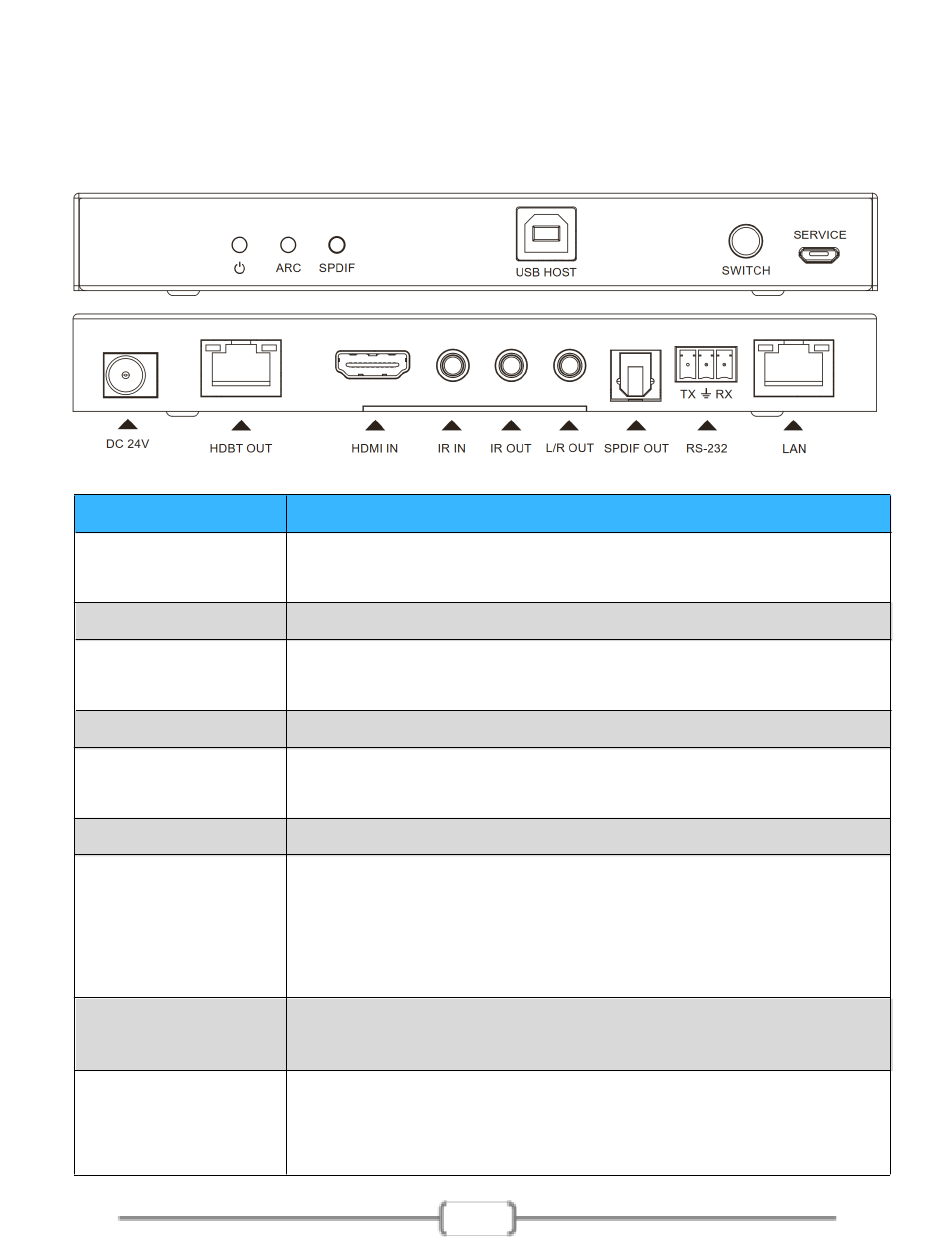

5.1 Transmitter Panel
Name
POWER LED
ARC LED
SPDIF LED
USB HOST
SWITCH
SERVICE PORT
DC 24V
HDBT OUT
Connection Signal
Indicator (on the left side
of HDBT OUT port)
Function Description
Red LED is on when the Transmitter is working.
LED is off when the Transmitter is on standby
Green LED is on when ARC function is turned on
Green LED is on when SPDIF OUT port outputs the audio signal
returned from SPDIF IN on the Receiver.
Connects to PC for transmitting Receiver's USB data to Transmitter.
Press the button to switch the output audio signal source for SPDIF
OUT and L/R OUT port.
Firmware update port.
DC 24V input for 24V 1A power adapter.
Note that the extender supports PoC function, it means that either
transmitter or receiver is connected to 24V/1A power supply, the other
doesn't need power supply.
RJ45 connector for connecting the HDBT IN port of Receiver with CAT
5e/6 cable.
Illuminate: Transmitter and Receiver are in good connection status.
Flash: Transmitter and Receiver are in poor connection status.
Dark: Transmitter and Receiver are not connected.
