Summary of Contents for J-Tech Digital JTD-3000

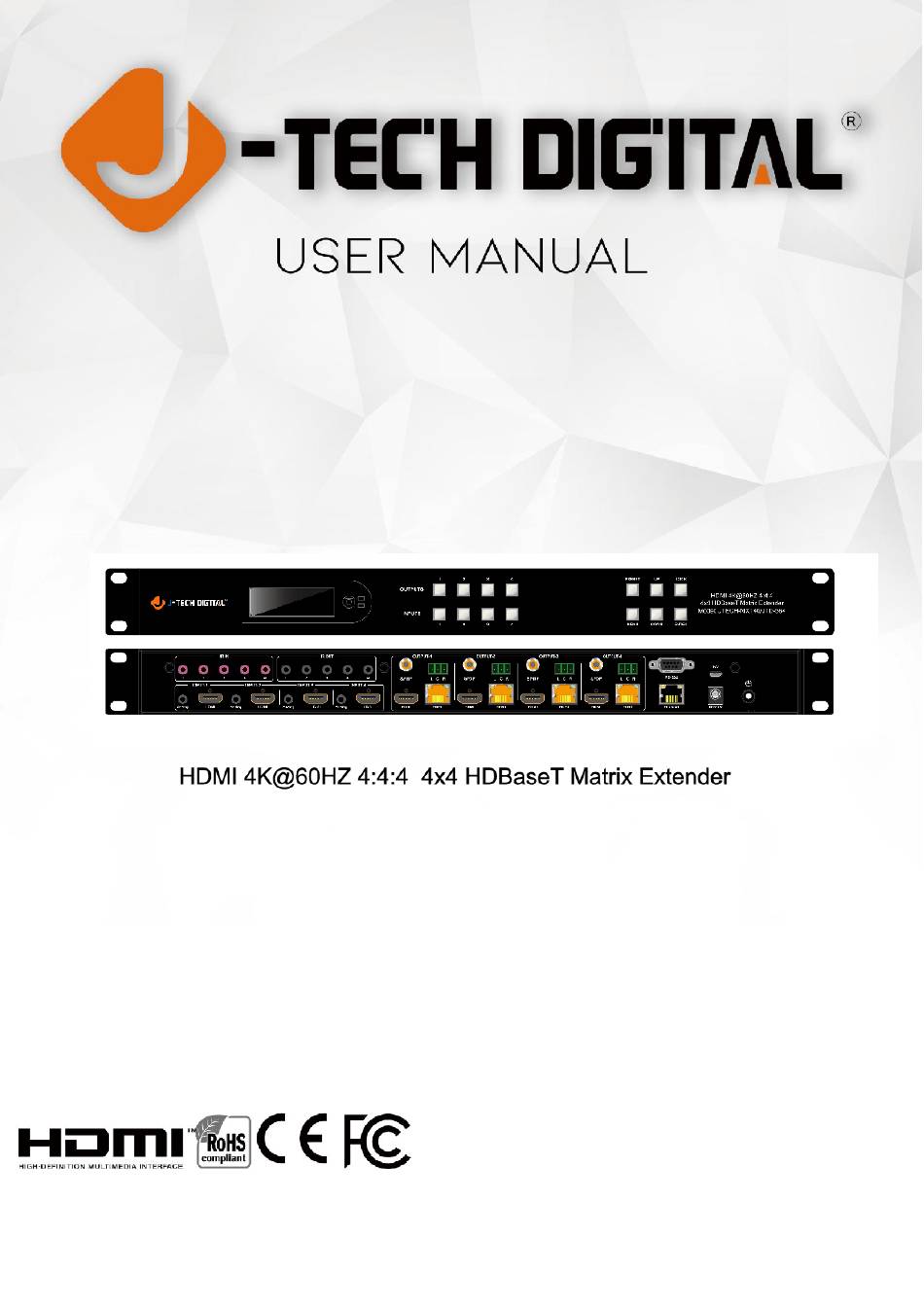

- Page 1 JTD-3000 | Model: JTECH-MXT40B J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 EMAIL: SUPPORT@JTECHDIGITAL.COM...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Catalogue 1. Features ............................4 2. Package Contents ..........................4 3. Specifications ..........................4 4. Panel Descriptions........................... 5 5. Wiring Diagram..........................6 6. Input / output channel key operation ....................7 7. Video switching operation ....................... 8 7.1. Video switch ......................... 8 7.2. -
Page 4: Features
Operating Instruction 1. Features Incorporates HDBaseT technology 4 x HDMI input and 4 x HDBaseT output with 4 x HDMI Loop out HDMI 2.0 version support 4K@60Hz YUV4:4:4, 8bit, 18G, HDR10 Transmit up to 70m/230ft. under 1080p, 40m/131ft. under 4K@60Hz ... -
Page 5: Panel Descriptions
Operating Instruction 4. Panel Descriptions ① LCD: Shows Matrix information ② Output button OUT1~8 & Input button IN1~8 ③ Function button: MUTE; MENU; UP; DOWN; LOCK; ENTER ① IR input port x4 & All in & IR output port x4 & All out ②... -
Page 6: Wiring Diagram
Operating Instruction 5. Wiring Diagram... -
Page 7: Input / Output Channel Key Operation
Operating Instruction 6. Input / output channel key operation Channel Button method 1. Directly press the number key, such as input channel 1, and select "1" to press (only Input 1-4 when the output port is selected, the input channel number will be valid) 2. -
Page 8: Video Switching Operation
Operating Instruction 7. Video switching operation 7.1. Video switch The signal switch includes 4 free switching channels, which can be configured as input/output according to the requirements, forming a matrix of 1 x 4 ~ 4 x 1, which can switch any input. Signal to 1 channel output or all channel output. - Page 9 Operating Instruction ② Then use “UP””DOWN”button to select“Switching” ③ Press“ENTER”enter next page ④ Press “UP””DOWN”button to select the output（The fifth port means ALL） ⑤ Press“ENTER” ⑥ Press “UP””DOWN”to select the input ⑦ Press“ENTER”，Switch Done 2.Video On/Off Turn on/off any output video or all outputs video ①...
-
Page 10: Audio Control
Operating Instruction 7.3. Audio Control The Audio Control have three sub menus: 1. Line Out 2. Audio Embed 3. Audio De-Embed The specific operation is as follows: 1. Line Out HDMI output audio switch. You can select a channel of HDMI output to mute the sound of the TV 2. -
Page 11: Edid Set Mode Interface
Operating Instruction 7.4. EDID Set Mode Interface Default EDID Default1 4K60 444-LPCM: 2.0 FXN1234 Default2 4K60 420-LPCM: 2.0 FXN1234 Default3 4K30 444-LPCM: 2.0 FXN1234 Default4 1080P60 444-LPCM: 2.0 FXN1234... -
Page 12: Preset Interface
Operating Instruction EDID Mode can set each input’s EDID. Includes: Default EDID; User EDID; Copy EDID; Copy HDBT EDID. 7.5. Preset Interface The PRESET interface can save the current video, audio, EDID, system Settings, etc., and supports 8 different scenes. Scenes can be modified and cleared through web pages, commands, and panels. The default preset is consistent with factory Settings... -
Page 13: Setup Mode Interface
Operating Instruction 7.6. SETUP mode Interface SETUP mode can set the device’s RS-232 baud rate, POC Switch, DHCP, Reboot, Factory Specific operations are as follows... -
Page 14: Rs-232 Baud Rate Setting
Operating Instruction 7.6.1. RS-232 Baud Rate setting It has 4 kinds of baud rates inside the device: 9600; 19200; 57600; 115200 Default Baud Rate is: 115200 ① Select“Setup”in the menu and press“ENTER” ② Then use “UP””DOWN”button to select the “BAUD”and press “ENTER” ③... -
Page 15: Reboot Setting
Operating Instruction 7.6.4. Reboot setting 7.6.5. Factory setting Factory Run: Reset Video, Audio, EDID, Setup setting, Preset, Device name. Factory User: Reset Video, Audio, EDID, Setup setting. -
Page 16: Info Mode Interface
Operating Instruction 7.7. INFO mode Interface Check the device information: IP or System information... -
Page 17: Audio Extraction
Operating Instruction 8. Audio Extraction HDMI audio output supports uncompressed audio PCM, compressed audio Dolby and DTS, with a maximum support of 7.1 sound channels and a maximum sampling rate of 192KHz. Analog audio supports PCM 2.0 channel. S/PDIF audio supports Dolby or DTS, 5.1 channel. -
Page 18: Remote Control Description
Operating Instruction 9. Remote Control Description ① Standby Mode ② Lock or Unlock the Panel Button ③ Choose output from 1-4 ④ Choose all the outputs. ⑤ X: Turn on/off output port which you select ⑥ PTP button: Mirror all inputs and outputs ⑦... -
Page 19: Command Control
Operating Instruction 11. Command Control Control software operation: The serial control software is illustrated with SSCOM32 as an example. Basic Settings: Double-click the software in the installation package to run specifically (as shown in figure 1 below) and install the RS232 software on the computer. Enter the main interface of the software, as shown in the figure below. -
Page 20: Web Control
Operating Instruction The following table is only an example. Please refer to the list of instructions. Instruction instruction parameter 1 parameter 2 description Video switch #video_d Audio Mode Switch #audio_%c in%d enc=%d EDID #EDID_%c In%d cfg=%d Please refer to the " Command list" for details. Example: ALL output switches to input 4. -
Page 21: Enter Web And Control
Operating Instruction 12.1. Enter Web and Control Enter the default IP address of the matrix: 192.168.1.168 Account: admin Password: admin 12.2. “Status” interface: Input Info & Output Info & Device Info: 1. CONNECT: The input status display bar. After connecting with the device, it will check whether the current input terminal has access signal source. -
Page 22: Input" Interface
Operating Instruction 12.3. “Input” interface: Noted: Double Click the Rename column can change the name of the ports. 12.4. “Output” interface:... -
Page 23: Preset" Interface
Operating Instruction 12.5. “Preset” interface: 12.6. “User EDID” interface: 12.7. “Network” interface: 12.8. “System” interface:... -
Page 24: Fw Upgrade
Operating Instruction 13. FW UPGRADE First upgrade MCU (layer of application) and then upgrade CPLD, finally upgrade HTML (web page), (CPLD, HTML, MCU all support to use USB Micro port for upgrading) A1 means MCU C0 means CPLD F0 means HTML 13.1. -
Page 25: Html (Web Gui) Upgrade
Operating Instruction 13.3. HTML (WEB GUI) Upgrade: Open the software UART_ISP_V1.6.exe on PC, select the correct port and baud rate 115200, enter "F0" in Port, then select the path of the program (XXX. HTML) in PATH, and click UPDATA to complete the upgrade... -
Page 26: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 27 WWW.JTECHDIGITAL.COM PUBLISHED BY J-TECH DIGITAL INC. 9807 EMILY LANE STAFFORD, TX 77477 TEL: 1-888-610-2818 E-MAIL: SUPPORT@JTECHDIGITAL.COM...
