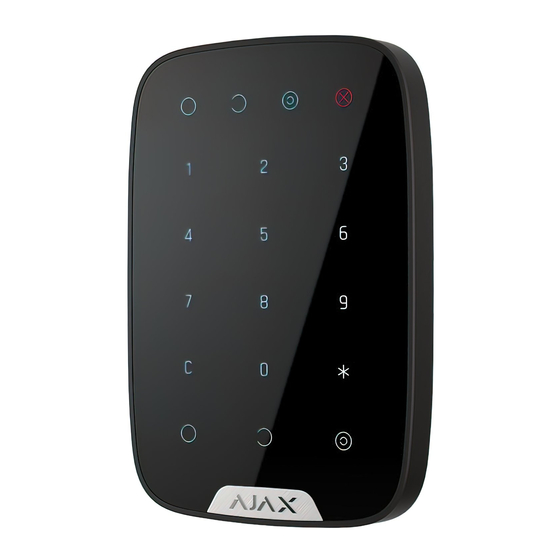

KeyPad is a wireless indoor touch-sensitive keyboard managing the Ajax
system. Designed for indoor use. With this device, the user can arm and disarm
the system and see its security status. KeyPad is protected against attempts to
guess the code and can raise a silent alarm when the code is entered under
duress.
Connecting to the Ajax system via a secured
communicates with the
KeyPad operates with Ajax hubs only and does not support connecting via
or
uartBridge
The device is set up via the
Buy keypad KeyPad
KeyPad User manual
Updated July 24, 2023
hub
at a distance of up to 1,700 m in line of sight.
integration modules.
Ajax apps
Jeweller
radio protocol, KeyPad
for iOS, Android, macOS, and Windows.
ocBridge Plus

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX KeyPad

Summary of Contents for AJAX KeyPad

  • Page 1 Designed for indoor use. With this device, the user can arm and disarm the system and see its security status. KeyPad is protected against attempts to guess the code and can raise a silent alarm when the code is entered under duress.

  • Page 2: Functional Elements

    Functional elements 1. Armed mode indicator 2. Disarmed mode indicator 3. Night Mode indicator 4. Malfunction indicator 5. The block of numerical buttons 6. Clear button 7. Function button 8. Arm button 9. Disarm button 10. Night Mode button 11. Tamper button 12. On/Off button 13.

  • Page 3: Operating Principle

    Ajax apps. You can control the security modes with KeyPad using codes. Before entering the code, you should activate (“wake up”) the keypad by touching it. When it is activated, the button backlight is enabled, and the keypad beeps.

  • Page 4: Function Button

    Ajax app will inform about the successful disarming of the system. At the same time, the security company will receive an alarm.
  • Page 5 Learn more Unauthorized access auto-lock If a wrong code is entered three times within 1 minute, the keypad will be locked for the time specified in the settings. During this time, the hub will ignore all codes and inform the users of the security system and the CMS about an attempt to guess the code.
  • Page 6 PRO Desktop or to the CMS. The list of transmitted parameters may differ depending on the type of the CMS and the selected communication protocol. The device ID and the number of the loop (zone) can be found in its states in the Ajax app.
  • Page 7 Malfunction indicator smoothly lights up and then switches off Sound noti cations of malfunctions If any device is offline or the battery is low, KeyPad can notify system users with an audible sound. The keyboards’ LEDs Х will blink. Malfunction notifications will be displayed in the events feed, SMS text, or push notification.
  • Page 8 Sound notifications of malfunctions appear when the keypad indication is finished. If several malfunctions occur in the system, the keypad will notify about the loss of connection between the device and the hub first.
  • Page 9 3. Select Add — the countdown will begin. 4. Switch on KeyPad by holding power button for 3 seconds — it will blink once with the keyboard backlight. For detection and pairing to occur, KeyPad should be located within the coverage of the wireless network of the hub (at the same protected object).

  • Page 10: Selecting The Location

    36 seconds). There are no pre-set codes for KeyPad. Before using KeyPad, set all necessary codes: keypad code (general code), personal user codes, and duress codes (general and personal). Selecting the Location The location of the device depends on its remoteness from the hub, and obstacles hindering the radio signal transmission: walls, floors, large objects...
  • Page 11 If after moving the device still has a low or unstable signal strength, use a radio signal range extender KeyPad is designed for operation when fixed to the vertical surface. When using KeyPad in hands, we cannot guarantee successful operation of the sensor keyboard.
  • Page 12 3. Settings Setting Meaning Name Device name, can be edited Selecting the virtual room to which the device is Room assigned Selecting the security group to which KeyPad is Group management assigned Access Settings Selecting the way of verification for arming/disarming...
  • Page 13 If active, the keyboard is locked for the pre-set time after entering incorrect code three times in Unauthorized Access Auto-lock a row within 1 minute.. During this time, the system cannot be disarmed via KeyPad Lock period after wrong attempts to enter a Auto-lock Time (min) code...
  • Page 14 Disconnects the device from the hub and Unpair Device deletes its settings Con guring codes Ajax system allows you to set up a keypad code, as well as personal codes for users added to the hub. With the OS Malevich 2.13.1 update, we have also added the ability to create access codes for people who are not connected to the hub.
  • Page 15 To set the keypad duress code 1. Go to keypad settings. 2. Select Duress Code. 3. Set the keypad duress code you want. To set a personal code for a registered user: 1. Go to profile settings: Hub →  Settings →...
  • Page 16 If a general code is used, the name of the user who changed the security mode is not displayed. Keypad Access Codes support hubs with OS Malevich 2.13.1 and higher. Hub control panel does not support this function.
  • Page 17 ID. To manage the arming mode of this group, entering a general or personal user code is sufficient. Please note that if a group is assigned to the KeyPad, you will not be able to manage Night Mode using a general code.
  • Page 18 Duress Code allows you to raise a silent alarm and imitate alarm deactivation. A silent alarm means that the Ajax app and sirens will not shout and expose you. But a security company and other users will be alerted instantly. You can use both personal and general duress codes.

  • Page 19: Functionality Testing

    → 4422 → To use a duress code of a person unregistered in the system: Enter the duress code set in Keypad Access Codes and press the disarming key For example: 4567 → How the re alarm muting function works Using the KeyPad, you can mute the interconnected fire detectors alarm by...

  • Page 20: Installation

    The double-sided adhesive tape may be only used for temporary attachment of KeyPad. The tape will run dry in course of time, which may result in the falling of the KeyPad and damage of the device. 2. Put KeyPad on the attachment panel and tighten the mounting screw on the body underside.

  • Page 21: Complete Set

    The battery installed in the KeyPad ensures up to 2 years of autonomous operation (with the inquiry frequency by the hub of 3 minutes). If the KeyPad battery is low, the security system will send the relevant notices, and the malfunction indicator will smoothly lights up and goes out after each successful code entry.

  • Page 22: Warranty

    1, EN 50131-3, EN 50131-5-3 Compliance with standards Warranty Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase and does not apply to the pre- installed battery. If the device does not work correctly, you should first contact the support...
