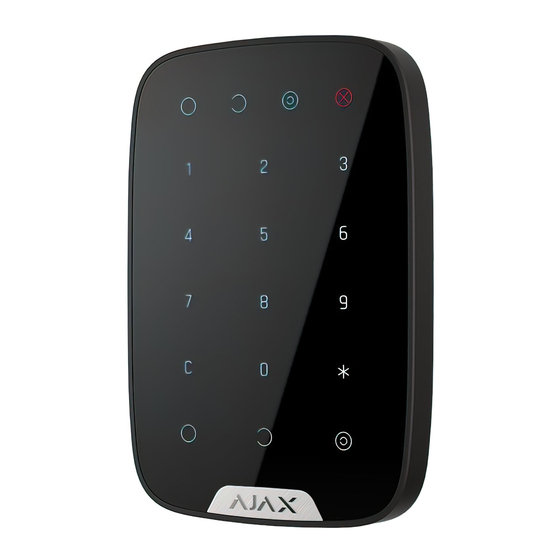

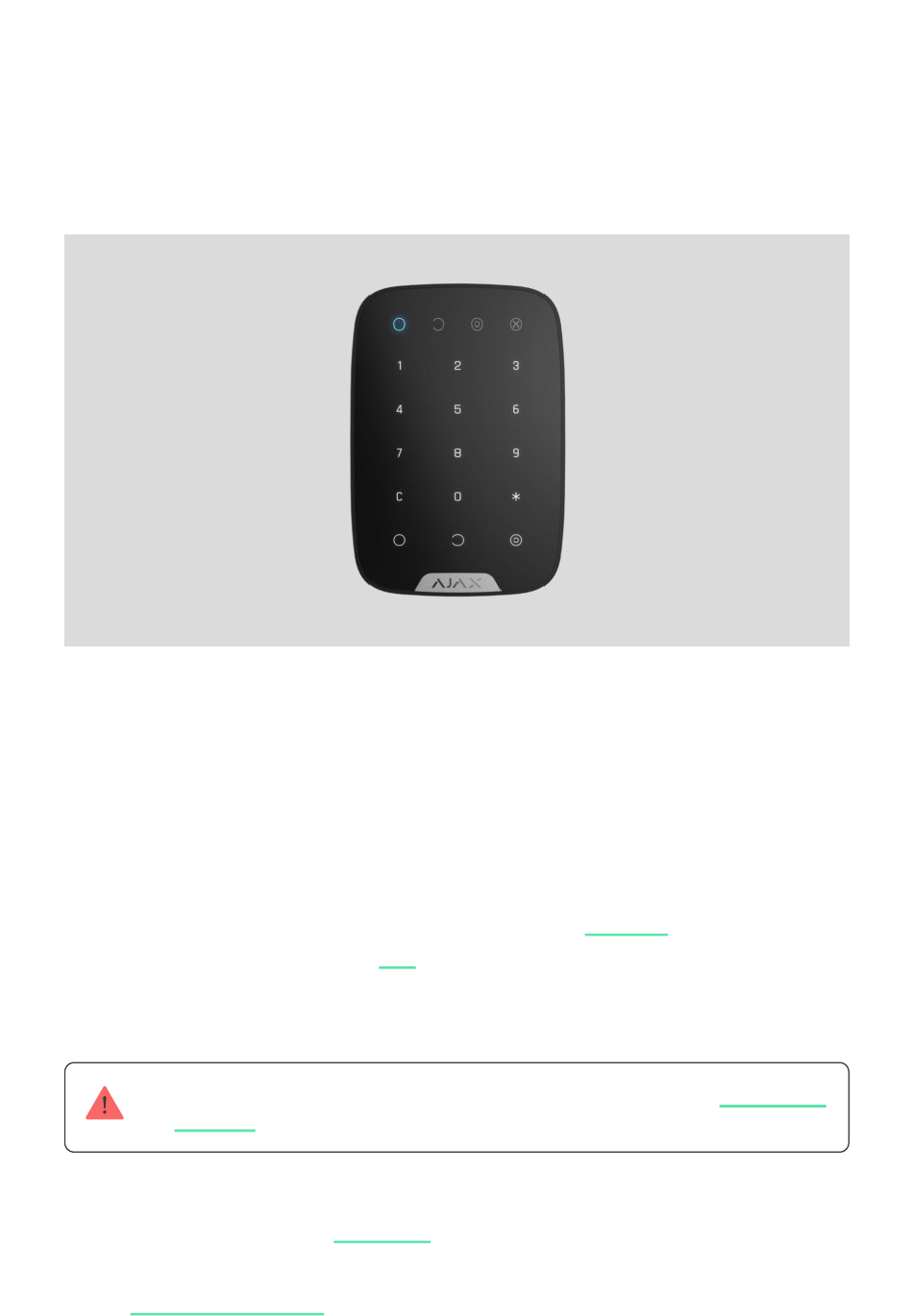

KeyPad is a wireless indoor touch-sensitive keyboard managing the Ajax
security system. Designed for indoor use. With this device, the user can arm and
disarm the system and see its security status. KeyPad is protected against
attempts to guess the passcode and can raise a silent alarm when the passcode
is entered under duress.
Connecting to the Ajax security system via a secured
KeyPad communicates with the
sight.
KeyPad operates with Ajax hubs only and does not support connecting via
or
uartBridge
The device is set up via the
Buy keypad KeyPad
KeyPad User Manual
Updated July 4, 2022
hub
at a distance of up to 1,700 m in line of
integration modules.
Ajax apps
Jeweller
for iOS, Android, macOS, and Windows.
radio protocol,
ocBridge Plus

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KeyPad and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJAX KeyPad

Summary of Contents for AJAX KeyPad

  • Page 1 Designed for indoor use. With this device, the user can arm and disarm the system and see its security status. KeyPad is protected against attempts to guess the passcode and can raise a silent alarm when the passcode is entered under duress.

  • Page 2: Functional Elements

    Functional elements 1. Armed mode indicator 2. Disarmed mode indicator 3. Night mode indicator 4. Malfunction indicator 5. The block of numerical buttons 6. “Clear” button 7. “Function” button 8. “Arm” button 9. “Disarm” button 10. “Night mode” button 11. Tamper button 12.

  • Page 3: Operating Principle

    Ajax apps. You can control the security modes with KeyPad using codes. Before entering the code, you should activate (“wake up”) the keypad by touching it. When it is activated, the button backlight is enabled, and the keypad beeps.

  • Page 4: Function Button

    At the same time, the security company will receive an alarm. The following types of duress codes are available: Keypad code — when used, events are delivered to Ajax apps on behalf of the keypad. Personal password — set up for each user connected to the hub. When used, events are delivered to Ajax apps on behalf of the user.
  • Page 5 Unauthorized access auto-lock If a wrong code is entered three times within 1 minute, the keypad will be locked for the time speci ed in the settings. During this time, the hub will ignore all codes and inform the users of the security system and the CMS about an attempt to guess the code.
  • Page 6 PRO Desktop or to the CMS. The list of transmitted parameters may differ depending on the type of the CMS and the selected communication protocol. The device ID and the number of the loop (zone) can be found in its states in the Ajax app.
  • Page 7 When touching KeyPad, it wakes up highlighting the keyboard and indicating the security mode: Armed, Disarmed, or Night Mode. The security mode is always actual, regardless of the control device that was used to change it (the key fob or app).
  • Page 8 3. Select Add — the countdown will begin. 4. Switch on KeyPad by holding power button for 3 seconds — it will blink once with the keyboard backlight. For detection and pairing to occur, KeyPad should be located within the coverage of the wireless network of the hub (at the same protected object).

  • Page 9: Selecting The Location

    1. Near the radio transmission equipment, including that operates in 2G/3G/4G mobile networks, Wi-Fi routers, transceivers, radio stations, as well as an Ajax hub (it uses a GSM network). 2. Close to electrical wiring. 3. Close to metal objects and mirrors that can cause radio signal attenuation or shading.
  • Page 10 If after moving the device still has a low or unstable signal strength, use a radio signal range extender KeyPad is designed for operation when xed to the vertical surface. When using KeyPad in hands, we cannot guarantee successful operation of the sensor keyboard.
  • Page 11 Value First eld Device name, can be edited Selecting the virtual room to which the device is Room assigned Selecting the security group to which KeyPad is Arming/Disarming Permissions assigned Group management Selecting the way of veri cation for arming/disarming...
  • Page 12 Alert with a siren if panic button is pressed If active, the Function button pressing triggers the sirens installed at the object Switches the device to the signal strength test Jeweller Signal Strength Test mode Signal Attenuation Test Switches the KeyPad to the signal fade test...
  • Page 13 Setting up codes and passwords Ajax security system allows you to set up a keypad password, as well as personal passwords for users added to the hub. With the OS Malevich 2.13.1 update, we have also added the ability to create passwords for people who are not connected to the hub.
  • Page 14 Keypad access codes support hubs with OS Malevich 2.13.1 and higher. Hub control panel does not support this function. Security management of the entire facility using a common...
  • Page 15 ID. To manage the arming mode of this group, entering a common or personal password is su cient. Please note that if a group is assigned to the KeyPad, you will not be able to manage Night mode using a common password.
  • Page 16 What is Group ID? What is User ID? If a group is assigned to the KeyPad (Arming / Disarming permission eld in the keypad settings), you do not need to enter the group ID. To manage the arming mode of this group, entering a personal password is su cient.
  • Page 17 For example: 4567 → How the re alarm muting function works Using the KeyPad, you can mute the interconnected re detectors alarm by pressing the Function button (if the corresponding setting is enabled). The reaction of the system to pressing a button depends on the state of the system: Interconnected Fire Detectors Alarms have already propagated —...

  • Page 18: Functionality Testing

    The double-sided adhesive tape may be only used for temporary attachment of KeyPad. The tape will run dry in course of time, which may result in the falling of the KeyPad and damage of the device.

  • Page 19: Complete Set

    2. Put KeyPad on the attachment panel and tighten the mounting screw on the body underside. As soon as the KeyPad is xed in SmartBracket, it will blink with the LED X (Fault) — this will be a signal that the tamper has been actuated.
  • Page 20 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Depends on the region of sale. hubs radio Operates only with all Ajax , and Compatibility signal range extenders Maximum RF output power Up to 20 mW Modulation of the radio signal...

  • Page 21: Warranty

    Compliance with standards Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should rst contact the support service —...
