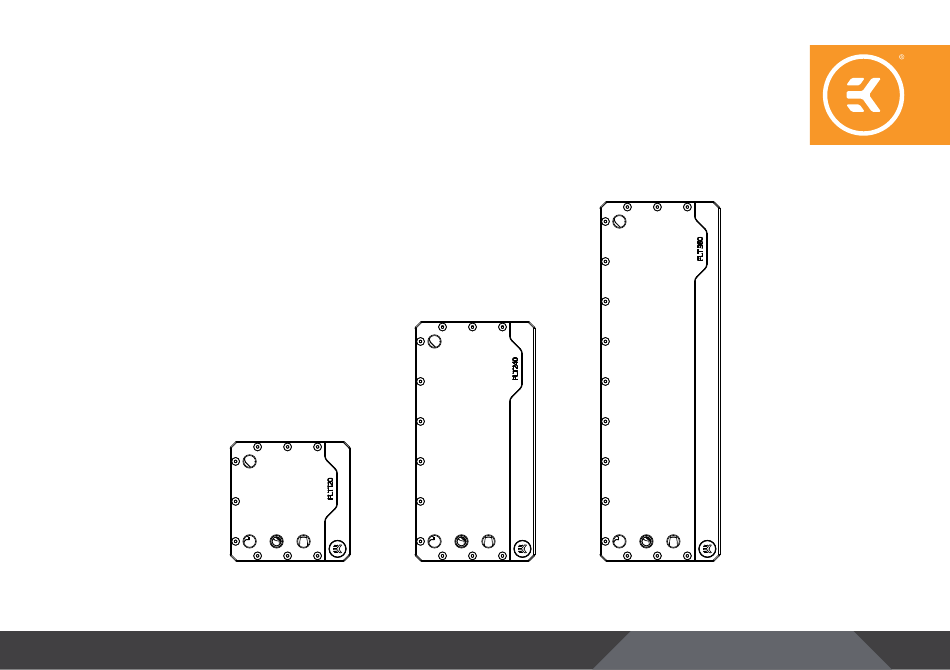

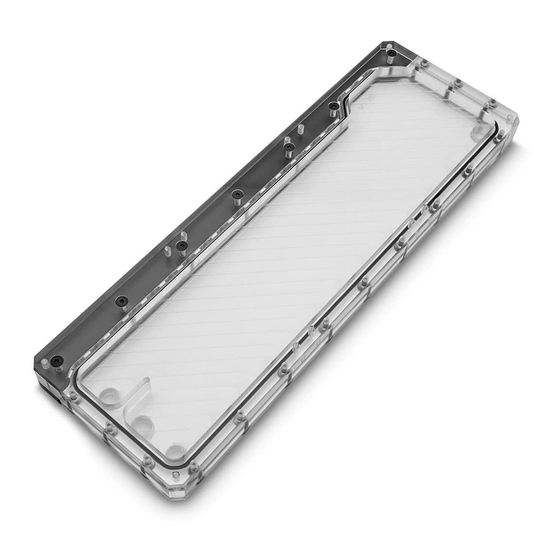

- Page 1 EK-Quantum Volume / Kinetic FLT INSTALLATION MANUAL...
- Page 2 The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EK-Cryofuel for worry-free usage. There are many ways to install your EK-Quantum Volume/Kinetic FLT as it utilizes a standard fan mounting hole pattern with 15mm spacing, the same as all EK radiators.
-
Page 3: Table Of Contents
TABLE OF CONTENT INSTALLING EK-QUANTUM VOLUME / KINETIC FLT DIRECTLY INSTALLING EK-QUANTUM VOLUME / KINETIC FLT WITH SUPPLIED MOUNTS INSTALLING EK-QUANTUM VOLUME / KINETICFLT RESERVOIR IN TO THE CASE ATTACHING THE FITTINGS CONNECTING THE D-RGB LED STRIP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... - Page 4 FLT Reservoir can be mount in multiple directions. Do not mount FLT Reservoir when the pump is in dead position. Vertically and horizontally position is optional. - 4 -...
-
Page 5: Installing Ek-Quantum Volume / Kinetic Flt Directly
INSTALLING EK-QUANTUM VOLUME / KINETIC FLT DIRECTLY Using the included M4 screws you can mount the reservoir directly to your chassis or any other standard fan mounting location. M4 x 10 DIN 7984 Screw M4 x 10 DIN 7984 Screw - 5 -... -
Page 6: Installing Ek-Quantum Volume / Kinetic Flt With Supplied Mounts
INSTALLING EK-QUANTUM VOLUME / KINETIC FLT WITH SUPPLIED MOUNTS To enable installation of the reservoir onto fans, radiators or where clearance for the pump is required EK supplies a pair of FLT mounts along with M4 nuts, washers and additional screws. They can be positioned across any pair of mounting holes in several orientations. -
Page 7: Installing Ek-Quantum Volume / Kineticflt Reservoir In To The Case
INSTALLING EK-QUANTUM VOLUME / KINETICFLT RESERVOIR IN TO THE CASE Included M4 nuts, washers and M4x10 screws can be used to mount the flat reservoir to a fan. M4 x 10 DIN 7984 Screw M4 metal Washer M4 Nut Using 30mm long screws supplied with your radiator the reservoir can be mounted onto the radiator and 25mm thick fans together. - Page 8 Alternatively the shorter 5mm long screws from the radiator may be used to mount only the reservoir. UNC 6-32 x 5 ISO 7380 Screw Radiator FLT Mount Lastly the supplied M4 nuts, washers and M4x10 screws may be M4 Nut used to secure the reservoir to a case with the mounts.
-
Page 9: Attaching The Fittings
ATTACHING THE FITTINGS EK-Quantum Kinetic FLT has two inlet and two outlet ports, one of each must be used! All 4 unused ports should be blocked using G1/4 plugs. FILL DRAIN OUTLET OUTLET INTLET EK-Quantum Volume FLT has two ports which can be used as inlet or outlet, the chosen outlet should connect directly to your pump! The reservoir should be positioned above the pump to ensure it does not run without coolant. -
Page 10: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from Water block’s D-RGB LED light to the DRGB HEADER on the motherboard. The LED will work if the pin layout on the header is as follows: +5V, Digital, empty, Ground. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. -
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
