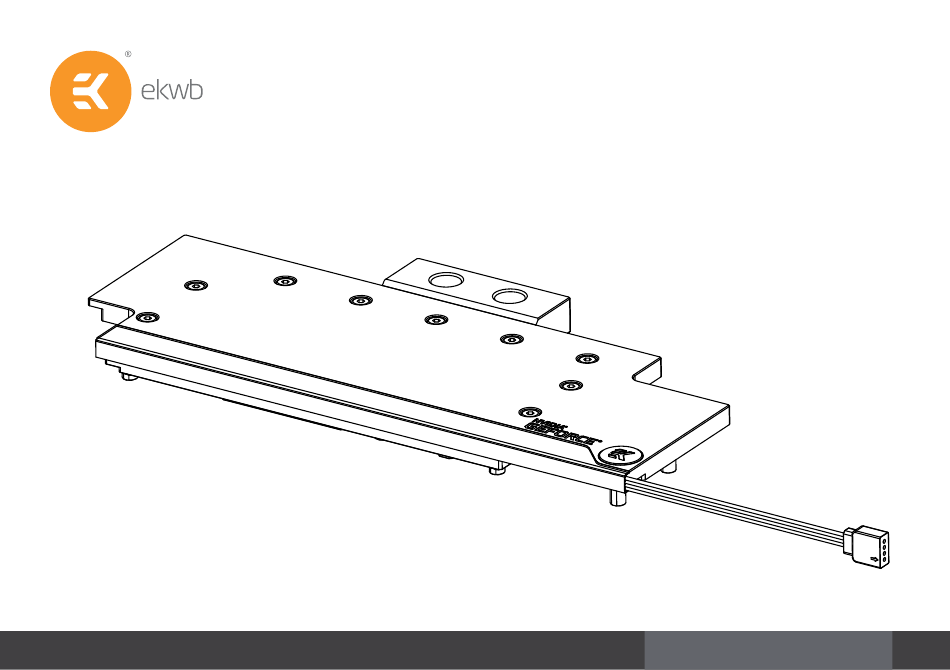

- Page 1 EK-FC2080 + Ti Classic GPU WATER BLOCK INSTALLATION MANUAL...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
- Page 3 TABLE OF CONTENT PREPARING YOUR GRAPHIC CARD INSTALLING THE WATER BLOCK FOR RTX 2080 / RTX 2080 TI GRAPHIC CARD CHECKING FOR CONTACTS INSTALLATION OF FITTINGS AND TUBING INSERTING THE CARD IN YOUR PC CASE REQUIRED TOOLS CONNECTING THE RGB LED STRIP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
- Page 4 PREPARING YOUR GRAPHIC CARD STEP 1 REMOVING FACTORY PROVIDED BACKPLATE Remove all encircled screws using Phillips screwdriver. All heat sink assembly screws should be removed, including self-adhesive washers on both sides of the PCB (if present). STEP 1 STEP 2 REMOVING STOCK COOLER Remove all encircled screws using Phillips screwdriver (4 springs) and 4mm hex socket.
- Page 5 Wipe off the remains (by using non–abrasive cloth or q-tip, as shown on sample photo) of the original thermal compound until the components and circuit board are completely clean. EKWB recommends the use of denatured alcohol for removing TIM leftovers.
- Page 6 STEP 5 CUTTING THERMAL PADS 1: Thermal pad E – 0.5mm (for memory IC): Your block comes with thermal pads, some of which are already pre-cut. Others have to be cut to smaller chunks in order to cover all the VRM components such as COILs, MOSFETs and drivers.
- Page 7 M2,5x6 AX1 Use a Philips screwdriver screw with the enclosed M2,5x4 AX1 screws. EKWB recommends users to start tightening the screws around the GPU core and continue outwards. Always use a plastic washer under each and every screw! If the washer is already present on the circuit board (usually around the four GPU core screw holes) there is no need for additional washer.
- Page 8 Screw in the two G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water-block(s) into the cooling circuit. EKWB recommends using EK fittings with the EK-Vector series Tubing water blocks. To ensure that the tubes are securely attached to the barb/fittings, please use hose clamps or an appropriate substitute.
- Page 9 INSERTING THE CARD IN YOUR PC CASE Carefully lift your graphics card with installed block and insert it in your PC’s motherboard PCI-express expansion slot. Please bear in mind that your graphics card is probably heavier than when it was equipped with original heat sink fan assembly.
- Page 10 CONNECTING THE RGB LED STRIP STEP 1 Plug the 4-pin connector from Water blocks RGB LED to the RGB HEADER on your motherboard. LED will work if the pin layout on the header is as follows: +12V G R B. Please ensure that the arrow indicated on the connector is plugged into the +12V line as indicated on your motherboard...
- Page 11 SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
