5.13. Front Panel Header (J11)

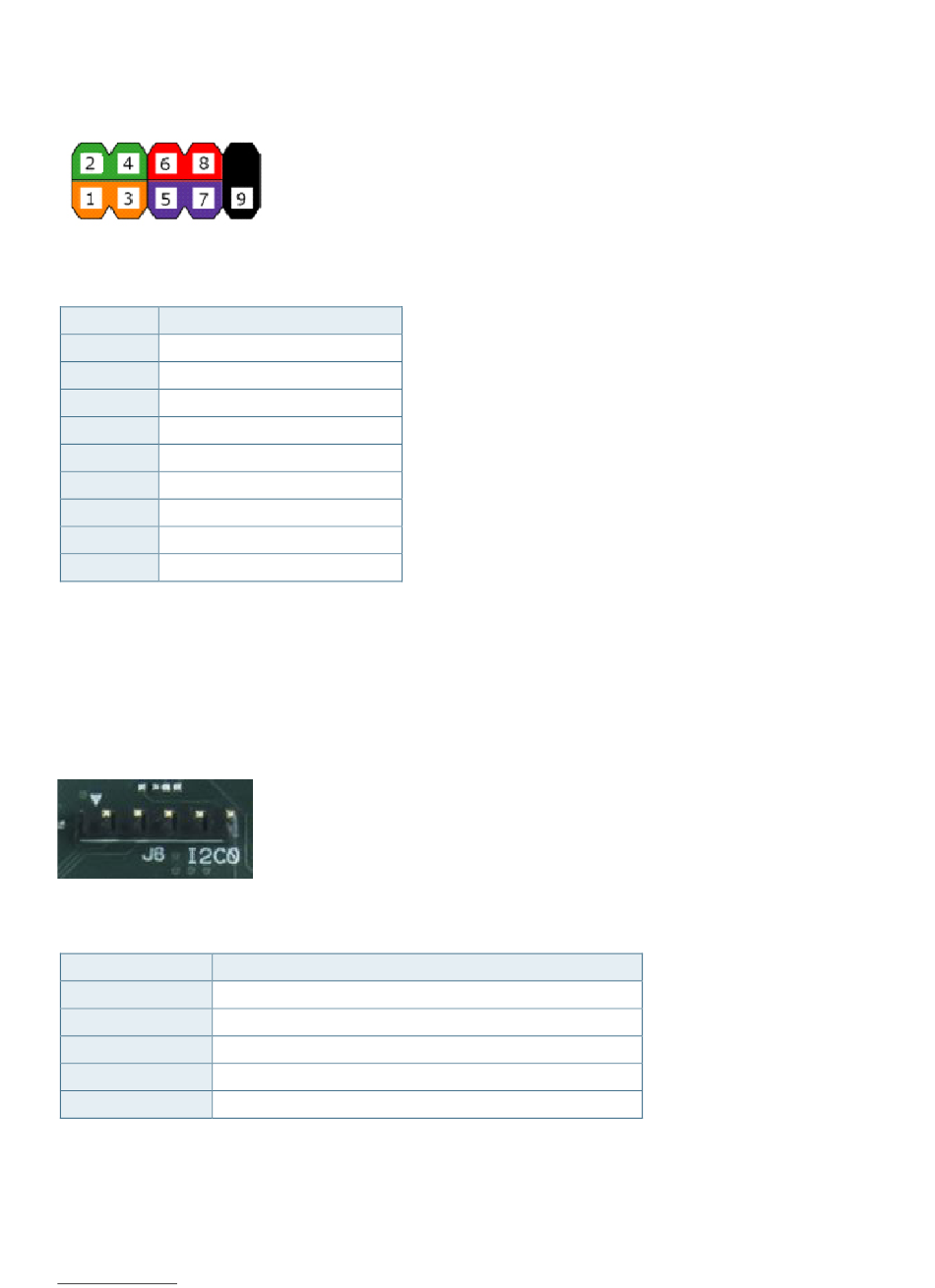

Figure 19: Front Panel Connector

Table 18: Front Panel Header

Pin Signal Name
1 SATA_LED+
2 POWER_LED+
3 SATA_ACT#
4 GND
5 GND
6 SW_PWRBTN#
7 SYS_RESET_R#
8
GND
9 V_5V0_S0

5.14. I2C (J6)

The I2C Interface supports clock from 127 Hz to 400 kHz (limited by on board devices and capacitive loading) and
can be configured in Setup.

Figure 20: I2C header

Table 19: I2C Header (J51)

Pin Description
1 V_3V3_S5
2 I2C_DAT
3
I2C_CLK
4 GND
5 I2C0_ALERT#
