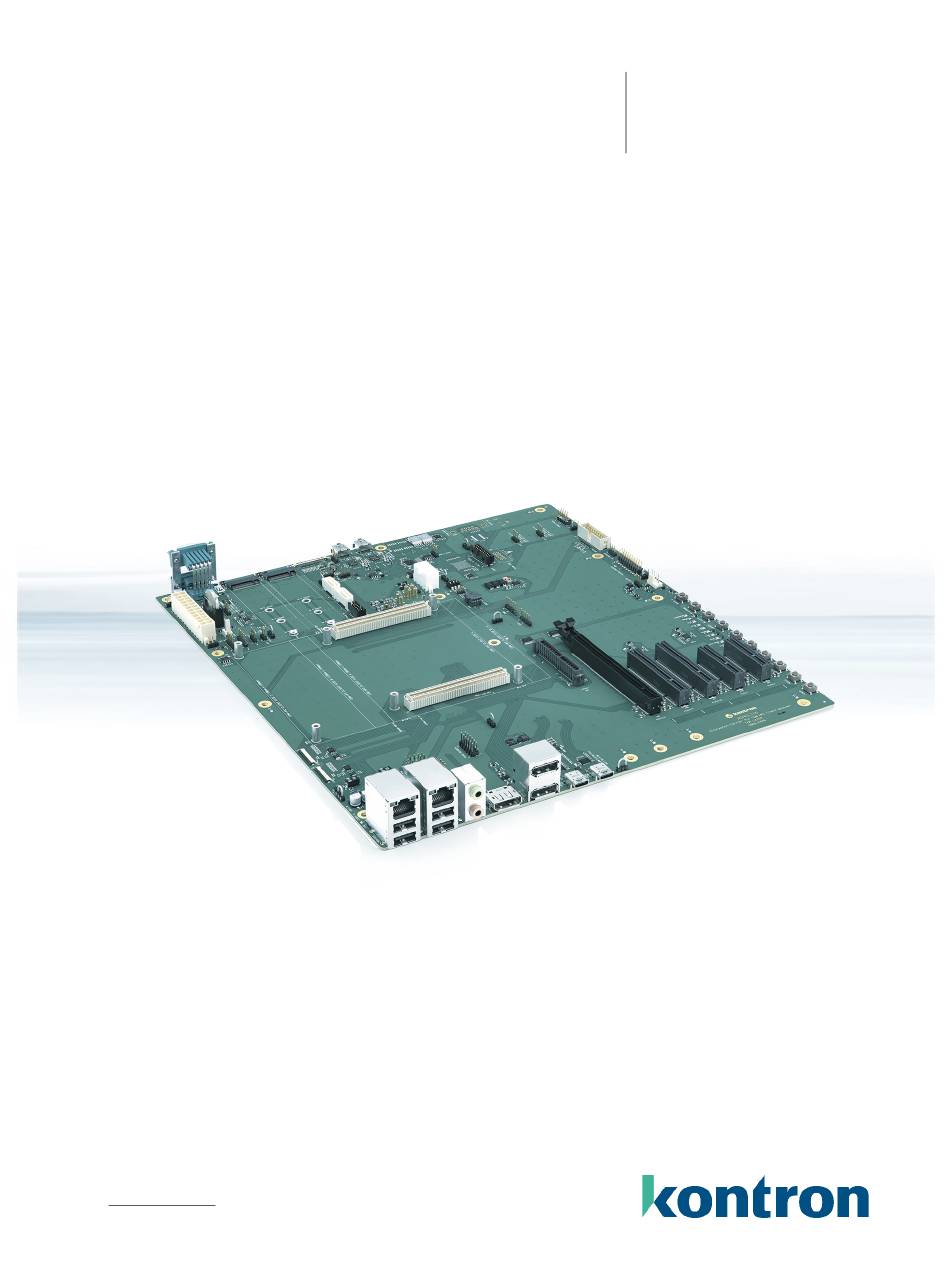

- Page 1 USER GUIDE COM-HPC Client Evaluation Carrier Rev. 0.3 Preliminary Doc. ID: 1070-0149 www.kontron.com // 1...
- Page 2 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary This page has been intentionally left blank www.kontron.com // 2...
- Page 3 Kontron with respect to technical processes described in the user guide or any product characteristics set out in the user guide. Kontron assumes no responsibility or liability for the use of the described product(s), conveys no license or title under any patent, copyright or mask work rights to these products and makes no representations or warranties that these products are free from patent, copyright or mask work right infringement unless otherwise specified.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, “HIGH RISK APPLICATIONS”). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. -
Page 10: List Of Tables

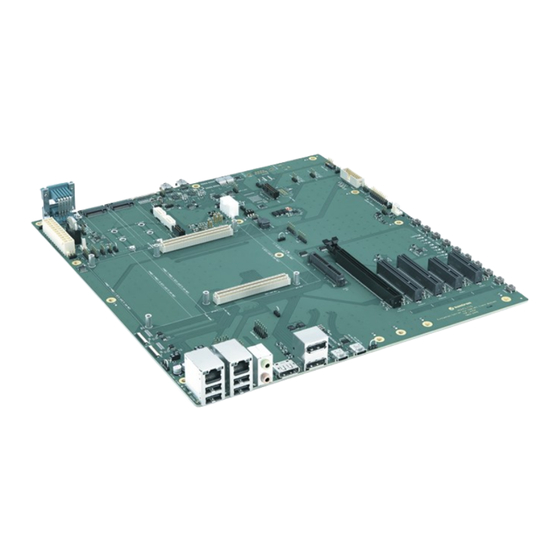

Figure 1: COM-HPC Client Evaluation Carrier (ADHC) ..........................12 Figure 2: Block Diagram COM-HPC Client Evaluation Carrier (ADHC) ..................... 16 Figure 3: Top View of COM-HPC Client Evaluation Carrier (ADHC) ....................17 Figure 4: IOs (front) ......................................18 Figure 5: IOs (back) ......................................19 Figure 6: Board Dimensions .................................. - Page 11 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Figure 8: USB 3.1 Double Connector ................................22 Figure 9: Double COM Ports ..................................23 Figure 10: 10 GB Ethernet Add-in Card Connector ..........................24 Figure 11: SATA 6 GB ......................................26 Figure 12: Fan Connector with 4 pins ................................ 27 Figure 13: Jumper Fan Voltage (J74) ................................
-
Page 12: 1/ Introduction
HPC® modules in ATX form factor. The ADHC will allow more flexibility with respect to the 10 GbE configurations. Main purpose of this carrier board is to bring out all the signals from COM-HPC® connector of COMh modules to industry standard interfaces. -
Page 13: Product Naming Clarification
All Kontron COM-HPC® extended, basic and compact modules contain two 2x 100pin connectors; each of it has two rows called Row A & B on primary connector and Row C & D on secondary connector. The COM-HPC® Computer-On- Module (COM) features the following maximum amount of interfaces according to the PCI Industrial Computer Manufacturers Group (PICMG) module Pin-out type. -
Page 14: Com-Hpc® Documentation
COM-HPC® modules are compact and highly integrated computers. All modules feature a standardized form factor and connector layout which carry a specified set of signals. Each COM is based on the COM-HPC® specification. This standardization allows designers to create a single-system baseboard that can accept present and future COM-HPC®... -
Page 15: 2/ System Specifications
2/ System specifications 2.1. Component Main Data The table below summarizes the features of the motherboard. Table 2: Component Main Data COM-HPC Client Evaluation Carrier (ADHC) Size D and E Dimensions 305 mm x 330 mm (E-ATX) Ethernet 1x RJ45 – max. 10G-BASE-T, 8x SFP28 cages via 2x Intel C827-IM PCI Express®... -
Page 16: Block Diagram
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 2.3. Block diagram Figure 2: Block Diagram COM-HPC Client Evaluation Carrier (ADHC) www.kontron.com // 16... -
Page 17: 3/ Mainboard Views
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 3/ Mainboard Views 3.1. Top View Figure 3: Top View of COM-HPC Client Evaluation Carrier (ADHC) Front Panel (J11) Fan (J47) GPIO (J3) 10x Button Switches (J32) AC Present (J24) PCIe x4 (J89, J90) -
Page 18: Ios
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary PCIe x16 (J93) 24. 2x M.2 (J85, J86) 10. FUSA Header (J116) 25. EDP (J10) 11. HDA Header (J115) 26. 2x SATA (J87, J88) 12. Switch (SW12) 27. GP SPI (J10) 13. 2x CSI0, CSI1 (J108, J109) 28. -
Page 19: Figure 5: Ios (Back)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Figure 5: IOs (back) 46. 2x USB Type-C (J98, J99) 47. 2x COM ports (J94) www.kontron.com // 19... -
Page 20: 4/ Mechanical Specification
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 4/ Mechanical Specification 4.1. Dimensions The dimensions of the carrier board are 305.0 mm x 330.0 mm. Figure 6: Board Dimensions www.kontron.com // 20... -
Page 21: 5/ Interfaces And Connectors
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5/ Interfaces and Connectors 5.1. 1 GB Ethernet Connector (J102, J103) Figure 7: 1 GB Ethernet Connector Table 4: 1 GB Ethernet Connector Signal Name CT_MDI1 GBE0_MDI1- GBE0_MDI1+ GBE0_MDI2+ GBE0_MDI2- CT_MDI2 CT_MDI0 GBE0_MDI0+... -
Page 22: Usb 3.1 Double Connector (J102, 103)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.2. USB 3.1 Double Connector (J102, 103) Figure 8: USB 3.1 Double Connector Table 6: USB 3.1 Double Connector Signal Name - J17 Signal Name - J18 V_5V0_M_USB1_CONN V_5V0_M_USB3_CONN USB20_D1_CONN- USB20_D3_CONN- USB20_D1_CONN+ USB20_D3_CONN+... -
Page 23: Com Ports (J94)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.3. COM Ports (J94) Figure 9: Double COM Ports Bottom Table 7: Double COM Ports Signal Name SER0_RX_RS M0 SER0_TX_RS232_COM0 SER1_RX_RS232_COM0 SER1_TX_RS232_COM0 www.kontron.com // 23... -
Page 24: Ethernet Add-In Card Connector (J7)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.4. 10 GB Ethernet Add-in Card Connector (J7) The carrier board contains 10 GB Ethernet connector that supports copper and optical 10 GB interface via extended cards. Figure 10: 10 GB Ethernet Add-in Card Connector... - Page 25 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Signal Name Signal Name 10G_KR_RX2+ 10G_KR_RX2- 10G_SFP_SCL2 10G_KR_TX2- 10G_PHY_RST_23 10G_KR_TX2+ V_5V0_S5 V_5V0_S5 10G_PHY_RST_01 10G_PHY_CAP_23 10G_INT1 10G_INT3 10G_SDP1 10G_SDP3 10G_PHY_MDC_SCL1 10G_PHY_MDC_SCL3 10G_PHY_MDIO_SDA1 10G_PHY_MDIO_SDA3 10G_INT0 10G_INT2 10G_SDP0 10G_SDP2 10G_PHY_MDC_SCL0 10G_PHY_MDC_SCL2 10G_PHY_MDIO_SDA0 10G_PHY_MDIO_SDA2 www.kontron.com // 25...
-
Page 26: Sata 6 Gb (J87, J88)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.5. SATA 6 GB (J87, J88) Figure 11: SATA 6 GB Table 9: SATA 6 GB Connector Signal Name - J15 Signal Name – J16 SATA0_TX+ SATA1_TX+ SATA0_TX- SATA1_TX- SATA0_RX+ SATA1_RX+ SATA0_RX- SATA1_RX- 5.6. -
Page 27: Fan Connector (J47)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.7. Fan Connector (J47) Figure 12: Fan Connector with 4 pins Table 11: Fan Connector Description V_FAN FAN_TACH_CON FAN_PWM_CON Figure 13: Jumper Fan Voltage (J74) Table 12: Jumper for 5V/12V Fan Selection (J74) -
Page 28: Bios Flash Socket (J19)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.8. BIOS Flash Socket (J19) Figure 14: BIOS Flash Socket Table 13: BIOS Flash Socket Pinout Signal Signal SPI_CS# SPI_MOSI_R SPI_MISO_R SPI_CLK_R SPI_WP# SPI_HOLD# SPI_VCC 5.9. ESPI Connector (J4) Figure 15: ESPI Connector... -
Page 29: Gpio - General Purpose Input And Output (J3)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.10. GPIO - General Purpose Input and Output (J3) The COM-HPC Client Evaluation Carrier offers 20 pins. Figure 16: GPIO Header Table 15: GPIO Header with 20 pins Signal Name V_1V8_S5 V_3V3_S5 GPIO_00_J... -
Page 30: Ipmb Header (J4)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.11. IPMB Header (J4) Figure 17: IPMB Header Table 16: Pinning IPMB Header Description V_3V3_S5 IPMB_DAT IPMB _CLK 5.12. Miscellaneous (J26) Figure 18: Miscellaneous Table 17: Miscellaneous Header Signal Name Signal Name V_3V3_S5... -
Page 31: Front Panel Header (J11)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.13. Front Panel Header (J11) Figure 19: Front Panel Connector Table 18: Front Panel Header Signal Name SATA_LED+ POWER_LED+ SATA_ACT# SW_PWRBTN# SYS_RESET_R# V_5V0_S0 5.14. I2C (J6) The I2C Interface supports clock from 127 Hz to 400 kHz (limited by on board devices and capacitive loading) and can be configured in Setup. -
Page 32: Smbus (J5)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.15. SMBus (J5) Figure 21: SMBus header Table 20: SMBus Header (J52) Description V_V3V_S5 SMB_DAT SMB_CLK SMB_ALERT# www.kontron.com // 32... -
Page 33: Atx Power Connector (J16)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.16. ATX Power connector (J16) Figure 22: ATX Power connector with 24 pins Table 21: ATX Power connector with 24 pins Signal 3,3 V 3,3 V PWR_OK 5 VSB 12 V 12 V... -
Page 34: Atx Power Connector (J17)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.17. ATX Power connector (J17) Figure 23: ATX Power connector with 8 pins Table 22: ATX Power connector with 8 pins Signal +12 V +12 V +12 V +12 V 5.18. RTC Socket (J21) -
Page 35: Bios Select Switch (Tbd)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 5.19. BIOS Select Switch (TBD) 5.20. Button Switches (TBD) Figure 25: Button Switches Rapid shutdown requires disconnecting V_WIDE_S0_MOD and V_5V0_S5_MOD rails externally. 5.21. M.2 Key-M Socket with Spacer (J85, J86 TBD) 5.22. Jumper (TBD) www.kontron.com... -
Page 36: 6/ Electrical Specification
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 6/ Electrical Specification 6.1. Supply Voltage one ATX Main Power 24pin Power supply for the module: the ATX_12V P4 connector provides a wide range of input, depending on module specification. 6.2. Power Supply Rise time ... -
Page 37: Figure 26: Power Diagram
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Figure 26: Power Diagram www.kontron.com // 37... -
Page 38: 7/ Features (Tbd)
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 7/ Features (TBD) 7.1. LEDs and Indicators (TBD) www.kontron.com // 38... -
Page 39: 8/ Com-Hpc Connector Pin-Out List
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 8/ COM-HPC Connector Pin-out List To protect external power lines of peripheral devices, make sure that: the wires have the right diameter to withstand the maximum available current the enclosure of the peripheral device fulfills the fire-protection requirements of IEC/EN60950. -
Page 40: Table 24: Pin-Out List Connector J1
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Table 24: Pin-out List Connector J1 Row A Row B Row C Row D PWRBTN# RSTBTN# THERMTRIP# CARRIER_HOT# TAMPER# VIN_PWROK SUS_S3# SUS_S4_S5# WD_STROBE# WAKE0# BATLOW# WD_OUT FAN_PWMOUT WAKE1# PLTRST# FAN_TACHIN USB5- USB1- USB7-... - Page 41 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Row A Row B Row C Row D eDP_TX1+ USB1_SSRX1+ USB0_AUX- USB0_SSTX0- eDP_TX2- USB0_AUX+ USB0_SSRX0- USB0_SSTX0+ eDP_TX2+ LID# USB0_SSRX0+ SLEEP# USB0_SSTX1- eDP_TX3- VCC_BOOT_SPI USB0_SSRX1- USB0_SSTX1+ eDP_TX3+ BOOT_SPI_CS# USB0_SSRX1+ BSEL0 SATA0_RX- eSPI_IO0 BSEL1 BOOT_SPI_IO0...
-
Page 42: Table 25: Pin-Out List Connector J2
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Row A Row B Row C Row D PCIe15_TX- PCIe15_RX+ PCIe07_RX- PCIe07_TX+ PCIe15_TX+ PCIe07_RX+ TEST# NBASET0_MDI0- VCC_RTC RSMRST_OUT# SMB_CLK NBASET0_MDI0+ SUS_CLK UART1_TX SMB_DAT GPIO_00 UART1_RX SMB_ALERT# NBASET0_MDI1- GPIO_01 UART1_RTS# UART0_TX NBASET0_MDI1+ GPIO_02 UART1_CTS#... - Page 43 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Row E Row F Row G Row H PCIe32_TX- PCIe32_RX+ PCIe40_RX- PCIe40_TX+ PCIe32_TX+ PCIe40_RX+ PCIe33_RX- PCIe41_TX- PCIe33_TX- PCIe33_RX+ PCIe41_RX- PCIe41_TX+ PCIe33_TX+ PCIe41_RX+ PCIe34_RX- PCIe42_TX- PCIe34_TX- PCIe34_RX+ PCIe42_RX- PCIe42_TX+ PCIe34_TX+ PCIe42_RX+ PCIe35_RX- PCIe43_TX- PCIe35_TX-...
- Page 44 COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary Row E Row F Row G Row H PCIe22_TX- PCIe22_RX+ PCIe30_RX- PCIe30_TX+ PCIe22_TX+ PCIe30_RX+ PCIe23_RX- PCIe31_TX- PCIe23_TX- PCIe23_RX+ PCIe31_RX- PCIe31_TX+ PCIe23_TX+ PCIe31_RX+ RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD RSVD NBASET1_MDI0- CSI1_RX0-...
-
Page 45: 9/ Technical Support
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary 9/ Technical Support For technical support contact our Support department: E-mail: support@kontron.com Phone: +49-821-4086-888 Make sure you have the following information available when you call: Product ID Number (PN), Serial Number (SN) The serial number can be found on the Type Label, located on the product’s rear side. -
Page 46: Returning Defective Merchandise
Visit the RMA Information website: https://www.kontron.com/en/support/rma-information Download the RMA Request sheet for Kontron Europe GmbH and fill out the form. Take care to include a short detailed description of the observed problem or failure and to include the product identification Information (Name of product, Product number and Serial number). -
Page 47: 10/ List Of Acronyms
COM-HPC Client Evaluation Carrier- Rev. 0.3 Preliminary List of Acronyms ACPI Advanced Configuration & Power Interface COM-HPC COM-HPC® - Computer on Module Express ElectroMagnetic Compatibility IPMB Intelligent Platform Management Bus Management Engine NC-SI Network controller sideband interface PCIe PCI-Express PICMG... -
Page 48: About Kontron
About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT). Kontron offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services. With its standard and customized products based on highly reliable state-of-the-art technologies, Kontron provides secure and innovative applications for a wide variety of industries.
