Installing Power Modules
① Wear an ESD wrist strap. Ensure that the strap is in good contact with your wrist and is reliably
grounded.
② Take out a power module from the package and verify that it is the required model.
③ Determine in which slot to install the power module. Face the power module slot during the
operation.
④ Hold the power module with the top side facing up. (Because of the structural design of the power
module slot and the power module, the power module will not be inserted into the slot when it is
upside down.) Hold the handle of the power module with one hand and support its bottom with the

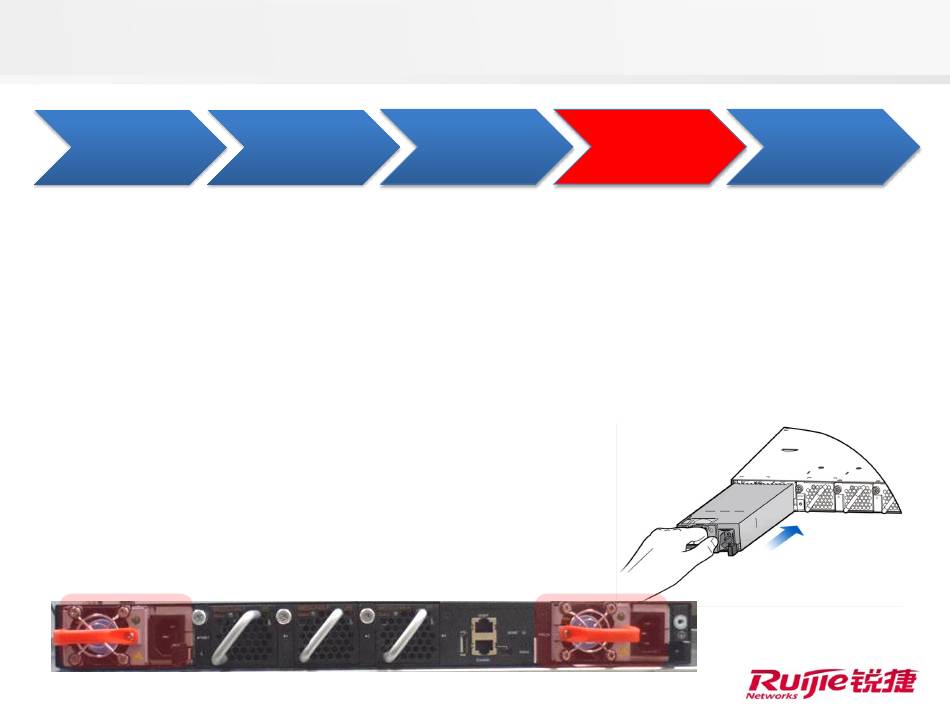

other hand. Push the power module into the slot along the slide rails, as shown in the figure. When
you hear a click, the power module is securely seated in the slot.
Note: Power modules are hot swappable. The switch can
operate normally with a single power module.
