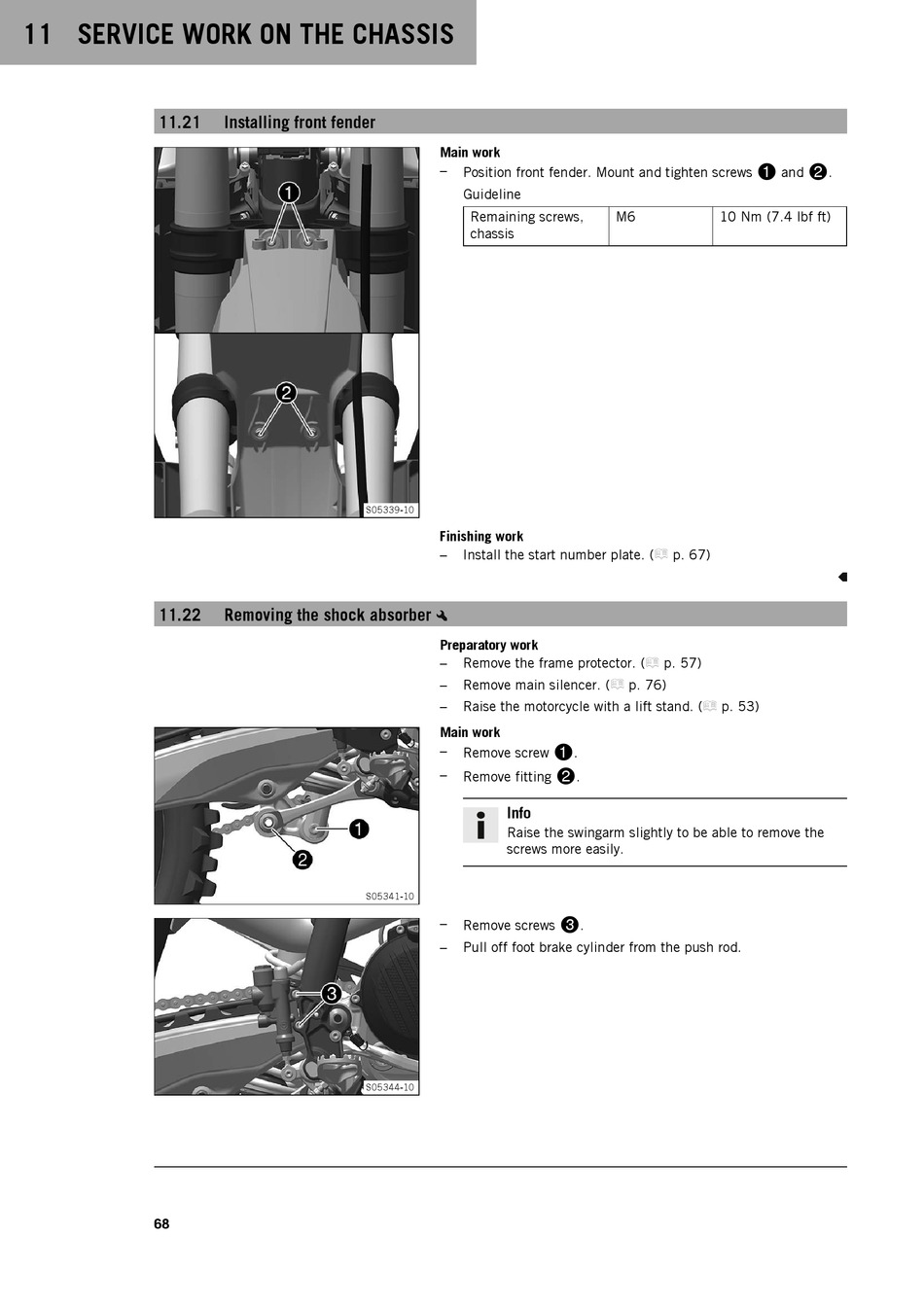

11 SERVICE WORK ON THE CHASSIS
11.21
11.22
68

Installing front fender

S05339-10

Removing the shock absorber

S05341-10
S05344-10
Main work
–
Position front fender. Mount and tighten screws
Guideline
Remaining screws,
chassis
Finishing work
–
Install the start number plate. (
Preparatory work
–
Remove the frame protector. (
–
Remove main silencer. (
–
Raise the motorcycle with a lift stand. (
Main work
–
1
Remove screw .
–
2
Remove fitting .
Info
Raise the swingarm slightly to be able to remove the
screws more easily.
–
3
Remove screws .
–
Pull off foot brake cylinder from the push rod.
1
and
M6 10 Nm (7.4 lbf ft)
p. 67)
p. 57)
p. 76)
p. 53)
2
.
