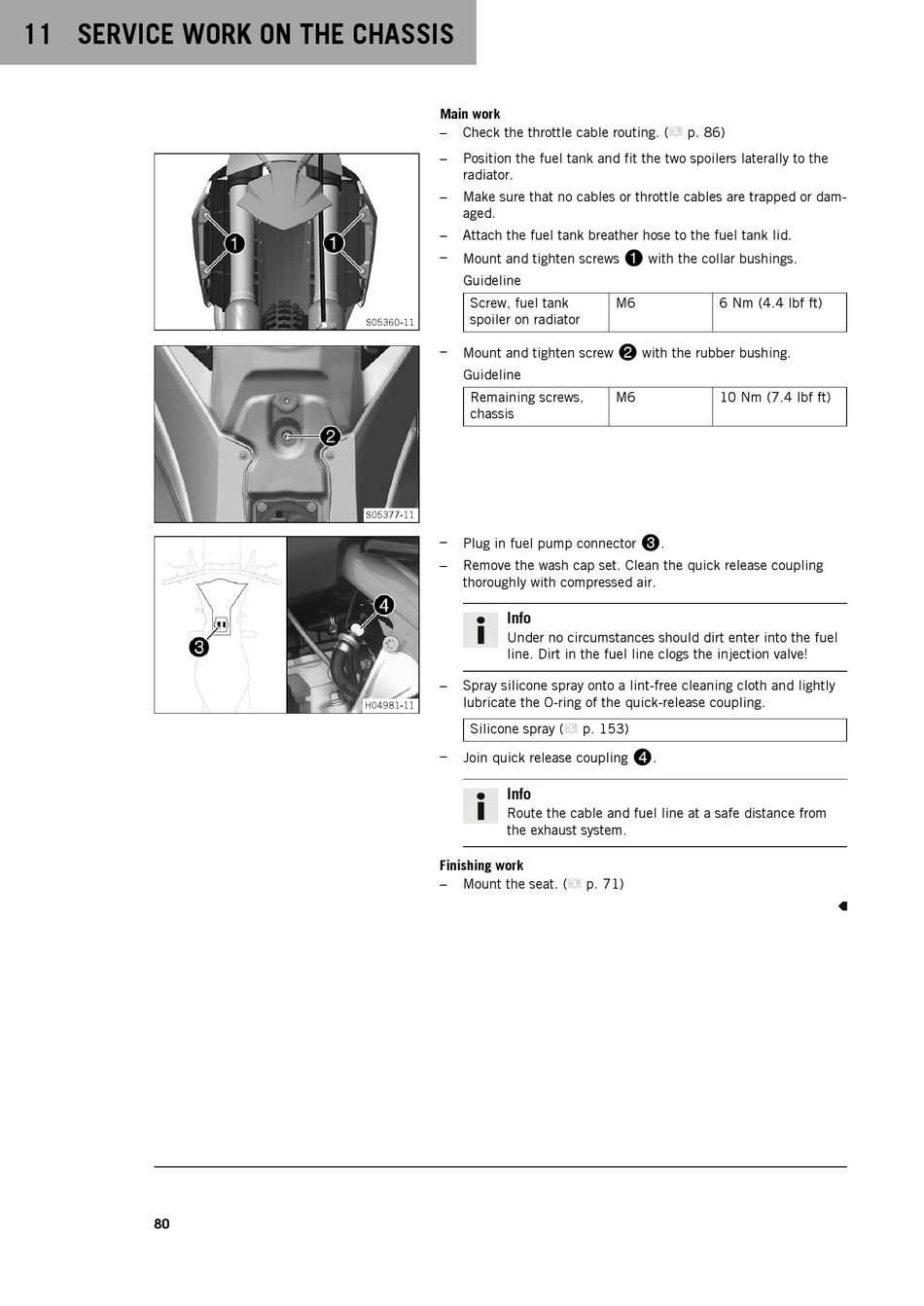

KTM 350 SX-F 2023 Owner's Manual page 82

11 SERVICE WORK ON THE CHASSIS
80
Main work
–
Check the throttle cable routing. (
–
Position the fuel tank and fit the two spoilers laterally to the
radiator.
–
Make sure that no cables or throttle cables are trapped or dam-
aged.
–
Attach the fuel tank breather hose to the fuel tank lid.
–
Mount and tighten screws
Guideline
Screw, fuel tank
spoiler on radiator
S05360-11
–
Mount and tighten screw
Guideline
Remaining screws,
chassis
S05377-11
–
Plug in fuel pump connector
–
Remove the wash cap set. Clean the quick release coupling
thoroughly with compressed air.
Info
Under no circumstances should dirt enter into the fuel
line. Dirt in the fuel line clogs the injection valve!
–
Spray silicone spray onto a lint-free cleaning cloth and lightly
lubricate the O-ring of the quick-release coupling.
H04981-11
Silicone spray (
–
Join quick release coupling
Info
Route the cable and fuel line at a safe distance from
the exhaust system.
Finishing work
–
Mount the seat. (
p. 86)
1
with the collar bushings.
M6 6 Nm (4.4 lbf ft)
2
with the rubber bushing.
M6 10 Nm (7.4 lbf ft)
3
.
p. 153)
4
.
p. 71)
