Fri-Jado GO Combi Mounting Instruction

Changing oven door opening direction
Hide thumbs Also See for GO Combi:
Table of Contents

Advertisement

Quick Links

Download this manual
GO Combi
Mounting instruction
Changing oven door opening direction
EN (Original Instruction)
Revision 03/2023, SW: 0.5.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GO Combi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fri-Jado GO Combi

Summary of Contents for Fri-Jado GO Combi

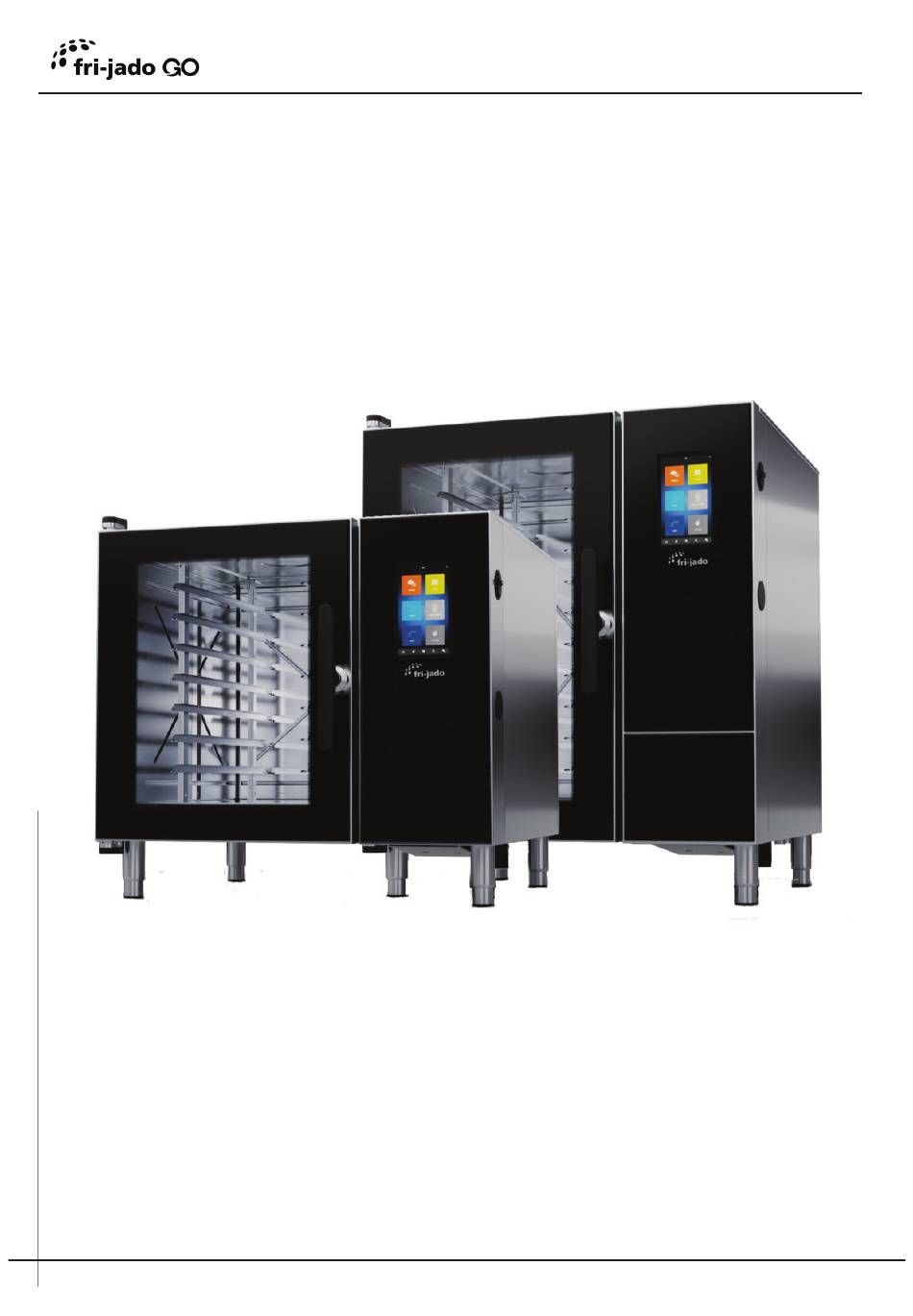

  • Page 1 GO Combi Mounting instruction Changing oven door opening direction EN (Original Instruction) Revision 03/2023, SW: 0.5.9...
  • Page 2 GO Combi...

  • Page 3: Table Of Contents

    Changing the door opening direction Dismounting the oven door ..............8 Mounting the oven door ..............12 Calibrating the oven door ..............17 Change the oven light ..............19 Testing the oven ................19 GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...

  • Page 4: General Information

    GO Combi General information Target group This document is aimed at service technicians who have been trained in installing and servicing the oven. The oven must only be installed and serviced by qualified service technicians. Technical changes This document is subject to changes without notice.

  • Page 5: Safety Information

    All maintenance and repair must be carried out by qualified installation and service technicians only. Installation and/or service by others than qualified service technicians may result in injury to the operator and/or damage to the oven. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...

  • Page 6: Before Replacement

    GO Combi Before replacement • Make sure the required tools are available. • Unpack the spare parts and check if all parts are available. • Make sure the working area is tidied up, clean and safe to prevent personal injury and damage to the equipment.

  • Page 7: Oven Overview

    GO Combi Oven overview Oven door with door mounted on the left-hand side Oven door with door mounted on the right-hand side GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...

  • Page 8: Changing The Door Opening Direction

    GO Combi Changing the door opening direction IMPORTANT! All screws must be fastened with Loctite AS-43 WM. Dismounting the oven door Remove the cover from the upper and lower door hinge. Open the oven door and loosen the inner and middle glass.
  • Page 9 Press on the connector to loosen the wires using a small fl at slotted screwdriver. Pull out the wires. Fasten the inner and middle glass on the oven door. Remove the two screws, the bracket and the drain of the drip tray. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...
  • Page 10 GO Combi Remove the two screws and the drip tray 10. Loosen the wires for the LED fixture. 11. Remove the screws from the upper door hinge. IMPORTANT! Be careful as the door is no longer fastened and might be heavy.
  • Page 11 GO Combi 13. Turn the pins upside down. 14. Turn the door upside down. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...

  • Page 12: Mounting The Oven Door

    GO Combi Mounting the oven door Remove the six screws in the cavity frame. Remove the six hexagon socket spanner screws from the upper and lower door hinge. Pull out the wires for the door light.
  • Page 13 Mount the catch on the left-hand side of the oven cavity frame. Switch around the door hinges - the lower hinge to the top and the upper hinge to the bottom. 10. Mount the three screws on the lower hinge. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...
  • Page 14 GO Combi 11. Mount the two nuts on the upper hinge while holding the door. 12. Mount the door. 13. Open the oven door and open the inner and middle glasses.
  • Page 15 18. Mount the LED light with the wires pointing upwards. 19. Lead the wires through the upper silicone plug. 20. Fasten the wires in the terminal block. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...
  • Page 16 GO Combi 21. Mount the terminal block on the upper rack. 22. Fasten the upper bracket with the two screws. 23. Fasten the inner and middle glasses on the oven door. 24. Mount the hinge covers.

  • Page 17: Calibrating The Oven Door

    Touch “Settings”. Touch “Oven setup” Touch “Calibration”. Touch “Calibrate operator door”. Touch “Start calibration”. Follow the steps in the sequence guide on the display. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...
  • Page 18 GO Combi Calibrating the service door This section is only relevant on PassThrough oven. Close both the operator door and service door. Touch “Settings”. Touch “Oven setup” Touch “Calibration”. Touch “Calibrate service door”. Touch “Start calibration”. Follow the steps in the sequence guide on the display.

  • Page 19: Change The Oven Light

    Run the oven in steam mode to assure that the oven door fi t tightly to the gasket. If no steam is escaping the oven from the oven door, the oven door is mounted correctly. GO Combi mounting instruction, revision 03/2023, SW: 0.5.9...
  • Page 20 GO Combi Fri-Jado B.V. Fri-Jado France LLC Fri-Jado UK Ltd. Fri-Jado Inc. Blauwhekken 2 31 Parc du Golf – CS 90519 Ashley House 1401 Davey Road 4751 XD Oud Gastel 350 Avenue JRGG de la Lauzière Ashley Road UB8 2GA...
