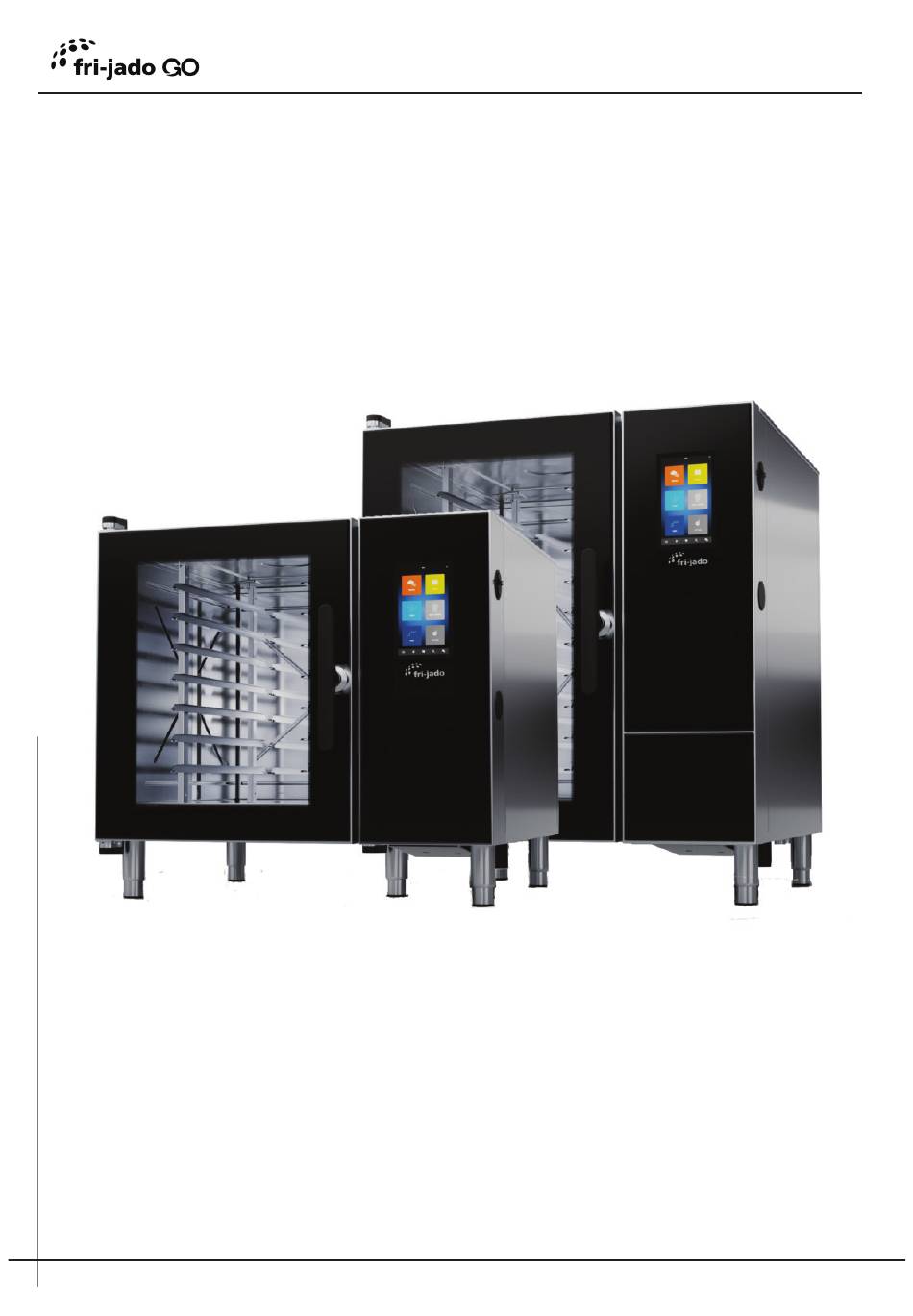

- Page 1 GO Combi Mounting instruction Mounting the condensation hood EN (Original Instruction) Revision 09/2023, SW: 0.7.9...
- Page 2 GO Combi...
-
Page 3: Table Of Contents
..................... 6 Spare parts ..................6 Estimated working time ..............6 Condensation hood overview Mounting the condensation hood Mechanical installation ............... 8 Electrical installation ................. 11 Testing the condensation hood ............13 GO Combi mounting instruction, revision 09/2023, SW: 0.7.9... -
Page 4: General Information
GO Combi General information Target group This document is aimed at service technicians who have been trained in installing and servicing the oven. The oven must only be installed and serviced by qualified service technicians. Technical changes This document is subject to changes without notice. -
Page 5: Safety Information
All maintenance and repair must be carried out by qualified installation and service technicians only. Installation and/or service by others than qualified service technicians may result in injury to the operator and/or damage to the oven. GO Combi mounting instruction, revision 09/2023, SW: 0.7.9... -
Page 6: Before Replacement
GO Combi Before replacement • Make sure the required tools are available. • Unpack the spare parts and check if all parts are available. • Make sure the working area is tidied up, clean and safe to prevent personal injury and damage to the equipment. -
Page 7: Condensation Hood Overview
GO Combi Condensation hood overview Condensation hood for standard ovens Condensation hood for PassThrough ovens Condensation hood for Stacking kit ovens Condensation hood for Stackit PassThrough ovens GO Combi mounting instruction, revision 09/2023, SW: 0.7.9... -
Page 8: Mounting The Condensation Hood
GO Combi Mounting the condensation hood Mechanical installation The distance from the condensation to the ceiling must be IMPORTANT! minimum 300 mm. Drill out the centre marks in the oven roof in the marked areas using a Ø4.7 drill and a M5 threaded tap. - Page 9 GO Combi Remove the front. Remove the six M5x10 screws on the left-hand side. Remove the side plate on the left-hand side. Remove the six M5x10 screws on the right-hand side. GO Combi mounting instruction, revision 09/2023, SW: 0.7.9...
- Page 10 GO Combi Remove the side plate on the right-hand side. Fasten the condensation hood with four M5x10 screws.
-
Page 11: Electrical Installation
Lead the wire down the back side of the oven. Fasten the wire with cable ties. Remove the side plate. Lead the wire under the oven and up through the hole for Ethernet connection. GO Combi mounting instruction, revision 09/2023, SW: 0.7.9... - Page 12 GO Combi Lead the wire to the IO board on the front panel. Connect the wire to the IO board on J1. Put the three-pin plug into the socket. Switch on power. Default View 1 Connection of gas burners IO board LEDs...
-
Page 13: Testing The Condensation Hood
GO Combi Testing the condensation hood Go to “Settings” in the home screen menu. Log in as “Technician”. Touch “Oven setup” GO Combi mounting instruction, revision 09/2023, SW: 0.7.9... - Page 14 GO Combi Touch “Test functions”. Touch “Other tests”. Touch “Main contactor”. Touch “External vent”.
- Page 15 GO Combi This page is intentionally left blank GO Combi mounting instruction, revision 09/2023, SW: 0.7.9...
- Page 16 GO Combi Fri-Jado B.V. Fri-Jado France LLC Fri-Jado UK Ltd. Fri-Jado Inc. Blauwhekken 2 31 Parc du Golf – CS 90519 Ashley House 1401 Davey Road 4751 XD Oud Gastel 350 Avenue JRGG de la Lauzière Ashley Road UB8 2GA...
