- Page 1 USER MANUAL Multi Deck Display WARNING Read the instructions before using the machine. EN (Original Instruction) 9124660 / 2203...
- Page 2 KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
Installation and positioning ....................10 3.2.1 Applying price rail ...................... 10 Repositioning the glass shelves ..................10 Installation air blockers MDD ..................10 First use .......................... 11 OPERATION AND USE ....................12 Operating ........................13 CLEANING AND MAINTENANCE ................. 15 Maintenance schedule .................... -
Page 4: Introduction
INTRODUCTION General This manual is intended for the user of the MDD (Multi Deck Display). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. -
Page 5: Safety Instructions
Safety instructions WARNING The outside and shelves of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 10 kg (22 lbs.). WARNING See installation instructions for grounding requirements. WARNING Always use the brakes on both front wheels: 1.4.1 General The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and... -
Page 6: Moving (When Applicable)
1.4.2 Moving (when applicable) When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket. • Remove pans containing a liquid product from the unit. • Always keep the unit in upright position. •... -
Page 7: Storage
Storage If the unit will not be used temporarily, and will be stored, follow these instructions: • Clean the unit thoroughly. • Wrap the unit from getting dusty. • Store the unit in a dry, non-condensing environment. • Ensure good ventilation. Disposal Dispose of the machine, any components or lubricants removed from it safely in accordance with all local and national safety and environment requirements. -

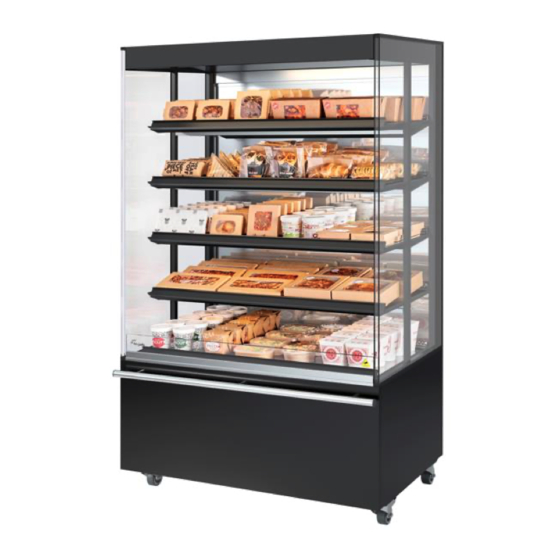

Page 8: Description Of The Unit
(104 ºF and 158 ºF). One LED-module per level provides for lighting of the products. The LED- lighting and the heating are switched on and off separately. There are two MDD user variants; a solid back version and a pass through version which allows the user to (re)fill products via the back side. -
Page 9: Installation And First Use
Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit The MDD is placed inside a crate during transport. Remove the top crate pane and foam. -
Page 10: Installation And Positioning
Installation air blockers MDD It is important that the air blockers will be installed on the shelves. Because without the air blockers the performance of the MDD cannot be guaranteed! The installation of the air blockers is shown on the next page. -
Page 11: First Use
Installation air blockers MDD There are 4 types of air blockers which need to be installed according the next steps: 1. Mount the air blockers under the shelfs at the 4 positions. 2. Mount air blocker 1 and 2 on the right hand side of the shelf with 4 screws (hand tight). -
Page 12: Operation And Use
If you need any assistance in determining the best setup for your hot food-to-go offering (such as temperature setpoint, packaging and accessories), please contact Fri-Jado. MDD-60 models only: Always switch on two adjacent shelves to achieve the desired temperature. 12/24... -
Page 13: Operating
Temperature controller Power on/off button* UP-button DOWN-button SET, SET-button Image for reference only. * Switch on/off: hold for several sec. Operating The unit is set at 65 ºC (149 ºF) intake air temperature. If required this temperature can be adjusted. At an ambient temperature of 20 ºC (68 ºF) and an initial core temperature of 85 ºC (185 ºF) these factory settings of the unit’s temperature ensure a constant core temperature of at least 63 ºC (145.5 ºF) for 4 hours. - Page 14 Adjusting the SET Temperature • During operation the display of the thermostat shows the temperature in the unit. • Push once on the SET-button. The set temperature will appear on the display. • Push the UP and DOWN button within 15 sec. •...
-
Page 15: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Appliances must be disconnected from their power supply during cleaning or maintenance and when replacing parts. Because of hygiene aspects and optimum condition of the unit it is of utmost... -
Page 16: Cleaning Glass Panes
Cleaning Glass Panes Cleaning the top glass pane (3 level models) Lift and hold the top glass while cleaning the top glass pane. Cleaning the top air guides (3 level models) WARNING Do not use detergents and other cleaning products that may damage polycarbonate. Using inappropriate products to clean may tarnish, scratch or even crack any polycarbonate surfaces. - Page 17 Cleaning the side double-glass pane (all models) • Slide the double glass pane towards the front along the top (A) and bottom (B) guiding rails. The side pane can be removed from the unit once it has slid in its entirety past the top guide.
-
Page 18: Malfunctions And Service
MALFUNCTIONS AND SERVICE Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard. Are all the switches in the correct position? Item Malfunction... -
Page 19: Technical Specifications
TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. European Models Model MDD 60-3 MDD 90-3 MDD 120-3 Approved for Width 600 mm 900 mm... - Page 20 Model MDD 60-5 MDD 90-5 MDD 120-5 Approved for Width 600 mm 900 mm 1200 mm Depth 810 mm 810 mm 810 mm Depth without bumper 750 mm 750 mm 750 mm Height on legs 1975 mm 1975 mm 1975 mm Weight Net Approx.
-
Page 21: American Models
American Models Model MDD 24-3 MDD 36-3 MDD 48-3 Approved for USA / CAN USA / CAN USA / CAN Width 23 5/8 in 35 7/16 in 47 1/4 in Depth 31 7/8 in 31 7/8 in 31 7/8 in... - Page 22 Model MDD 24-5 MDD 36-5 MDD 48-5 Approved for USA / CAN USA / CAN USA / CAN Width 23 5/8 in 35 7/16 in 47 1/4 in Depth 31 7/8 in 31 7/8 in 31 7/8 in Depth without bumper...
- Page 23 Notes. 23/24...
- Page 24 Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 24/24...
