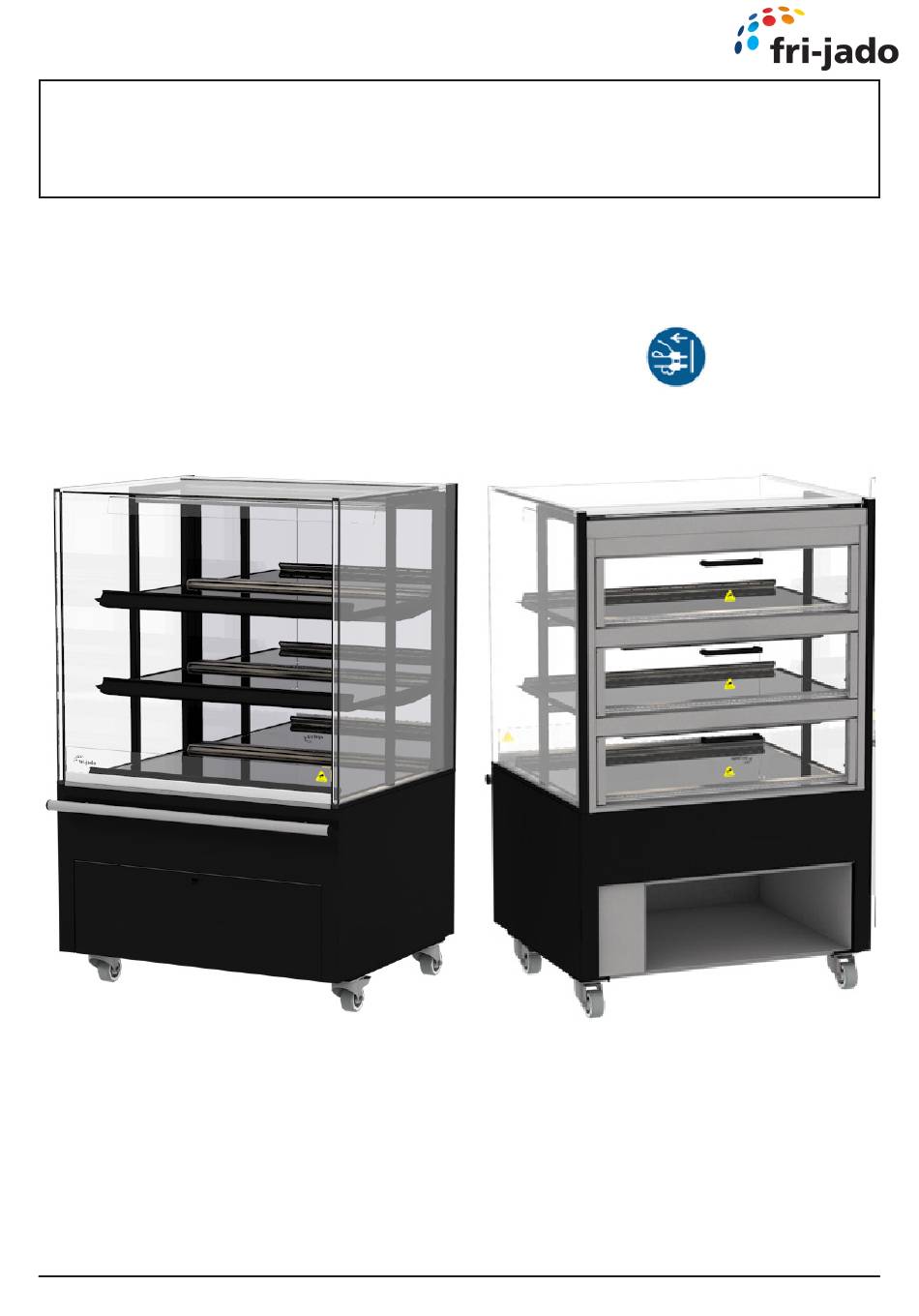

9124722 Service Instruction
Installation front doors MDD-3 level
The technician, working on the unit will be fully responsible for abiding the locally prevailing safety rules and
regulations.
Technical activities must be performed by qualified and authorized persons only.
Before working on any electrical part, or dismantling the unit by means of
using a screwdriver or any other tool, ALWAYS REMOVE THE POWER
PLUG from the main outlet.
9124722 Instruction front doors MDD 3 level
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

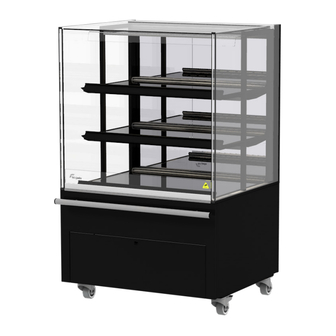

Related Manuals for Fri-Jado MDD-3 60
Summary of Contents for Fri-Jado MDD-3 60
- Page 1 9124722 Service Instruction Installation front doors MDD-3 level The technician, working on the unit will be fully responsible for abiding the locally prevailing safety rules and regulations. Technical activities must be performed by qualified and authorized persons only. Before working on any electrical part, or dismantling the unit by means of using a screwdriver or any other tool, ALWAYS REMOVE THE POWER PLUG from the main outlet.
- Page 2 Door set 9380369 MDD-3 60 9380370 MDD-3 90 MDD-3 120 9380372 9124722 Instruction front doors MDD 3 level Page 2...
- Page 3 Bottom Depending on variant: With standard under frame: Remove front under frame panel (two screws, one on each bottom corner). Drop-In: Raise the unit at least 30cm from tabletop level in order to access the screws for the child guard. Be careful to support the unit such that no components or connections underneath the base of the unit are damaged while doing so.
- Page 4 Step 2. Remove side glass both sides: Slide the double glass pane towards the front along the top (A) and bottom (B) guiding rails. The side pane can be removed from the unit once it has slid entirety past the top guide. CAUTION: Once past the top guide, the glass pane might fall if not properly held.
- Page 5 Step 6. Remove top column cover by removing last screw. (one each side) Step 7. Place new (longer) top column cover(s)/ window support (two screws). Mount screws in new top column cover Step 8. Replace white (or black) stud removed earlier.
- Page 6 Step 12. Bottom Side Check placing bearing(s) in door(s), one in the top, one at the bottom. Make sure the flange of the bearing sits opposite of the glass. Flange TOP Side Step 13. Place a door on the lower beam, let it stick out of the unit. CAUTION: Be careful not to touch the top beam with the glass door.
- Page 7 ! Step 19. Repeat step 14 till 19 for each front door, depending on MDD variation. Replace top air guide. Fri-Jado B.V. Blauwhekken 2 4751 XD Oud Gastel The Netherlands Tel: +31 (0) 76 50 85 400...
