- Page 1 USER MANUAL Multi Deck Display WARNING Read the instructions before using the machine. EN (Original Instruction) 9124753 / 2212...
- Page 2 KEEP THIS USER MANUAL FOR FUTURE USE © 2022 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ......................4 General ..........................4 Identification of the unit ..................... 4 Pictograms and symbols ....................4 Safety instructions ......................5 1.4.1 General ........................5 1.4.2 Moving (when applicable) .................... 6 1.4.3 Outdoor use restrictions ....................6 Hygiene ..........................6 Service and technical support ................... -
Page 4: Introduction
INTRODUCTION General This manual is intended for the user of the MDD (Multi Deck Display). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. This appliance is intended to be used for commercial applications, for example in kitchens of restaurants, canteens, hospitals and in commercial enterprises such as bakeries, butcheries, etc., but not for continuous mass production of food. -
Page 5: Safety Instructions
Safety instructions WARNING The outside and shelves of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 22 lbs. WARNING See installation instructions for grounding requirements. WARNING Always use the brakes on both front wheels: 1.4.1 General The user of the unit will be fully responsible for abiding the locally prevailing safety- rules and... -
Page 6: Moving (When Applicable)
1.4.2 Moving (when applicable) When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket. • Remove pans containing a liquid product from the unit. • Always keep the unit in upright position. •... -
Page 7: Description Of The Unit

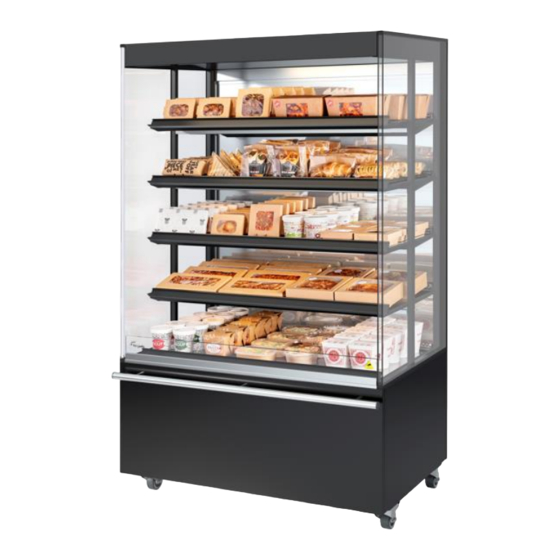

DESCRIPTION OF THE UNIT Technical description The panels are made of galvanized steel plating, stainless steel or aluminum. Some of the visible internal and external parts have been provided with a powder coating. The glass used is tempered. The controls for operating the appliance have been mounted on the operator side of the unit. The product contact parts are made of stainless steel AISI 304 or AISI 430 and tempered glass. -
Page 8: Installation And First Use
INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. Before and during unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. Unpacking the unit 1. -
Page 9: Installation And Positioning
Installation and positioning WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an alternating current provided by a grounded wall socket, with a mains voltage in accordance with the information indicated on the data plate of the appliance. It is the consumer's responsibility to make sure the electrical installation conforms with current national and local codes and wiring regulations. -
Page 10: First Use
Installation air blockers MDD There are 4 types of air blockers which need to be installed according the next steps: 1. Mount the air blockers under the shelfs at the 4 positions. 2. Mount air blocker 1 and 2 on the right hand side of the shelf with 4 screws (hand tight). 3. -
Page 11: Operation And Use
If you need any assistance in determining the best setup for your hot food-to-go offering (such as temperature setpoint, packaging and accessories), please contact Fri-Jado. MDD-60 models only: Always switch on two adjacent shelves to achieve the desired temperature. -
Page 12: Operating
Temperature controller Power on/off button* UP-button DOWN-button SET, SET-button Image for reference only. * Switch on/off: hold for several sec. Operating The unit is set at 149ºF intake air temperature. If required this temperature can be adjusted. At an ambient temperature of 68ºF and an initial core temperature of 185ºF these factory settings of the unit’s temperature ensure a constant core temperature of at least 145.5ºF for 4 hours. - Page 13 Adjusting the SET Temperature • During operation the display of the thermostat shows the temperature in the unit. • Push once on the SET-button. The set temperature will appear on the display. • Push the UP and DOWN button within 15 sec. •...
-
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE WARNING Never use a water hose for cleaning. Water can seep into the unit through the ventilation holes of the unit. Appliances must be disconnected from their power supply during cleaning or maintenance and when replacing parts. Because of hygiene aspects and optimum condition of the unit it is of utmost... -
Page 15: Cleaning Glass Panes
Cleaning Glass Panes Cleaning the top glass pane (3 level models) • Lift and hold the top glass while cleaning the top glass pane. Cleaning the top air guides (3 level models) WARNING Do not use detergents and other cleaning products that may damage polycarbonate. Using inappropriate products to clean may tarnish, scratch or even crack any polycarbonate surfaces. - Page 16 Cleaning the side double-glass pane (all models) • Slide the double glass pane towards the front along the top (A) and bottom (B) guiding rails. The side pane can be removed from the unit once it has slid in its entirety past the top guide.
-
Page 17: Malfunctions And Service
MALFUNCTIONS AND SERVICE Before you consult your dealer or the service agency when there is a fault, you can check the following points yourself: Is the power supply OK? Check the fuses and the earth leakage switch in the meter cupboard. Are all the switches in the correct position? Item Malfunction... -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. The electrical data may vary from country to country. Model MDD 24-3 MDD 36-3 MDD 48-3 Approved for USA / CAN USA / CAN USA / CAN Width 23 5/8 in 35 7/16 in... - Page 19 Model MDD 24-5 MDD 36-5 MDD 48-5 Approved for USA / CAN USA / CAN USA / CAN Width 23 5/8 in 35 7/16 in 47 1/4 in Depth 31 7/8 in 31 7/8 in 31 7/8 in Depth without bumper 29 1/2 in 29 1/2 in 29 1/2 in...
- Page 20 Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 20/20...
