SERVICE MANUAL
MODELS

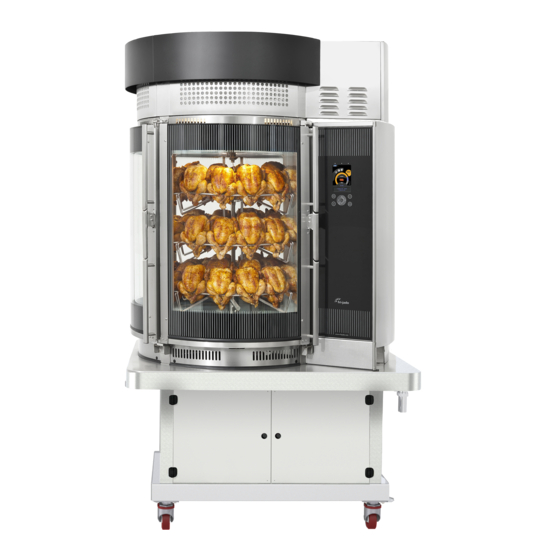

Deli Multisserie with Grease Separator
Deli Multisserie with GS and condensor.
Deli Multisserie with Grease Collector
Deli Multisserie with GC and condensor (shown).
WWW.FRIJADO.COM
DELI MULTISSERIE
This manual is prepared for the use of trained Service Technicians and
should not be used by those not properly qualified. If you have atten-
ded a trianing for this product, you may be qualified to perform all the
procedures in this manual.
This manual is not intended to be all encompassing. If you have not
attended a training for this product, you should read, in its entirety, the
repair procedure you wish to performto determine if you have the ne-
cessary tools, instruments and skills required to perform the procedure.
Procedures for which you do not have the necessary tools, instruments
and skills should be performed by a trained technician.
Reproduction or other use of this Manual, without the express written
consent of Fri-Jado, is prohibited.
- NOTICE -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DELI MULTISSERIE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fri-Jado DELI MULTISSERIE

Summary of Contents for Fri-Jado DELI MULTISSERIE

  • Page 1 Deli Multisserie with Grease Separator Deli Multisserie with GS and condensor. Deli Multisserie with Grease Collector Deli Multisserie with GC and condensor (shown). - NOTICE - This manual is prepared for the use of trained Service Technicians and should not be used by those not properly qualified. If you have atten- ded a trianing for this product, you may be qualified to perform all the procedures in this manual.
  • Page 2 TABLE OF CONTENTS EMPTY PAGE Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 2...

  • Page 3: Table Of Contents

    Saving and loading cookbooks ....................21 Saving and loading parameters ....................21 Saving error history and/or haccp logs ..................22 Default parameters version 3.77 ....................23 Default parameters version 6.00.06 ...................25 Cleaning program Multisserie ....................27 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 3...
  • Page 4 Electrical parts Untill serial number 100107627 .................88 Doors ............................90 Water and steam system ......................92 Blowers and heating ........................94 Rotor drive system ........................96 Drain and vent system .......................98 Soap injection system ......................100 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 4...
  • Page 5 2 of 2 untill serial number 100107627 ............129 Wiring diagram 1 of 2 untill serial number 100107627 ............130 Wiring diagram 2 of 2 untill serial number 100107627 ............131 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 5...

  • Page 6: General Technical Data

    GENERAL TECHNICAL DATA This manual covers the Fri-Jado Deli Multisserie ovens. All of the information, illustrations and specifi- cations contained in this manual are based on the latest product information available at the time of printing. TECHNICAL DATA Type Deli Mts. with GG and Deli Mts.

  • Page 7: Water Requirements

    2 hoses 1,5 mtr (5 ft) G 3/4” - Waterfilter. to G 3/4” 90° angled Warning: all plumbing connections must comply with local sanitary, safety and plumbing codes Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 7 Page 7...
  • Page 8 Filtered water inlet By pass on Zero! By pass on Zero! (Steam & Rinse) G 3/4” Tap water Tap water G 3/4” aerated G 3/4” aerated Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 8...
  • Page 9 GENERAL TECHNICAL DATA EMPTY PAGE Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 9 Page 9...

  • Page 10: Programming Instructions

    -Press 6 seconds for Stop / cancel key test. of program SETTING THE MULTISSERIE Press and hold the On/Off key during 2 seconds. The display lights up and the multis- serie is ON. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 10...

  • Page 11: Add A Program

    OK. Add program by using the dial and confirm with OK. Edit the program name by using the dial and press OK twice to confirm. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 11...

  • Page 12: Add A Program

    Press operate key. Select program with the dial and confirm with OK. When no pre heating is activated, process starts and is indicated by means of a moving yellow circle. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 12...

  • Page 13: Pre Heating

    LOADING WITH PRODUCTS Press rotor key to put the rotor in the good position. Load the multisserie with products Close the door and press the start key. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 13...

  • Page 14: Program Stop

    PROGRAMMING INSTRUCTIONS PROGRAM STOP Press cancel key. Select yes with the dial and confirm with OK. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 14...

  • Page 15: Optional Settings

    OK. Now change the name if necessary and con- firm with OK. Now change time and temperature if neces- sary. Then go to save program and confirm with OK. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 15...
  • Page 16 This pulse is much larger. This mode is used for very delicate products to ensure that the oven cavity is filled up with steam in the first seconds of the cooking 2 minutes process. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 16...

  • Page 17: Delete A Program

    Now select the program and confirm with If you press the OK key during the program you can change the settings. Go to save program and confirm with OK. New settings are now saved. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 17...

  • Page 18: Hidden Possibilities

    Press and hold both keys On/Off and settings until the display light goes out and the rotis- serie is OFF. Since software version 5.02.07, switching OFF can be done with only the On/Off key. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 18...

  • Page 19: The Usb Feature In The 9172552 Board

    SOFTWARE UPGRADE How to read out the software version (firmware). 1. Switch ON the unit. (push 3 sec.) 2. Push the <settings> tab. 3. Select “information” 4. Read out the version Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 19...

  • Page 20: Saving And Loading Files

    Updating systemsoftware (firmware). Only if needed!! This software, supplied by Fri-Jado comes in a “zip” file with the version number of the soft- ware, for example “V5_00_13.zip”. The file needs to be copied on a USB stick. (disk “STORE N GO (F:)”...

  • Page 21: Saving And Loading Cookbooks

    Insert the USB stick in the socket. USB stick Files in folder Push <settings> --> service --> Pincode 4878 PROGRAMS information manager PARAMS service Loading in other unit PARAMS PROGRAMS Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 21...

  • Page 22: Saving Error History And/Or Haccp Logs

    • eh141006 => error history, date October 6th, 2014 • hl 141010 => haccp log , date October 10th, 2014 • These files are placed in one folder, named “LOG” since sw V5.02.07. !! Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 22...

  • Page 23: Default Parameters Version 3.77

    - yes auto off no or 10 - 240 pin code **** read out of the manager pin code Sensor offset 0°C -5°C - +5°C drain feedback yes* no - yes Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 23...
  • Page 24 Energy Volts 1 - 260 Model M_Meat none Water hardness -, 4 - 35 Pressure no - yes I/O test read inputs and set outputs Ignore errors no - yes Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 24...

  • Page 25: Default Parameters Version 6.00.06

    - yes demo mode no - yes temp probe no-yes auto off no or 10 - 240 pin code **** read out of the manager pin code Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 25...
  • Page 26 If both X30-31 and X16-17 are “0” your machine does not have the feedback installed, the “drain feedback” parameter should be “no” **Only visible of “condensor” is put on “yes”. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 26...

  • Page 27: Cleaning Program Multisserie

    RINSE usage 10 ltr/min at 2 bar 1 min. wash arm (optional filtered water) (flowing) 30 liters total drying 4 min., 70°C 0 – 60 min. 5°C - 120°C Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 27...

  • Page 28: Removal And Replacement Of Parts

    Note: In units manufactured before 2009, it might be necessary to remove the nut from the soap mister [450] and push it above the top plate. Reverse the procedure to install. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 28...

  • Page 29: Exchanging The Shaft Seal

    13. Take the hose with the grommet out of the transit hole. 14. Remove the vertical air suction channel. [268] (2 nuts M6 en 2x nut/bolt M5) 15. Unscrew the vane switch assembly [290] (2x M5 serrated bolt) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 29...

  • Page 30: Disassembling The Shaft Transit Spacer

    20. Pull the mountingplate with the spacer out of the hole. 21. Remove the mounting plate from the spacer (3 bolts M5x12). Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 30...

  • Page 31: Assembling The Shaft Transit Spacer

    (this only applies when the old shaft seal was from a previous mo- del) 10. Put the blower motor on its position and place the nuts. Not tight!! (M6 serrated black). Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 31...
  • Page 32 If not, then the blower shaft position is not good. Re- fer to point 11. 21.Mount the seal with the pressure plate [252] and 3 bolts M5x18 [824]. Torque 6Nm. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 32...

  • Page 33: Assembling The Blowers (Continued)

    24.Place the 4 spacers [276] and mount the filter support [275] (4 nuts M6). 25.Place the fat filters [278]. Mount the nut from the soap mister [450] if applicable. 26.Put in the chicken racks and/or meatbas- kets. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 33...
  • Page 34 Example of wire numbers On the inside: 7. Take out the heating element. 8. Take out the gasket. 9. Clean the surface. Reverse the procedure to install. • Take a new gasket! Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 34...
  • Page 35 6. Install the gasket, glass and frame. 7. Before fastening the screws completely, move the glass to the middle of the frame. It is the intension that the glass corners do not touch the edge. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 35...

  • Page 36: Disassembling The Steam Injection Pipes And Joints

    It should be locked up behind the cover plates [559 and 563], see arrow. In case of doubt, lock them with tape or something 10. Remove the top plate. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 36...
  • Page 37 [226] need to be replaced. Note that in case the joints [227] are ok and View from top the pipes need to be replaced, loose clamp rings are available [228]. Loose clamp ring 3500144 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 37...

  • Page 38: Disassembling The Water Valves

    • The direction of the reducer holder. The arrow points to the outlet pipe direction. • The membranes which have a reducer un- derneath, are less high. See pictures. outlet direction Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 38...

  • Page 39: Cleaning Or Renewal Of Water Sprayers

    Put them in as deep as possible but in a 3/8” BSPt 1/2” BSPp on both ends of pipe straight up position as shown. A little leak (drops) is no problem. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 39...

  • Page 40: Exchanging The Side Post Pipe And Sprayers

    100046244 (July 2009) can have the old sprayers with seal ring. These must be replaced by the above mentioned nipple adapter and sprayer. Thoroughly clean the pipe thread and holes in the sidepost !! Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 40...

  • Page 41: Exchanging The Rotor Column And Central Sprayer Pipes

    • Clamp the lock washer with suitable pliers • Mount the horizontal sprayer pipe so that the sprayers point down in a ±25° forward direction as shown. Use teflon tape on the pipe thread. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 41...

  • Page 42: Exchanging The Rotor Motor

    5. Check if the glass controll panel and name panel cannot fall. It should be locked up behind the cover plates [559 and 563], see arrow. In case of doubt, lock them with tape or something. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 42...
  • Page 43 See side view detail. Note that the con- tacts differ in lenght. On the left side, the bottom contact is longer than the top one! On the right side it is shorter! Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 43...

  • Page 44: Exchanging Vent Parts

    Note that this unit has the control panel on the left side!. See emergency switch. 10. Unscrew the top screw and turn out the name plate. 11. Unscrew 2 bolts (metric 8) and take out the drive shaft assembly. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 44...
  • Page 45 [407]. 4 mm 4 mm Adjustment in closed position with mounting plate [408] 1 mm 1 mm Adjustment in open position with bracket [406]. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 45...

  • Page 46: Exchanging The Pt1000 Temperature Sensors

    7. See point 14 below for the wiring. Bottom sensor Bottom sensor Reverse the procedure to mount. Bottom sensor. 8. Unscrew the sensor with a 13mm wrench and take off the sensor protection. 9. Cut the wire. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 46...
  • Page 47 20. Lead the new sensor wires to the board. 20. Clamp female receptacles to the wires. (The “normal” red receptacles 6,3 and 2,8 are also possible. Default Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 47...

  • Page 48: Exchanging The 3 Way Drain Valve

    7. Completely turn the swivel loose and take out the assembly. It is now possible to disassemble the assem- bly. Reverse the procedure to mount the drain valve assembly. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 48...
  • Page 49 The indication arrow will turn counter clockwise (ccw) while the valve will turn cw. In this position, there will be 230V bet- ween wire 1 and 6. (feedback signal) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 49...

  • Page 50: Exchanging The Emergency Switch

    4. Push up the lever of the contact and take out the contact. Repeat this for the other contact. 5. Loosen the nut and take out the knob. Overview Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 50...

  • Page 51: Exchanging The Doorswitches

    “B”, it is advised to update to situa- Improved with tion “C” with help of the 90° bush. 90° bush! Necessary parts (3x) 9192347 - 90° bush 9191049 - Set screw M5x5 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 51...

  • Page 52: Exchanging The Doors And Door Parts

    • Loosen the bolts of the top hinge of the left door, slide the hinge to the right as far as possible and fasten the bolts again. • Do the same with the bottom hinge. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 52...
  • Page 53 < 1 mm 0 mm !! 2. Check if the 2 bolts on the hinge side are tighened. 3. Repeat #1 and 2 for the bolts of the mag- net holder . Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 53...
  • Page 54 Check / tighten the screws of the fixed door- handles. Put some tissue behind the drive plate to ease the mounting and then slide the latch rod in front of it. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 54...
  • Page 55 6. Position the handle and put the bush in as far as possible. 7. Line up the upper lever and put the bush through the hole. 8. Do the same with the other bush and mount the screws. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 55...

  • Page 56: Exchanging Soap Injection Parts

    E. Pressure reducer adjusted at 250 - 300mBar. F. Pressure gauge. H. Bottle cap with swivel. Note that the soap outlet is marked black. I. Soap mister. (pressure controlled nozzle) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 56...
  • Page 57 Since 2019, a 6mm and 8mm hose are used, to prevent interchanging. When testing with water, 1,2 litre water will be used in 8 minutes (1st injection duration is 8 minutes) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 57...

  • Page 58: Electrical Tests

    2,42 Ω can be expected when measuring on the screw ∞ terminals (black and blue)in case they are NOT discon- Ω Ω Ω MΩ nected. This is because of the transformer coils. Insulation test 500V Brown Blue Black Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 58...
  • Page 59 Leave it for a few seconds and then put the wires to- gether. A loud spark must arise. If not, the capacitor is leaking (loosing its charge). It is also possible to charge the capacitor by shortly con Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 59...
  • Page 60 X3 is the relay that switches high and low speed. “1” is Switching ON Push 3 seconds low speed. X6 Switches power on the transformer. X7 Not connected Note that the text untill sw version 3.77 is not correct. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 60...
  • Page 61 Note that in case an insulation tester was available, a 60 61 broken blower would have been detected already with the resistance values. See page 48. 6µF 6µF transformer upper lower fan speed Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 61...

  • Page 62: Measuring On The 3 Way Valve

    Note that the resistances of the motor can reach 6000Ω and 1200 Ω after a run. The motor is ther- Cooking position-> 50-200Ω ± 36kΩ Cleaning position-> ± 36kΩ mally protected. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 62...
  • Page 63 230V~ Wire 1 disconnected from Neu- tral. Fuse 0,5A 5x20mm Coil K8 230V~ Valve problem Contact K8 0V= Relay problem X16 – X17 Wiring problem If all ok Board problem (input side) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 63...
  • Page 64 In this position, when the motor has stopped, there will be 230V between wire 1 and 6. (feedback sig- nal) Testconnector 1 3 4 5 6 1 3 4 5 6 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 64...
  • Page 65 X14 and X15. K6(A1) - N 230V~ Wire 41 disconnected K6(A2) - N Open vane switch or loose wire. K6 = ON? Broken contacter 230V~ Switch OFF X10 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 65...

  • Page 66: Measuring On The Illumination

    Working principle. ±15 ±620 Ω Ω Relay K4 switches the compressor and is controlled by output x5 of the slave I/O board. The resistances as shown can be measured in circuit. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 66...

  • Page 67: Measuring On The Watervalves

    Both switches are in series with two contacters. Ω These contacters switch OFF all phases and Neutral li- nes in case the high limit trips or when the emergency switch is pushed in. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 67...

  • Page 68: Measuring On The Pt1000 Sensors

    134,70 673,50 1347,00 1385,00 138,50 692,50 1422,00 142,29 711,00 146,06 730,00 1460,60 149,82 749,10 1498,20 153,58 767,90 1535,80 1573,10 157,31 786,55 175,84 879,92 1758,43 194,07 970,35 1940,81 212,02 1060,09 2120,30 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 68...
  • Page 69 ELECTRICAL TESTS Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 69...

  • Page 70: Condenser Hood

    The operation of it, valve Ceiling oven cavity is fixed in the software. During cooking it will be opened and during cleaning it will Multiserie exhaust be closed. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 70...
  • Page 71 9. 2 ceramic terminal blocks for serial connec- tions of the door switches. 10. Position where the wires from the lower PT1000 sensor go into the post. 11. Non-return valve. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 71...

  • Page 72: Access To Service Parts

    The beams can simply be taken out. The two front covers have to be unscrewed from the frontside, underneath the conden- ser. Now there is a clear view on most parts. See picture 7 and 8. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 72...
  • Page 73 In this case the complete con- denser hood has to be removed after removing the condenser as explained in the next pages. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 73...

  • Page 74: Exchanging Parts

    • Lift out the heat exchanger. • Reverse the procedure to install. Exchanging the 3 cooling blowers. • Disconnect the wiring for the blowers at the bottom side of the condenser. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 74...
  • Page 75 • Slide out again and check the locking!!!! Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 75...

  • Page 76: Trouble Shooting Hood

    The condenser coil might be at Replace the condenser coil of the hood the end of its life time. Drain pipe or hose not connec- Check the drain pipe and hose ted or broken. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 76...

  • Page 77: Trouble Shooting

    4.32 for old filter replaced” needs to be No filter is connected. The water capacity setting has to CPU board only!! put on “yes” be set to” ” in the service menu. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 77...

  • Page 78: Communication Between The Electronic Boards

    POWER SUPPLY Slave board Power&I/O board CPU board Mark LED Positions on the boards CPU board Transmit (TXD) and Receive (RXD) signals Schematic overview Power & I/O board Extension board FC14HF Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 78...

  • Page 79: Troubleshooting By Symptom

    Dirt in watervalve No or too little steam Dirt in watervalve Waterpressure too low Tubes calcified Leaking hose Control defect No heating Program does not reach the Core probe shortened Wrong programming Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 79...
  • Page 80 Door not right adjusted drain Doorgasket damaged Air exhaust valve clogged Deterioration of components, Wrong detergent rubbers Cleaning instructions neglected Drip drains clogged Door not right adjusted Doorgasket damaged Cleaning instructions neglected Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 80...

  • Page 81: Troubleshooting By Part / Function

    Fuse F1 and/or F2 blown Heating element Mutisserie does not reach Heating element defect Check heating element the adjusted temperature. Wire loose and wiring. Product not ready in time. Replace if necessary. Uneven cooking Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 81...
  • Page 82 Baking program ends too Core sensor defect (resi- Replace sensor if wiring soon stance too high). is ok. Customer starts program Give instructions how to while core sensor is still use. hot. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 82...
  • Page 83 Replace if Wiring shorted. necessary Blowers,heaters and ro- Reed contact defect. Check reed contact and/ tor stay on while door is Wiring loose. or wiring. Replace if opened. necessary Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 83...
  • Page 84 Empty cleaning agent jug. Cleaning agent jug incor- rect connected. Wrong cleaning agent. Rinse nozzle(s) clogged. Water pressure too low (> 2bar). Cleaning instructions neglected. Drain sieve clogged. Drain pipe clogged. Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 84...
  • Page 85 TROUBLE SHOOTING EMPTY PAGE Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 85...

  • Page 86: Exploded Views And Partslists

    EXPLODED VIEWS AND PARTSLISTS ELECTRICAL PARTS FROM SERIAL NUMBER 100107628 1 3 4 5 6 7 8 UM1 / R5-AC-E Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 86...
  • Page 87 Valve, quadruple 220-240V60Hz 9191215 Valve, double inlet 220-240V60Hz 3500020 Reed switch 9192158 Temperature sensor 9192005s Core temperature probe 9190231s Build in kit, core probe 9192018 Sliding ring 9192019 Sliding contact Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 87...

  • Page 88: Electrical Parts Untill Serial Number 100107627

    EXPLODED VIEWS AND PARTSLISTS ELECTRICAL PARTS UNTILL SERIAL NUMBER 100107627 UM1 / R5-AC-E (3x) Old relay From snxxxx Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 88...
  • Page 89 Connecting bridge 3p 9291003 Switch 9191222 End clamp din rail 9194912 Bracket (for RS232 to USB) 9191233 Rail terminal, 2p green update) 9191232 Rail terminal, 2p grey See fasteners 3500109 End switch Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 89...

  • Page 90: Doors

    EXPLODED VIEWS AND PARTSLISTS DOORS untill sn.100033207 okt 2006 (untill 100033207) okt 2006 170 155 835 and 884 from ser. nr. 100052917 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 90...
  • Page 91 Filling plate, left bottom 9190494 Hinge, middle top 9194879 Filling plate, middle top 9190495 Hinge, middle bottom 9194878 Filling plate, middle bottom 9190496 Hinge, right top 9194883 Filling plate, right top Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 91...

  • Page 92: Water And Steam System

    EXPLODED VIEWS AND PARTSLISTS WATER AND STEAM SYSTEM Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 92...
  • Page 93 9193065 Pipe, water injection 3500048 Joint 3500144 Clamp ring 9193063 Pipe, upper water injection 9193064 Pipe, lower water injection 9194312 Bracket 9191227 Gasket Ø24xø16x2 9301053 Y-threaded 3/4” (F-M-M) See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 93...

  • Page 94: Blowers And Heating

    EXPLODED VIEWS AND PARTSLISTS BLOWERS AND HEATING From sn 100060393 Old switch (54) available Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 94...
  • Page 95 Fan plate 9190048s Filter ass. 9194909 Base, vane switch 9191305 Plastic bearing 3 mm 9193088 Axle, vane switch 9194910 Swing, vane switch 9171015 Grommet 9190104s Vane switch ass. See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 95...

  • Page 96: Rotor Drive System

    EXPLODED VIEWS AND PARTSLISTS ROTOR DRIVE SYSTEM Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 96...
  • Page 97 Bracket, gearmotor parvalux 9194509 Adjustingplate, chain tensioner 9194221 Spacer ring 1mm, Ø40x31,5 9191210 Spie 9191045 Circlip, 30 mm external 9194508 Lock washer M22 9192075 Nut M22 x 1,5, SS See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 97...

  • Page 98: Drain And Vent System

    EXPLODED VIEWS AND PARTSLISTS DRAIN AND VENT SYSTEM 0,5A UM1 / R5-AC-E Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 98...
  • Page 99 Grease container 40x60 9194917 Support, grease container 40x60 9194477 Bracket, vent motor 9193101 Camshaft 9194472 Mounting plate, end switch 9190510 Shaft vent mechanism, long 3500106 Spring 9194473 Bracket 9194488 Spring plate Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 99...

  • Page 100: Soap Injection System

    EXPLODED VIEWS AND PARTSLISTS SOAP INJECTION SYSTEM 3x452+453+454+455= Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 100...
  • Page 101 Service kit, air controlled nozzle(3x 452 + 453 + 454 + 455) 9190209s Soap bottle cap ass. USA 9190210s Soap bottle cap ass. EUR 9190211s Soap bottle cap ass. AUS See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 101...

  • Page 102: Underframe (Untill Ser Nr. 100055089, September 2011)

    EXPLODED VIEWS AND PARTSLISTS UNDERFRAME (UNTILL SER NR. 100055089, SEPTEMBER 2011) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 102...
  • Page 103 Doorlock 9174230 Thethering bracket 9194455 Base plate, castors 9191104 Castor 9191105 Castor with brake 9194250 Underframe 9194253 Bottomplate, rear 9194252 Bottomplate, front 9070840 Grommet 15mm 9194468 Construction profile See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 103...

  • Page 104: Underframe (From Ser Nr. 100055090, October 2011)

    EXPLODED VIEWS AND PARTSLISTS UNDERFRAME (FROM SER NR. 100055090, OCTOBER 2011) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 104...
  • Page 105 Hex plate, adjustable castor 3701077 Castor, Ø100, H=125 3701078 Castor with brake, Ø100, H=125 9194456 Rear panel mirrored 9190176s Adj. Castor ass. 9190177s Adj. Castor with brake ass. See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 105...

  • Page 106: Underframe, Build In

    EXPLODED VIEWS AND PARTSLISTS UNDERFRAME, BUILD IN Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 106...
  • Page 107 Pcs Plinth, for controls on right side 9194577 Pcs Plinth, for controls on left side 9191260 Pcs Adjustable leg, M24x200, foot Ø80 9194558 Pcs Cover plate stand, bottom 9194557 Pcs Beam, for wheels See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 107...

  • Page 108: Chassis And Sheet Metal

    EXPLODED VIEWS AND PARTSLISTS CHASSIS AND SHEET METAL Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 108...
  • Page 109 Curved cover plate, middle 9194816 Cover plate, air inlet 2005250 Finishing plug 9194491 Protection plate, lexan 9194486 L shaped bracket 9191253 Rubber seal strip 9192259 Finishing profile, rubber See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 109...

  • Page 110: Underframe 2017

    EXPLODED VIEWS AND PARTSLISTS UNDERFRAME 2017 610 (2x) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 110...
  • Page 111 614 9191330 Hinge 615 9194940 Door, right 616 9194944 Door, left 617 9194941 Side panel, left 618 9194943 Mounting plate, magnets 619 9191328 Magnet 620 9198118 Cladding, underframe 2017 See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 111...

  • Page 112: Grease Separator

    EXPLODED VIEWS AND PARTSLISTS GREASE SEPARATOR FH14 FH13 FH10 FH11 FH12 FH15 FH16 FH17 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 112...
  • Page 113 9191379s Wiper Blade PE Wiper Blade Assembly Solid Strainer 9191378s GG Drive Motor 110V 9191377s Gear Box 110V GGX/D10 9191376s Capacitor 110V 9171120 GG Fuse 10AT 9191374s GG Fuse Holder Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 113...

  • Page 114: Internal Condenser

    EXPLODED VIEWS AND PARTSLISTS INTERNAL CONDENSER 681 680 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 114...
  • Page 115 Pcs Top plate back side 9194738 Pcs Construction profile 9194739 Pcs Construction profile L for covers 9194744 Pcs Cover L 9194741 Pcs Construction profile front side for covers 9194746 Pcs Cover frontside L Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 115...

  • Page 116: Rinse Aid System

    EXPLODED VIEWS AND PARTSLISTS RINSE AID SYSTEM Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 116...
  • Page 117 9301120 Hose clamp 6-8mm SST CRPH Cross Recess Pan Head 9301010 Peristaltic pump 230VAC 50Hz Nickel Plated 9194933 Mounting plate, pumps Slotted Pan Head Stainless Steel See fasteners Zinc Plated Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 117...

  • Page 118: Multisserie Bake Parts

    EXPLODED VIEWS AND PARTSLISTS MULTISSERIE BAKE PARTS (12x) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 118...
  • Page 119 Cross Recess Pan Head 9194859 Cover plate, bake Nickel Plated 9194548 Cover plate, rotor axle Slotted Pan Head 9190467 Ass. Centering shaft / drain plug Stainless Steel Zinc Plated See fasteners Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 119...

  • Page 120: Fasteners

    Screw M5x20, SS socket BH 0141204 Screw M4x16, Pan head SS 9070688 Bolt M8x12, SS 0149210 Screw M5x6, Pan head 9008518 Lockwasher, SS serrated 0141539 Screw M5x10, SS countersunk 0142292 Nut M3 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 120...

  • Page 121: Miscellanious

    Ringterminal, M5 Red 2005763 Ringterminal, M5 Blue 2006133 Receptacle, female Blue 2005836 Receptacle, female Red 2,8mm 2006183 Receptacle, female Red, full insulated 2006222 Receptacle, female Red piggyback 4310570 Receptacle, uninsulated (6000) Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 121...

  • Page 122: Electrical Diagrams

    ELECTRICAL DIAGRAMS CIRCUIT DIAGRAM 1 OF 2 FROM SERIAL NUMBER 100107628 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 122...

  • Page 123: Circuit Diagram 2 Of 2 From Serial Number 100107628

    ELECTRICAL DIAGRAMS CIRCUIT DIAGRAM 2 OF 2 FROM SERIAL NUMBER 100107628 Wire 156, only for grease separator Water presure Filter Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 123...

  • Page 124: Wiring Diagram 1 Of 2 From Serial Number 100107628

    Power and signals for CB1 DELIVERY CONNECTION grease separator 158* 3N~400V 157* 150 151 1 2 3 4 5 6 156* 3~230V drain 3-way valve 3* 4* BN BU CB 3 128* compressor Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 124...

  • Page 125: Wiring Diagram 2 Of 2 From Serial Number 100107628

    9/10 lower element yellow reducer inside rinse center steam inj. shine pump1 C2 6 µF Br Zw Bl 94/93 RED-WHITE tap water descaled water drain 3-way valve PT-1000 LOWER HEATER Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 125...

  • Page 126: Overview Of The Power & I/O Board From Serial Number 100107628

    200V Green 3x Blower rinse center steam inj. shine pump1 CB2-7 165V CB2-6 145V 60/61 Black compressor M2,3 H1-3 Br Zw Bl tap water descaled water 67/68 CB2-6 2x Blower Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 126...
  • Page 127 ELECTRICAL DIAGRAMS EMPTY PAGE Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 127...

  • Page 128: Circuit Diagram 1 Of 2 Untill Serial Number 100107627

    ELECTRICAL DIAGRAMS CIRCUIT DIAGRAM 1 OF 2 UNTILL SERIAL NUMBER 100107627 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 128...

  • Page 129: Circuit Diagram 2 Of 2 Untill Serial Number 100107627

    ELECTRICAL DIAGRAMS CIRCUIT DIAGRAM 2 OF 2 UNTILL SERIAL NUMBER 100107627 wire 156 only in case of grease separator compressor Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 129...

  • Page 130: Wiring Diagram 1 Of 2 Untill Serial Number 100107627

    ELECTRICAL DIAGRAMS WIRING DIAGRAM 1 OF 2 UNTILL SERIAL NUMBER 100107627 150 watt 150 watt Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 130...

  • Page 131: Wiring Diagram 2 Of 2 Untill Serial Number 100107627

    ELECTRICAL DIAGRAMS WIRING DIAGRAM 2 OF 2 UNTILL SERIAL NUMBER 100107627 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 131...
  • Page 132 Service Manual Deli Multisserie form 9123667 rev. 20220317 Page 132...

Table of Contents
