Summary of Contents for Creative Play CLYDE ACTIVITY CENTRE ROUND

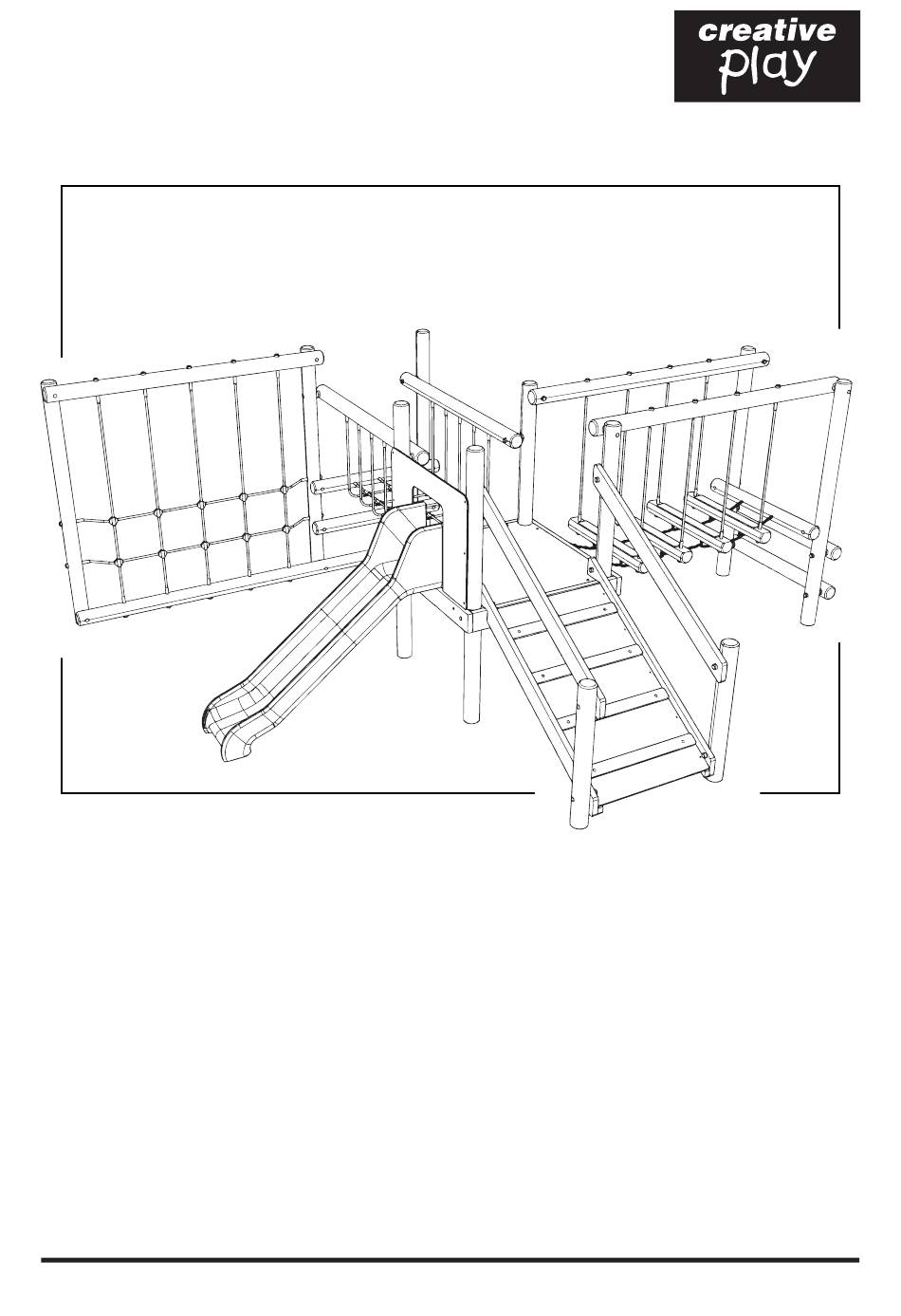

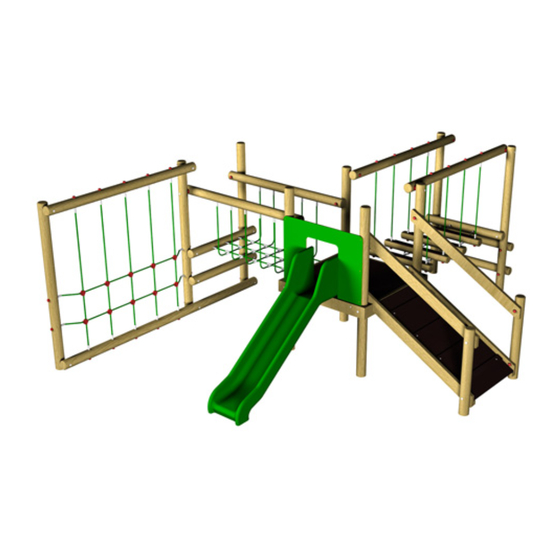

- Page 1 CLYDE ACTIVITY CENTRE ROUND Installation Instructions REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 1 of 14...
-
Page 2: Parts Required
PARTS required (LOG WALK) (NET) (BRIDGE NET) (1m SLIDE) (RAMP) REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 2 of 14... - Page 3 (M12 x 300 Square Cup HEX bolt) (FM80 ‘Brass screws’) (FM40 ‘Brass screws’) (end caps) (120 Distance piece) 120 label is shown on the inside (M12 ‘NYLOC’) (end caps R60) REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 3 of 14...
-
Page 4: Tools Required
AC101Rg 125mm 3000 ø AC101Rh 125mm 3000 ø AC101Ri 125mm 2470 ø AC101Rj 125mm 3000 ø AC101Rk 125mm 1330 ø AC101Rl 125mm 1330 ø AC101Rn 125mm 1871 TOOLS required REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 4 of 14... -
Page 5: Foundation Details
Foundation Details SLIDE LOG WALK finished ground level Soil Timber support post Concrete REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 5 of 14... -
Page 6: Surfacing Details
Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 6 of 14... - Page 7 Attach the Timbers CF103Ra/b/c/d/e to the Timbers CF101Rb and CF103Ra/f Using 16x 120 Distance piece/ 11x @300mm M12 SQUARE CUP HEX BOLTS / 11x NYLOCS / 11x END CAPS R60 REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 7 of 14...
- Page 8 Attach the Timber AC101Rd to the Timbers AC101Rb/e/f and AC103Ra Using 8x 120 Distance piece/ 4x @300mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 8 of 14...
- Page 9 Using 8x 120 Distance piece/ 4x @300mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 Attach the Timber AC101Rl/k to the Timbers AC101Rj Using 12x 120 Distance piece/ 6x @300mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x END CAPS R60 REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 9 of 14...
- Page 10 Using 4x @180mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS R60 Attach the Net Bridge and Ramp SIDE PANEL to the Timbers AC101Re/f/g/h Using 12x FM80 Brass ‘Screws’ REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 10 of 14...
- Page 11 Using 4x (3B) / 6x(4B) / 4x (N1) / 6x (N3) TORKTAINERS Attach the Timber AC101Rs to the Timbers AC101Rg/h/n Using 4x @180mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x END CAPS REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 11 of 14...
- Page 12 Using 16x NYLOCS / 13x END CAPS R60 / 3x END CAPS Attach the LOG WALK to the AC101Ri/k and SIDE PANEL Using 12x NYLOCS / 10x END CAPS R60 / 2x END CAPS (M12 x 140 Eyebolt) REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 12 of 14...
- Page 13 Installation Instructions Attach the SLIDE TO THE PLATFORM Using 4x “FM80 Brass Screws” / 2x “FM40 Brass Screws” and Slide Fittings REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 13 of 14...
-
Page 14: Additional Dimensions
Additional Dimensions REF: AC103-R - CLYDE ACTIVITY CENTRE ROUND pg 14 of 14...
