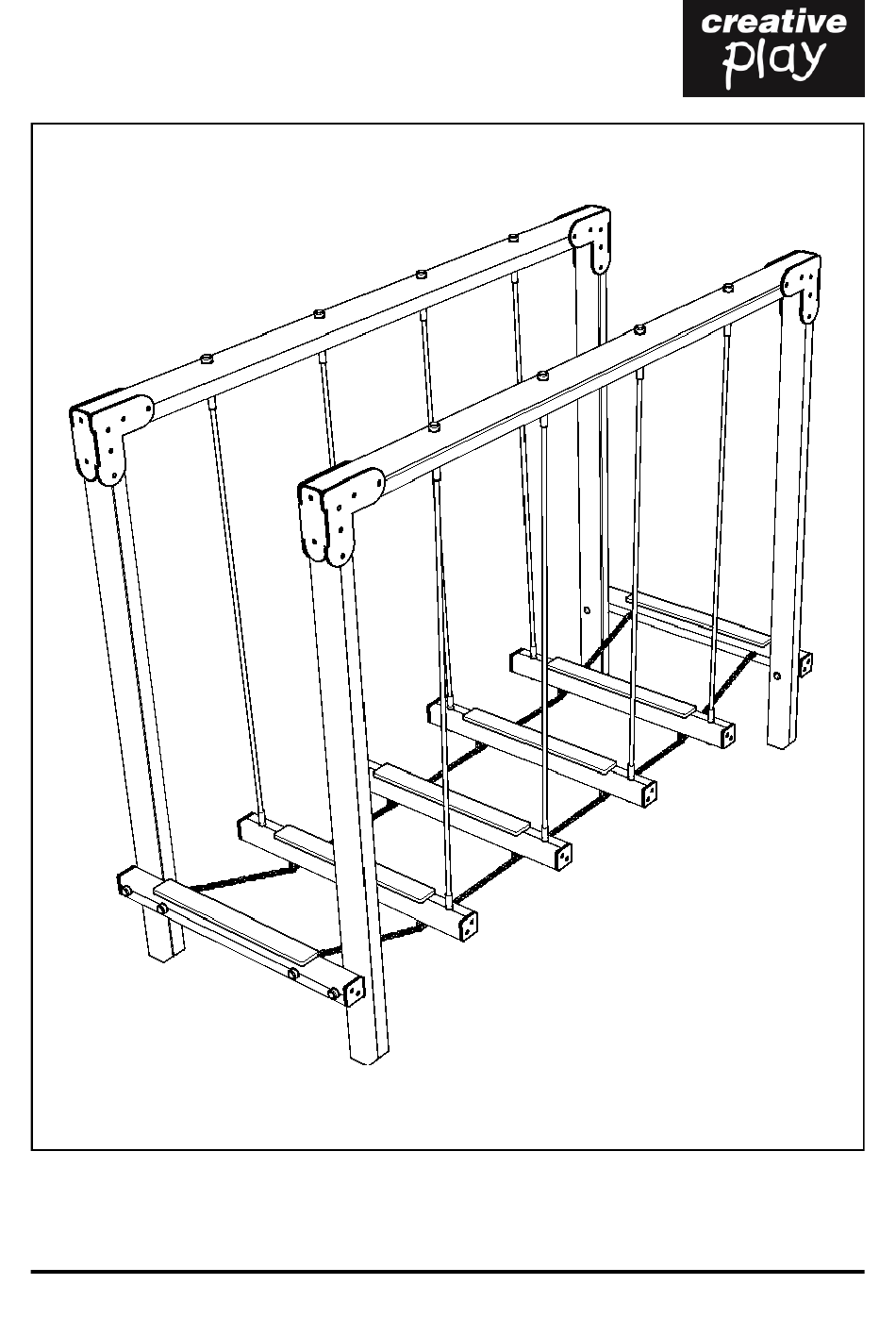

- Page 1 LOG WALK Installation Instructions REF: CH114 - LOG WALK pg 1 of 9...
-
Page 2: Parts Required
Parts required (PRE-ASSEMBLED TOP SECTION) QTY x 4 (120mm x 90mm) (PRE-ASSEMBLED STEP SECTION) (PRE-ASSEMBLED LOG SECTION) (M12 x 220 square hex bolt) (EYEBOLT x 130 ) (FM80 ‘BRASS SCREW’) (M12 NYLOC) (end caps) (QUICKLINK ) pg 2 of 9 REF: CH114 - LOG WALK... -
Page 3: Tools Required
TOOLS required pg 3 of 9 REF: CH114 - LOG WALK... -
Page 4: Foundation Details
Foundation details SOIL TIMBER SUPPORT POST CONCRETE pg 4 of 9 REF: CH114 - LOG WALK... -
Page 5: Surfacing Details
Surfacing details = MINIMUM SPACE = SURFACING AREA pg 5 of 9 REF: CH114 - LOG WALK... - Page 6 Assembly instructions Install the timbers (SW1) ENSURE: The faces are in the correct direction Attach the PRE-ASSEMBLED STEP SECTIONS using M12 CUP SQUARE BOLTS / NYLOCS / END CAPS ENSURE: The faces are in the correct direction pg 6 of 9 REF: CH114 - LOG WALK...
- Page 7 Assembly instructions Attach the PRE-ASSEMBLED TOP SECTIONS Using FM80 BRASS CREWS Attach the Eyebolt to the Timber (LW3) Using NYLOCKS / END CAPS NOTES: BOTH SIDES pg 7 of 9 REF: CH114 - LOG WALK...
- Page 8 Assembly instructions Attach the TYRES to the Timbers (LW2) Using NYLOCKS / END CAPS ENSURE: ATTACH FOLLOWING SEQUENCE: 1-2 / 3-4 / 5-6 / 7-8 Attach the QUICKLINK to the CHAIN Use LOCK TIGHT to ensure the quick link remains CLOSED NOTES: BOTH SIDES pg 8 of 9...
-
Page 9: Additional Dimensions
Additional dimensions pg 9 of 9 REF: CH114 - LOG WALK...
