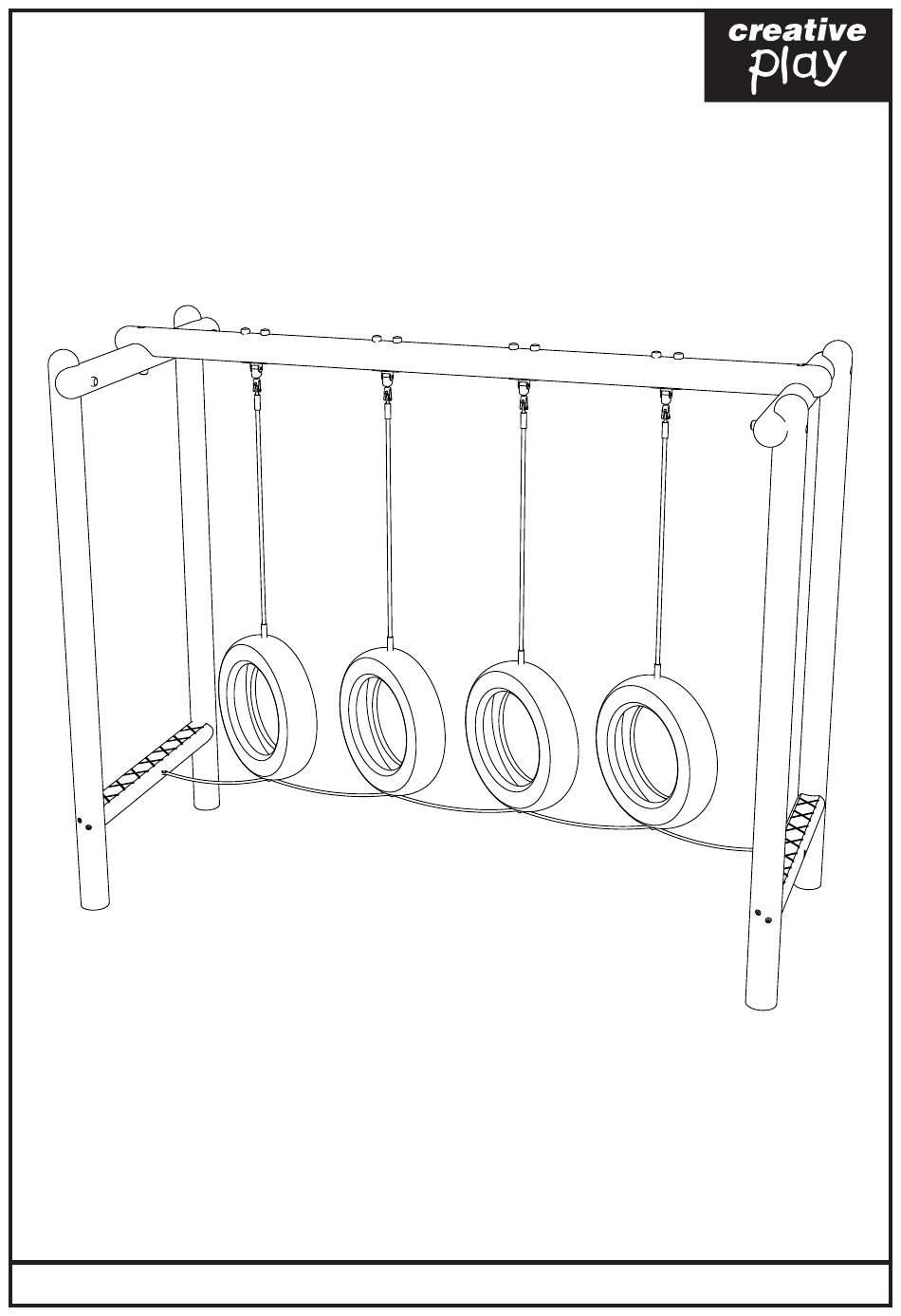

- Page 1 CH116-R - TYRE CROSSING Installation Instructions REF: CH116-R - TYRE CROSSING pg 1 of 9 FEB 18 - KB...
-
Page 2: Parts Required
M12 X 140 BOLTS [X8] SWING BRACKET [X4] M8 X 180 SCREWS [X8] M12 X 200 BOLTS [X6] 580MM CHAIN [X6] 650MM CHAIN [X4] M8 D-SHACKLE [X10] REF: CH116-R - TYRE CROSSING pg 2 of 9 FEB 18 - KB... -
Page 3: Tools Required
PARTS REQUIRED M12 X 50 SOCKET NUT [X2] M12 NYLOCS [X14] COVERED END R-60 [X14] TOOLS REQUIRED REF: CH116-R - TYRE CROSSING pg 3 of 9 FEB 18 - KB... - Page 4 FOUNDATION DETAIL 3000 REF: CH116-R - TYRE CROSSING pg 4 of 9 FEB 18 - KB...
-
Page 5: Installation Instructions
INSTALL R-116A AND R-116B TIMBERS INTO THE GROUND ENSURE COUNTERSINKS ARE FACING OUTWARDS R-116B R-116A R-116A R-116B FIX R-116E TO R-116A AND R-116B - ON THE INSIDE USING M12X200 BOLTS, NYLOCS AND END CAPS REF: CH116-R - TYRE CROSSING pg 5 of 9 FEB 18 - KB... - Page 6 INSTALL R-116D BETWEEN R-116A AND R-116B USING M8X180 SCREWS ATTACH R-116C TO R-116E TIMBERS - REBATING ON THE UNDERSIDE USING M12X200 BOLTS, M12 NYLOCS AND ROUNDED END CAPS REF: CH116-R - TYRE CROSSING pg 6 of 9 FEB 18 - KB...
- Page 7 INSTALLATION INSTRUCTIONS ATTACH SWING BRACKETS TO REBATED SECTIONS USING M12X140 BOLTS, M12 NYLOCS, ROUNDED END CAPS ATTACH TYRE ASSEMBLIES TO SWING BRACKETS AS SHOWN BELOW REF: CH116-R - TYRE CROSSING pg 7 of 9 FEB 18 - KB...
- Page 8 INSTALLATION INSTRUCTIONS CONNECT TYRE ASSEMBLIES AND FRAMEWORK TOGETHER USING 580MM AND 640MM CHAIN LENGTHS, D-SHACKLES & M12X50 SOCKET NUT 580MM 640MM 580MM 580MM 640MM REF: CH116-R - TYRE CROSSING pg 8 of 9 FEB 18 - KB...
-
Page 9: Additional Measurements
ADDITIONAL MEASUREMENTS 3125 1450 REF: CH116-R - TYRE CROSSING pg 9 of 9 FEB 18 - KB...
