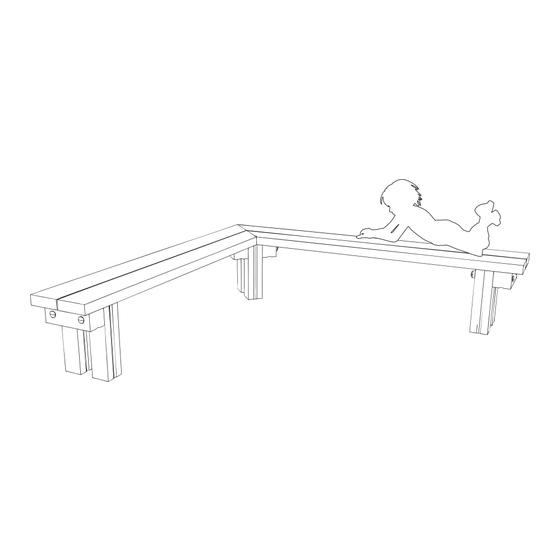

- Page 1 L-SHAPED SQUARE Modular Seating Assembly Instructions REF: REF: CP060/SMS - L-SHAPED pg 1 of 6...
- Page 2 PARTS required QTY 2 (147mm x 47mm) QTY 2 (147mm x 47mm) QTY 2 (single support) (120mm brass screws) QTY 1 (double support) TOOLS required pg 2 of 6 REF: REF: CP060/SMS - L-SHAPED...
- Page 3 Foundation Details SOIL TIMBER SUPPORT POST CONCRETE pg 3 of 6 REF: REF: CP060/SMS - L-SHAPED...
- Page 4 DOUBLE SUPPORT LEG SINGLE SUPPORT LEG SINGLE SUPPORT LEG Attach bench slats (T1 timbers) to the support assemblies Using 120mm brass screws 5mm gap between T1 timber slats POSITIONING FOR SINGLE SUPPORT LEG pg 4 of 6 REF: REF: CP060/SMS - L-SHAPED...
- Page 5 *IMPOTANT - DASHED LINE SHOWS BOLT LOCATIONS FOR BENCH SUPPORTS - ensure the screws for the SLATS are postioned either side 4 x 120mm brass screws for each T1 timber (2 each end) DOUBLE LEG ATTACHMENT DETAIL pg 5 of 6 REF: REF: CP060/SMS - L-SHAPED...
- Page 6 Assembly Instructions Additional dimensions pg 6 of 6 REF: REF: CP060/SMS - L-SHAPED...
