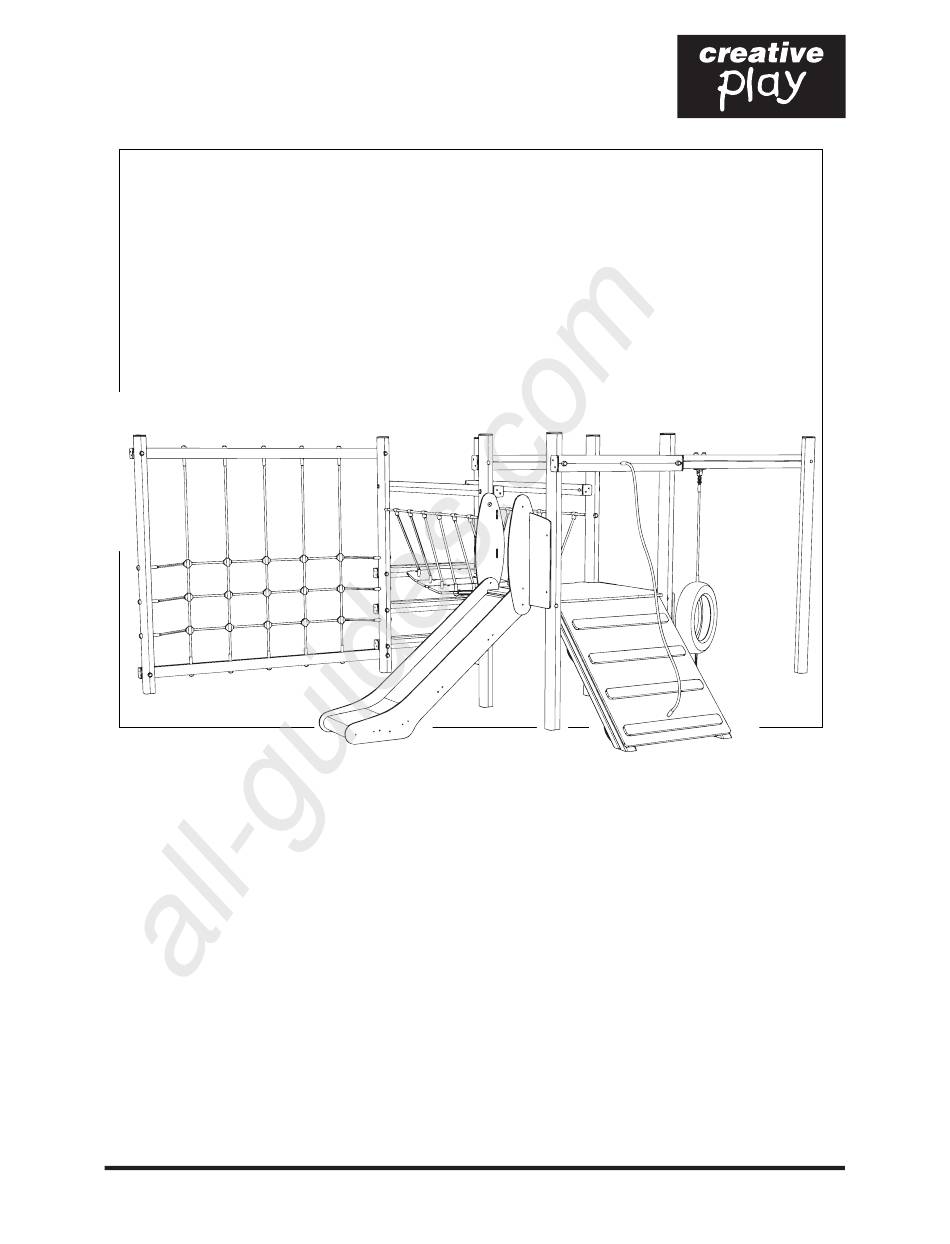

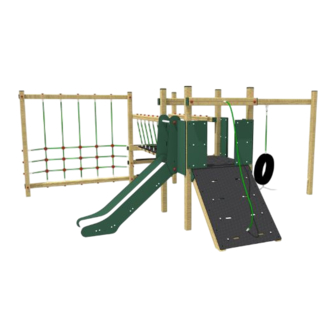

- Page 1 All manuals and user guides at all-guides.com CLYDE ACTIVITY CENTRE Installation Instructions REF: AC103 - CLYDE ACTIVITY CENTRE pg 1 of 15...
-
Page 2: Parts Required
(SLIDE SIDE) (1m SLIDE) RIGHT (SLIDE SIDE) (CLATTERBRIDGE 90 x 90 FLOOR) (1m CLIMBING WALL) (TYRE +ROPE+ CHAIN) (ZENITH STANDARD FLOOR 90x90) (FLAT SIDES) (ROPE CLIMB) (GROOVED SIDES) (RAMP ROPE) REF: AC103 - CLYDE ACTIVITY CENTRE pg 2 of 15... - Page 3 AC101c 90x90 3000 AC103b 90x90 3000 AC101k 90x90 1145 AC103c 90x90 3000 AC101m 90x90 1145 AC103d 90x90 3000 AC101o 90x90 2100 AC103e 120x90 3600 AC101p 90x90 2400 AC103f 120x90 1145 REF: AC103 - CLYDE ACTIVITY CENTRE pg 3 of 15...
- Page 4 All manuals and user guides at all-guides.com TOOLS required TOOLS required NOTES: REF: AC103 - CLYDE ACTIVITY CENTRE pg 4 of 15...
-
Page 5: Foundation Details
All manuals and user guides at all-guides.com Foundation Details FIG.1 600 Concrete + 150 Soil 350 Concrete + 150 Soil 1023 RAMP RAMP CLATTERBRIDGE SLIDE REF: AC103 - CLYDE ACTIVITY CENTRE pg 5 of 15... -
Page 6: Surfacing Details
All manuals and user guides at all-guides.com Surfacing Details = MINIMUM SPACE = SURFACE AREA REF: AC103 - CLYDE ACTIVITY CENTRE pg 6 of 15... - Page 7 Attach the floor to the timbers AC101b/c and place the Hexboard on top Using 4x @150mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS AC101 AC101 AC101 AC101 REF: AC103 - CLYDE ACTIVITY CENTRE pg 7 of 15...
- Page 8 AC101 AC101 AC101 AC101 Attach the timbers AC101m/k to the TIMBERS AC103b/c Using 6x @200mm M12 SQUARE CUP HEX BOLTS / 6x NYLOCS / 6x RED CAPS AC101 AC101 AC101 REF: AC103 - CLYDE ACTIVITY CENTRE pg 8 of 15...
- Page 9 Attach the HEXBOARD and AC103g to the TIMBERS AC101b/c and the TYRE to the TIMBER AC103e Using 8x FM80 ‘Brass Screws’ / 1x D-SHAKLE / 2x M8 Plastic covers AC101 AC101 REF: AC103 - CLYDE ACTIVITY CENTRE pg 9 of 15...
- Page 10 Using 4x @200mm M12 SQUARE CUP HEX BOLTS / 4x NYLOCS / 4x RED CAPS AC101 AC101 Attach the NET to the TIMBERS AC101p and AC103a/b Using 16x NYLOCS / 16x RED CAPS REF: AC103 - CLYDE ACTIVITY CENTRE pg 10 of 15...
- Page 11 Using 2x @200mm M12 SQUARE CUP HEX BOLTS / 2x NYLOCS / 2x RED CAPS / 10x FM80 Brass Screws RAMP HOLE - 148mm from the top of the floor - 850mm from the ground -1412mm from the top REF: AC103 - CLYDE ACTIVITY CENTRE pg 11 of 15...
- Page 12 Using (2x @80mm) (2x @130mm) M12 EYEBOLT/ 6x NYLOCS / 6x RED CAPS / 4 QUICKLINKS AC101 AC101 Attach the RAMP ROPE to the ramp and AC103f Using 2x NYLOCS / 2x RED CAPS REF: AC103 - CLYDE ACTIVITY CENTRE pg 12 of 15...
- Page 13 Using 3x ‘FM40 Brass Screws’ / 2x ‘FM80 Brass Screws’ AC101 AC101 Insert the SLIDE SIDES to the SLIDE and to the timbers P1 4x ‘FM80 Brass Screws’ AC101 AC101 REF: AC103 - CLYDE ACTIVITY CENTRE pg 13 of 15...
- Page 14 Attach the RAMP and CLIMBING SIDE PANELS Using 14x ‘FM80 Brass Screws’ RAMP SIDE PANEL (4x Brass Screw holes) each panel LOG WALK SIDE PANEL (3x Brass Screw holes) each panel REF: AC103 - CLYDE ACTIVITY CENTRE pg 14 of 15...
-
Page 15: Additional Dimensions
All manuals and user guides at all-guides.com Additional Dimensions REF: AC103 - CLYDE ACTIVITY CENTRE pg 15 of 15...
