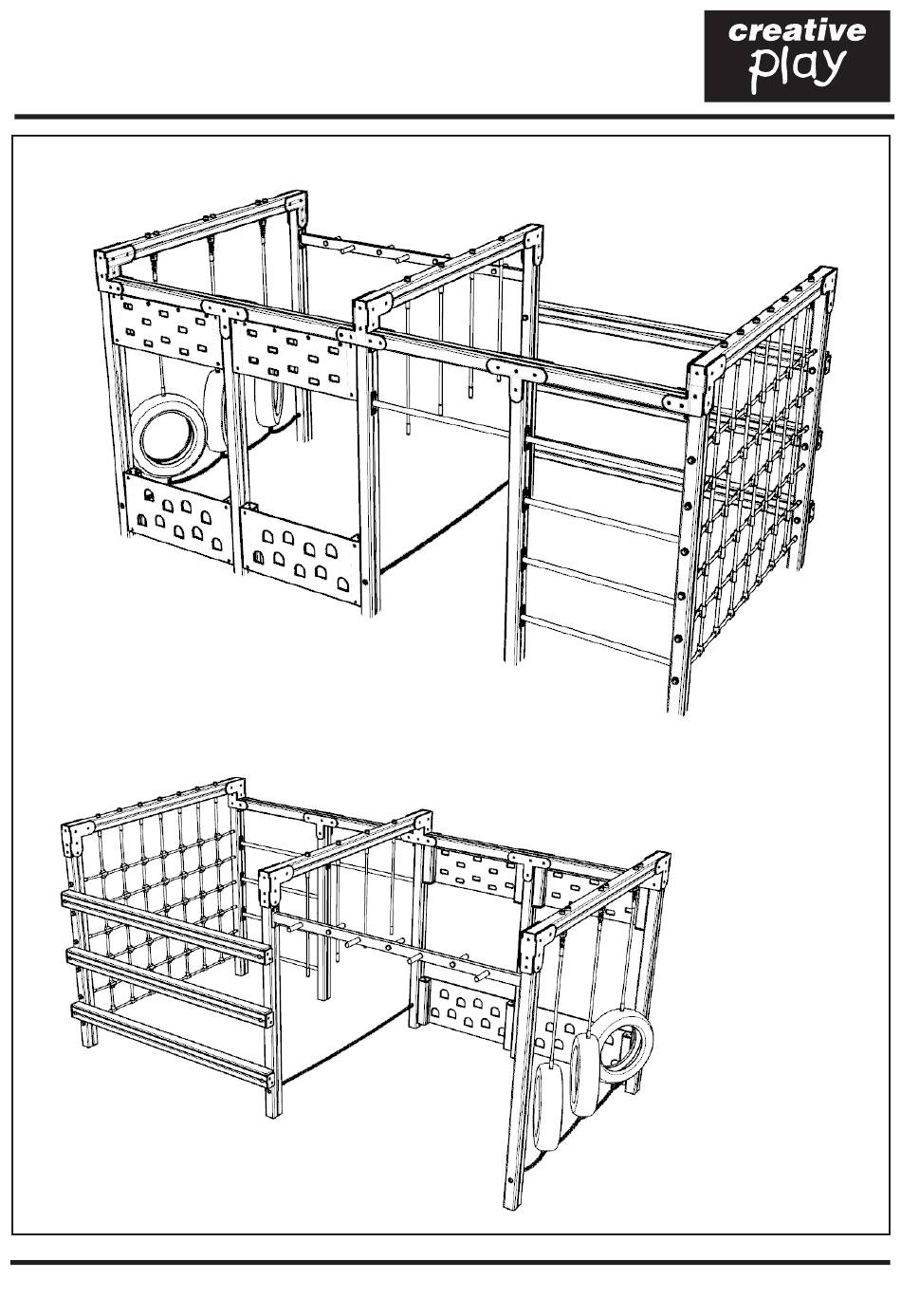

- Page 1 CF105 - RIBBLE CLIMBING Installation Instructions FRAME: REF: CF105 RIBBLE CLIMBING FRAME pg 1 of 19 20.03.2019...
-
Page 2: Parts Required
CF105 CF105 CF105 CF105 CF105 CF105 CF105 CF105 *PLEASE NOTE CF105Ha INCLUDES THE SWING HANGERS ALL H TIMBERS ARE PRE-ASSEMBLED WITH PLAYTEC L’s / T’s (AS SHOWN ABOVE) HORIZONTAL TIMBERS REF: CF105 RIBBLE CLIMBING FRAME pg 2 of 19 20.03.2019... - Page 3 PARTS REQUIRED UPPER TRAVERSE PANEL LOWER TRAVERSE PANEL CARGO NET OVERHEAD LADDER TYRE SWINGING ROPE SWINGING ROPE CHAIN STANDARD BAR (1065MM) 420MM TYRE CHAIN (EYEBOLT) REF: CF105 RIBBLE CLIMBING FRAME pg 3 of 19 20.03.2019...
- Page 4 PLAYTEC L - RIGHT PLAYTEC L - LEFT PLAYTEC - SPECIAL T PLAYTEC - INSIDE T x 2 (PAIRS) PLAYTEC - SHORT L (LEFT) PLAYTEC - SHORT L (RIGHT) PLAYTEC - UNDER BRACKETS REF: CF105 RIBBLE CLIMBING FRAME pg 4 of 19 20.03.2019...
- Page 5 PARTS REQUIRED 97.M8X80CSK 97.M8X180CSK 656.M12x 230 102003-01 - M12 M12 SOCKET NUT (50MM) 656.M12 CONSISTS OF SHACKLE / BOLT / NYLOC / CAP 102001-0 - M8 349.742.D-SHACKLE ‘SET’ REF: CF105 RIBBLE CLIMBING FRAME pg 5 of 19 20.03.2019...
-
Page 6: Foundation Details
FOUNDATION DETAILS SOIL POST CONCRETE SOIL CONCRETE POST REF: CF105 RIBBLE CLIMBING FRAME pg 6 of 19 20.03.2019... -
Page 7: Surfacing Details
SURFACING DETAILS = MINIMUM SPACE = OVERALL AREA REF: CF105 RIBBLE CLIMBING FRAME pg 7 of 19 20.03.2019... - Page 8 INSTALLATION INSTRUCTIONS POSITION THE UPRIGHT TIMBERS FOLLOWING FOUNDATION DETAILS CF105 CF105 CF105 CF105 CF105 CF105 CF105 CF105 ATTACH TIMBER Ha USING 8X80 WOOD SCREWS CF105 REF: CF105 RIBBLE CLIMBING FRAME pg 8 of 19 20.03.2019...
- Page 9 ENSURE BRACKETS ARE POSITONED AS SHOWN BELOW TAKE CARE THAT SCREWS DO NOT ‘CROSS’ ATTACH PLAYTEC - BACK, SHORT L (LEFT) & L (RIGHT) USING 8X80 WOOD SCREWS, ENSURE COUNTERSINKS ARE ON THE OUTSIDE REF: CF105 RIBBLE CLIMBING FRAME pg 9 of 19 20.03.2019...
- Page 10 INSTALLATION INSTRUCTIONS ATTACH TIMBER Hb USING 8X80 WOOD SCREWS NOTES: PLEASE ENSURE THE Hb IS FURTHER ATTACHED TO THE Ha PLAYTEC BRACKET ATTACH TIMBER Hc USING 8X80 WOOD SCREWS REF: CF105 RIBBLE CLIMBING FRAME pg 10 of 19 20.03.2019...
-
Page 11: Installation Instructions
USING 8X80 WOOD SCREWS, ENSURE THEY ARE FURTHER ATTACHED TO Hb ATTACH SECOND Hb TIMBER USING 8X80 WOOD SCREWS, ENSURE IT IS FURTHER ATTACHED TO THE Hc SPECIAL T BRACKET AS SHOWN REF: CF105 RIBBLE CLIMBING FRAME pg 11 of 19 20.03.2019... - Page 12 ATTACH TIMBER Hd USING 8X80 WOOD SCREWS ATTACH PLAYTEC - L (LEFT), SHORT L (RIGHT) & BACK USING 8X80 WOOD SCREWS, ENSURE THEY ARE FURTHER ATTACHED TO Hb AS SHOWN REF: CF105 RIBBLE CLIMBING FRAME pg 12 of 19 20.03.2019...
- Page 13 ATTACH UPPER PLAYTEC CLIMBING PANELS TO Hb TIMBER SHOWN USING 8X180 WOOD SCREWS (2 SCREWS PER TIMBER SPACED EQUALLY) NOTES: TAKE CARE THAT SCREWS DO NOT ‘CROSS’ IN CENTRAL TIMBERS REF: CF105 RIBBLE CLIMBING FRAME pg 13 of 19 20.03.2019...
- Page 14 TAKE CARE THAT SCREWS DO NOT ‘CROSS’ IN CENTRAL TIMBERS PANELS ARE POSITIONED 55MM FROM GROUND ATTACH LOG CLIMBER TIMBERS He USING 274.M12X230 / 656.M12 / 102003-01 NOTES: POSITION COVERED ENDS ON INSIDE OF FRAME REF: CF105 RIBBLE CLIMBING FRAME pg 14 of 19 20.03.2019...
- Page 15 USING 8X80 WOOD SCREWS 10MM NOTES: POSITION TOP OF LADDER FIXING 10MM FROM BRACKET ATTACH STANDARD BARS USING 8X80 WOOD SCREWS/ 102003-01 NOTES: SPACE BARS ACCORDING TO DIMENSIONS (SEE NEXT STEP) REF: CF105 RIBBLE CLIMBING FRAME pg 15 of 19 20.03.2019...
- Page 16 INSTALLATION INSTRUCTIONS PLEASE ENSURE SPACING BETWEEN BARS IS AS SHOWN BELOW ATTACH CARGO NET USING 656.M12 / 102003-01 REF: CF105 RIBBLE CLIMBING FRAME pg 16 of 19 20.03.2019...
- Page 17 INSTALLATION INSTRUCTIONS ATTACH SWINGING ROPES USING 656.M12 / 102003-01 ATTACH SWINGING ROPE CHAIN USING M12 X 50MM SOCKET NUT, D - SHACKLE AND EYEBOLT SHOULD BE PRE-ATTACHED TO CHAIN REF: CF105 RIBBLE CLIMBING FRAME pg 17 of 19 20.03.2019...
- Page 18 USING M12 X 50MM SOCKET NUT ON EYEBOLT CHAINS & D- SHACKLE SETS ON MIDDLE CHAINS NOTES: REPEAT EYEBOLT CHAIN ON BOTH SIDES ATTACH MIDDLE CHAINS TO TYRES AS SHOWN ENSURE CHAIN IS POSITION ON INSIDE OF D - RING REMOVE LINKS IF NECESSARY REF: CF105 RIBBLE CLIMBING FRAME pg 18 of 19 20.03.2019...
-
Page 19: Additional Dimensions
ADDITIONAL DIMENSIONS REF: CF105 RIBBLE CLIMBING FRAME pg 19 of 19 20.03.2019...
