UM3223
Hardware layout and configuration
6.3
Mechanical drawing
Figure 7.

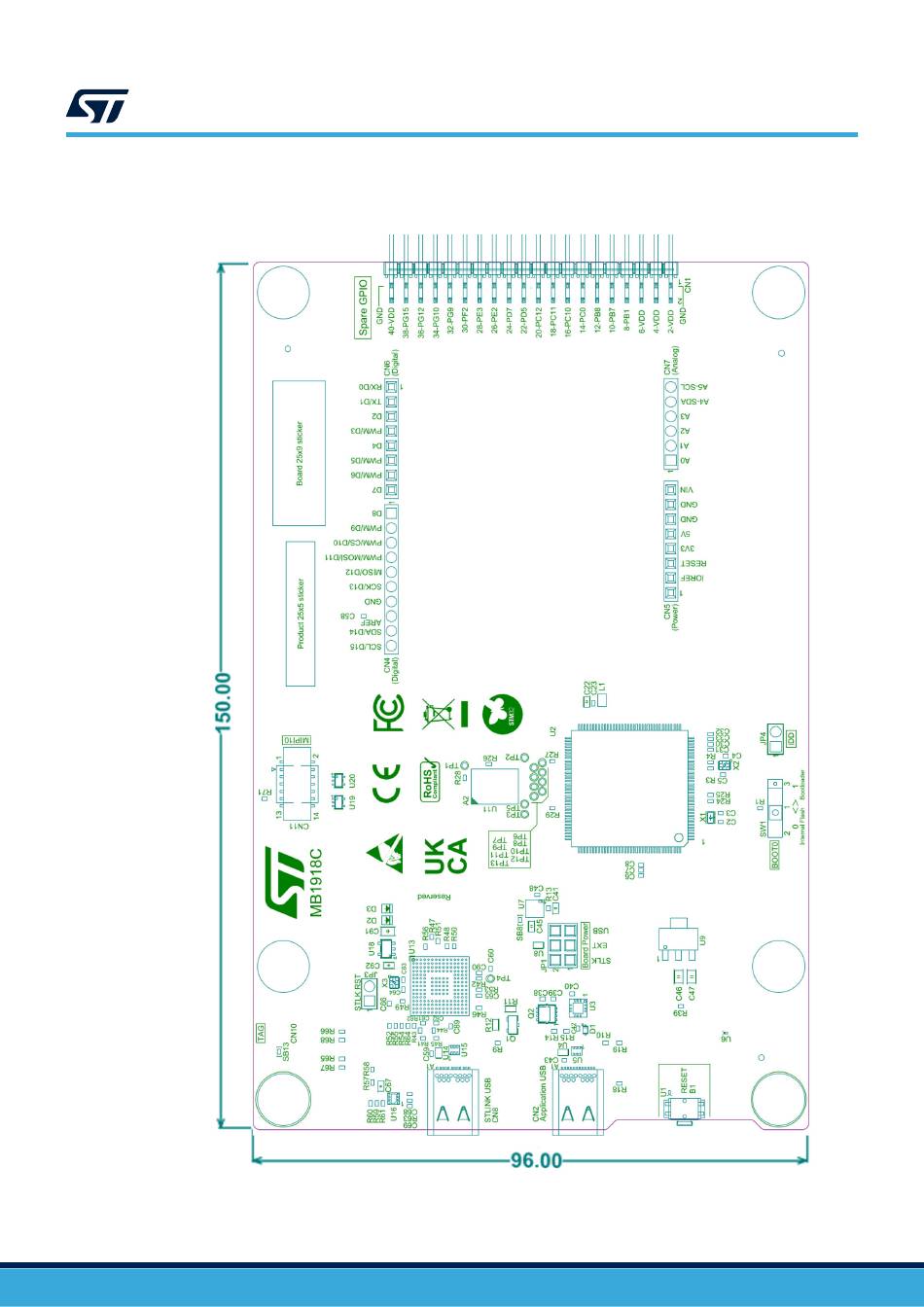

Main board mechanical drawing (in millimeters)
UM3223 - Rev 1
page 9/37
