6.2

Main board layout

MIPI10 connector
(CN11)
STLK_NRST
header (JP3)
STLINK_V3EC
(U13)
STLINK USB
(CN8)
Power source
header (JP1)
®
USB Type-C
connector (CN2)
Reset button
(B1)
TCPP01-M12 USB
protection (U3)
UM3223 - Rev 1

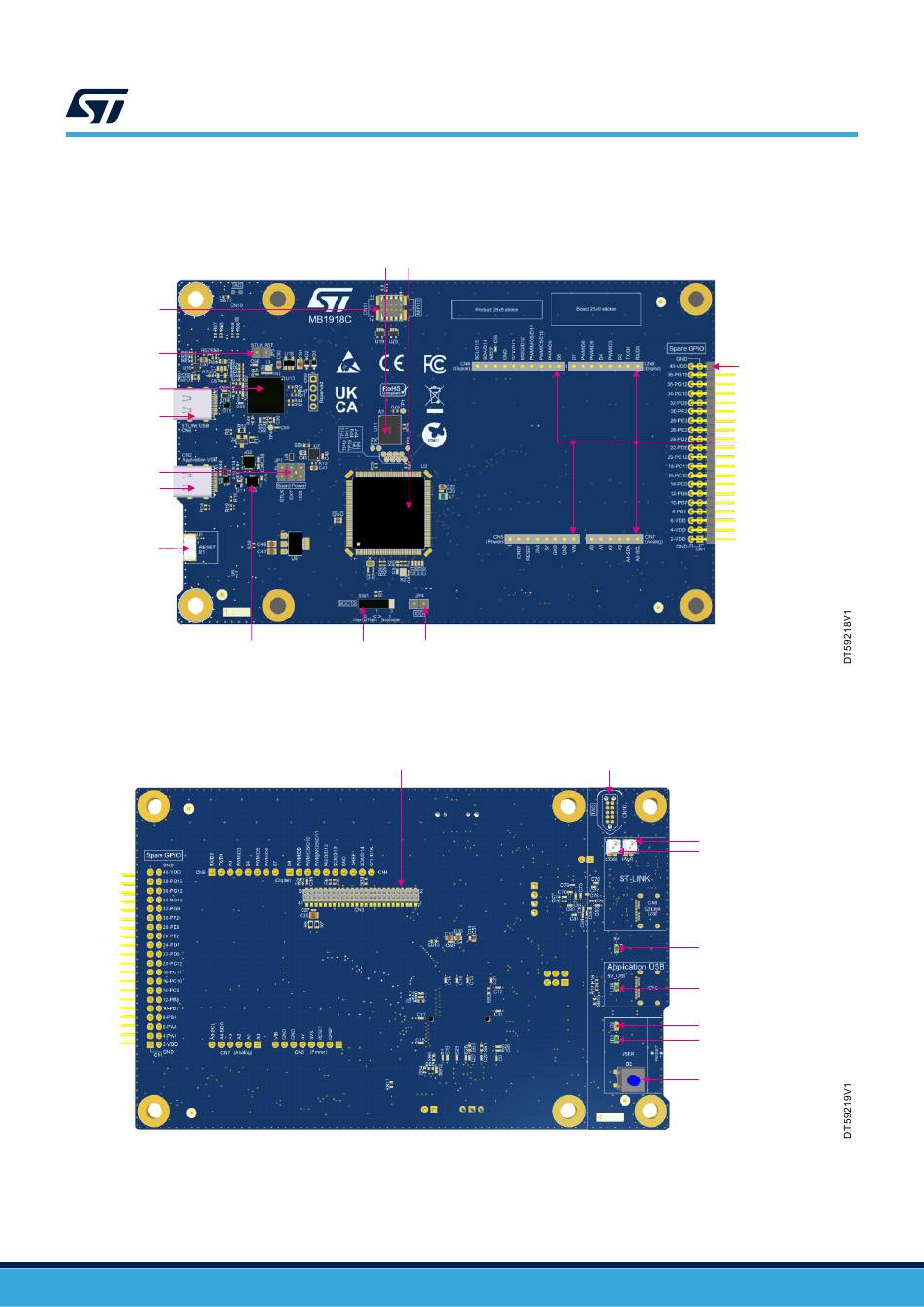

Figure 5. Main board layout (top view)
Octo-SPI flash memory
STM32U5G9 MCU
(U11)
(U2)
BOOT0 switch IDD MCU
(SW1) (JP4)
Figure 6. Main board layout (bottom view)
RGB LCD connector
(CN3)
Hardware layout and configuration
Tag-Connect™
footprint (CN10)
ST-LINK power LED (LD6)
ST-LINK COM LED (LD7)
5V power LED (LD1)
5V USB power (LD5)
User red LED (LD2)
User green LED (LD3)
User button (B2)
UM3223
Spare GPIO
connector (CN1)
ARDUINO ® connectors
(CN4, CN5, CN6, CN7)
