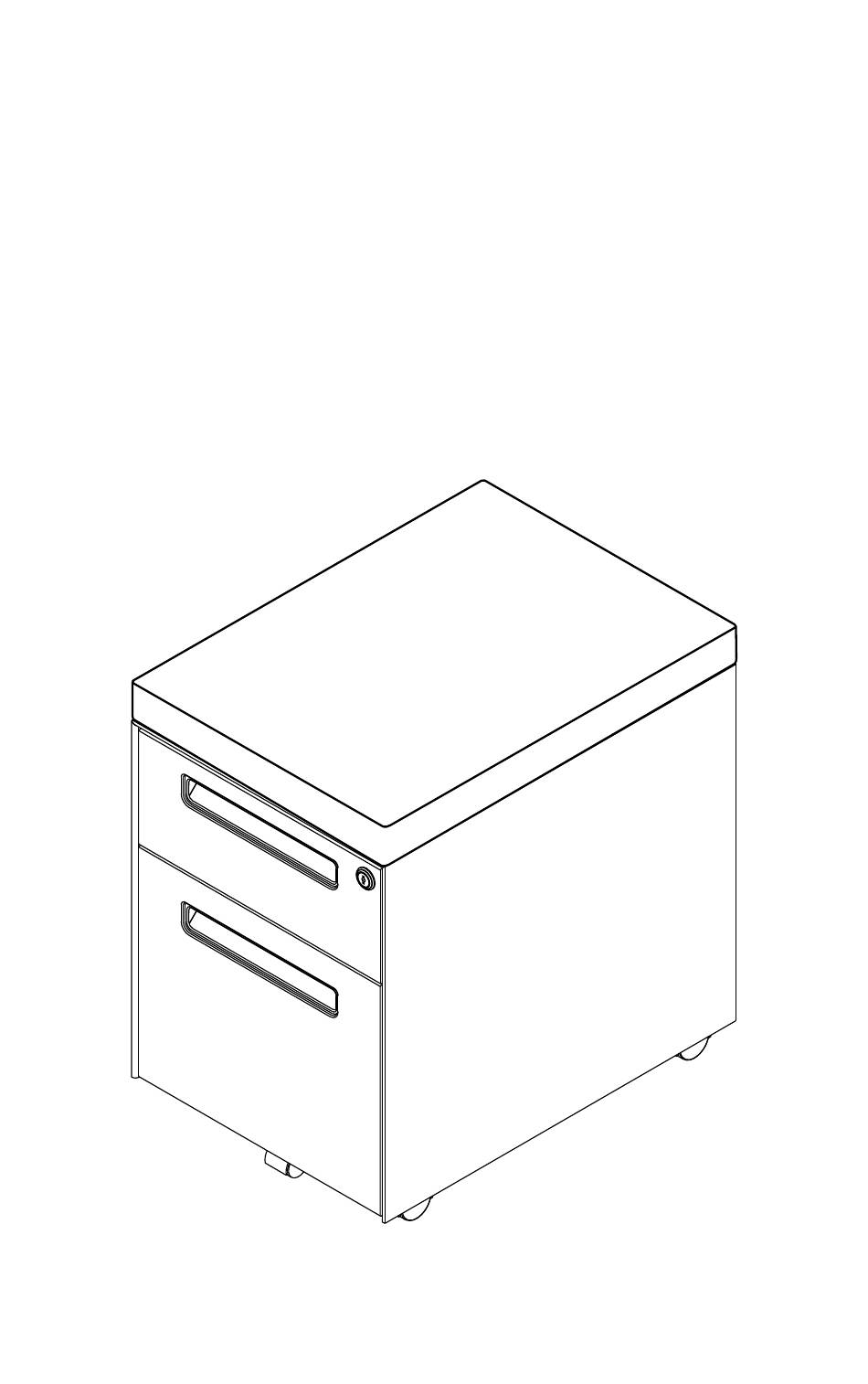

Mobile Pedestal
ASSEMBLY INSTRUCTIONS
File with flexibility.

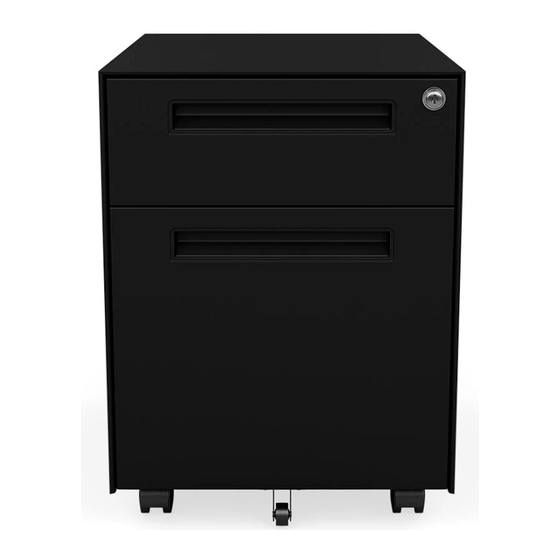

Our two-drawer mobile pedestal stores everything you need and can move out
of the way while still being within reach.
|
|
1
C6596 Rev A
www.sitonit.net

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mobile Pedestal and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SitOnit Seating Mobile Pedestal

  • Page 1 Mobile Pedestal ASSEMBLY INSTRUCTIONS File with flexibility. Our two-drawer mobile pedestal stores everything you need and can move out of the way while still being within reach. C6596 Rev A www.sitonit.net...
  • Page 2 Mobile Ped ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
  • Page 3 Mobile Ped ASSEMBLY INSTRUCTIONS Parts • • Mobile Pedestal (1) Drawer Caster (1) • • Caster (4) 0.8" Washer (4) • Cushion (1, Optional) Drawer Caster File Cabinet Casters Cushion HARDWARE 0.8" Washers C6596 Rev A www.sitonit.net...
  • Page 4 Mobile Ped ASSEMBLY INSTRUCTIONS Step 1: Screw the casters through the provided washers and into the base of the pedestal. 1:1 HARDWARE 0.8" Washer www.sitonit.net C6596 Rev A...
  • Page 5 Mobile Ped ASSEMBLY INSTRUCTIONS Step 2: Tighten the casters' nuts with a wrench. Caster's Nut TOOLS Wrench C6596 Rev A www.sitonit.net...
  • Page 6 Mobile Ped ASSEMBLY INSTRUCTIONS Step 3: Insert the drawer caster into the underside of the drawer. www.sitonit.net C6596 Rev A...
  • Page 7 Mobile Ped ASSEMBLY INSTRUCTIONS Step 4: Tighten the nut on the drawer caster. Caster's Nut TOOLS Wrench C6596 Rev A www.sitonit.net...
  • Page 8 Mobile Ped ASSEMBLY INSTRUCTIONS Step 5 (Optional): Remove the backing from the high-bond adhesive strips and press the cushion firmly to the top of the mobile ped. www.sitonit.net C6596 Rev A...
