5.1.2 Element Set-up Procedure

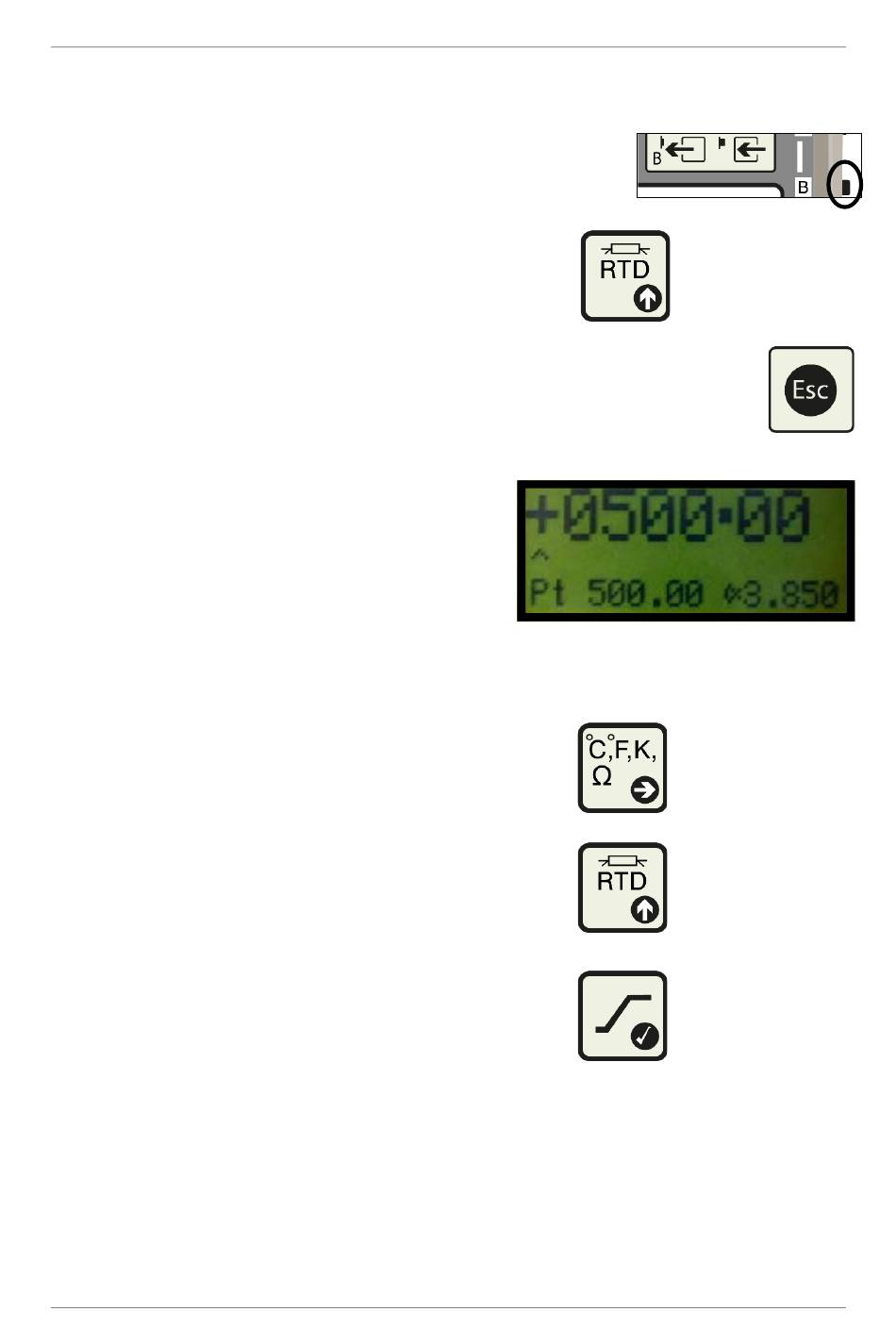

Select Measure by releasing button 'B' to the OUT position
•
Select the correct Alpha curve, repeatedly pressing
•
Access the Parameter mode functions to set the RTD element value press
•
The display will now show the current RTD
•
and Alpha values, with the cursor under the
+ symbol.
• To change the element value, move the display
cursor under the digit to be changed by pressing
• To change the digits repeatedly pressing
To store the new values values and exit setup press
•
The calibrator is now set for the correct RTD type and range to calibrate the process
instrument for the five standard calibration points (0. 25, 50, 75 and 100%).
