Manual Step Function

In the source mode a single key press will step the output though the five calibration points.
This considerably speeds up the calibration process as it removes the time consuming and
tedious process of having to manually adjust for each calibration point.
The following assumes that the calibrator has already been set up for the correct connection,
source mode, RTD type and range as described in Source mode (Section 4.2)

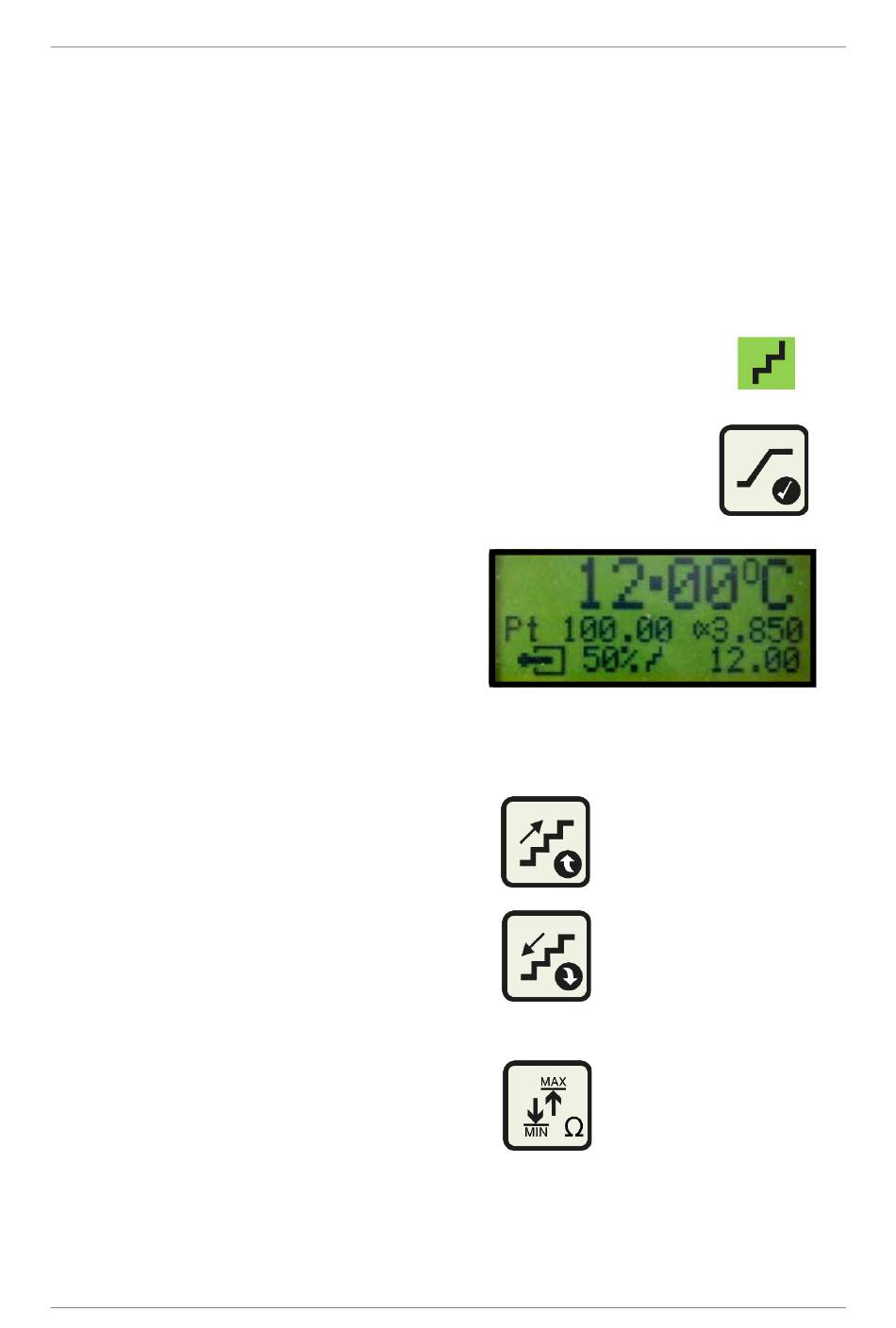

Ensure that the calibrator is set for Step Function. The display should
•
now show a step symbol in the bottom section.
• If it does not, select the step function by pressing which toggles the
Step and Ramp functions.
The display should now indicate the step
•
symbol.
To step through the % calibration points press either:
•


To read the equivalent ohms value press
•
To increase the output
To decrease the output
