Crestron Adagio™ AAE
Operations Guide – DOC. 6460A

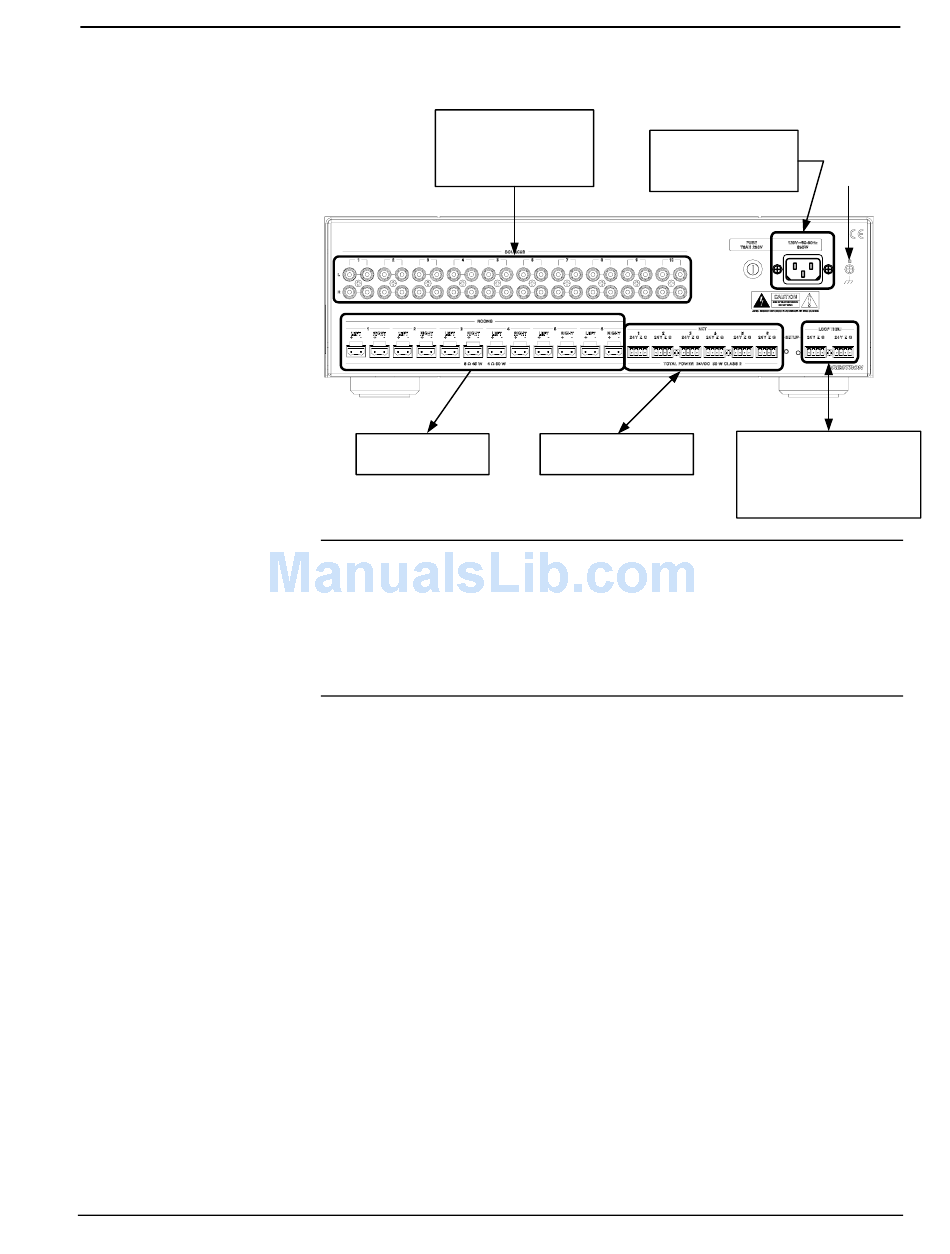

Hardware Connections for the Adagio AAE Audio Expander
AUDIO INPUTS:
FROM AUDIO SOURCE
AND OPTIONAL AUDIO
SOURCE LOOP-THRU
AUDIO OUTPUTS:
ROOM SPEAKERS
NOTE: The Adagio AAE Audio Expander is capable of distributing audio to a
maximum of six rooms. It is possible to expand your system to a maximum of
twenty-four rooms by adding multiple Audio Expanders.
NOTE: The AAEI (International version) requires a power cord that is harmonized
to the country's national and local electrical code. Each inner wire in the cord should
be at least 16 AWG or 1.5 mm
of the cord should be at least 60°C. The cord length should be 1.5 meters to 2 meters.
POWER:
120VAC~7.0A (AAE)
230VAC~3.5A (AAEI)
CRESNET: FOR
KEYPADS AND APADS
2
and rated for at least 500V. The temperature rating
Audio Expander: Adagio AAE • 7
Audio Expander
GROUND
LOOP THRU:
FOR AADS, AES OTHER
2-SERIES CONTROL
SYSTEM AND ADDITIONAL
AAE UNITS (UNPOWERED)
