Summary of Contents for Crestron ANT-EXT-5

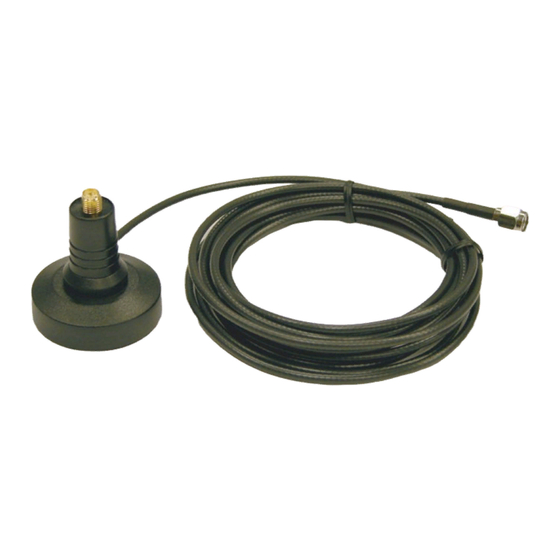

- Page 1 Crestron ANT-EXT-5 & ANT-EXT 10 Antenna Extenders Installation Guide...
- Page 2 1-888-CRESTRON Regulatory Compliance As of the date of manufacture, the ANT-EXT-5 and ANT-EXT-10 have been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling All brand names, product names and trademarks are the property of their respective owners.
- Page 3 Media Controller, CEN-RFGW-EX infiNET EX™ Gateway, CEN-HPRFGW High Powered RF Gateway or with a CEN-WAP Wireless Access Point (all sold separately). The ANT-EXT-5 provides a 5 foot (1.5 meter) cable and the ANT-EXT-10 provides a 10 foot (3 meter) cable. Specifications Specifications for the ANT-EXT-5 and ANT-EXT-10 are listed in the following table.
- Page 4 Complete the following steps to properly set up and connect the antenna extender. 1. Remove the protective dust cover from the connector at the top of the ANT-EXT-5 or ANT-EXT-10. 2. Attach the connector at the end of the cable to the antenna connector on the device.
- Page 5 For placement and orientation guidelines, refer to the latest version of the manual for your device or the Best Practices for Installation and Setup of Crestron RF Devices Reference Guide (Doc. 6689), which is available from the Crestron website, www.crestron.com/manuals.
- Page 6 Crestron's award winning customer service team by calling Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features.
-
Page 7: Return And Warranty Policies
's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage , modification or improper installation procedures. - Page 8 Crestron Electronics, Inc. Installation Guide - DOC. 7047A 15 Volvo Drive Rockleigh, NJ 07647 (2028443) Tel: 888.CRESTRON 05.10 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
