Crestron HD-EXT4-C Specifications

HD-EXT4-C
4K HDMI over HDBaseT
®
> Extends uncompressed digital video, audio, and control
signals up to 330 feet (100 meters) over a single CAT5e
twisted-pair cable [1]
> Can also extend a stereo analog audio signal via a
second cable
[2]
> HDBaseT Certified
®
> Compatible with HDMI , DVI, and DisplayPort Multimode
®
sources
[3]
> Compatible with HDMI and DVI display devices
> Works reliably without any programming or configuration
> Handles Full HD 1080p video with Deep Color and 3D
> Handles 4K video resolutions up to 230 feet (70 meters)
> Supports Dolby TrueHD, DTS-HD Master Audio
®
uncompressed 7.1 linear PCM audio
> Passes CEC, EDID and HDCP
> 24VDC power pack included
> Available in white or black
The Crestron 4K HDMI over HDBaseT
® ®
professional-grade digital HD AV signal extension for use in the home,
classroom, auditorium, or corporate boardroom. Without any special setup
or configuration, the HD-EXT4-C enables the transmission of high-
definition digital video and audio over wire runs up to 330 feet
(100 meters) using a single, low-cost CAT5e cable. 4K video is supported
over slightly shorter distances. For applications that include an analog
audio signal, the HD-EXT4-C can also handle stereo line-level audio over a
second cable.
[1,2]
The HD-EXT4-C is composed of one HD-TX4-C transmitter and one
HD-RX4-C receiver. These components are only sold as part of the
HD-EXT4-C package. For applications requiring direct interface to an
HDBaseT source or display device, please refer to the
and HD-RX3-C.
Robust Ultra HD Signal Extension
Using HDBaseT technology, the HD-EXT4-C allows for the extension of
uncompressed HDMI signals using inexpensive twisted pair cable
Without relying on signal-degrading compression or IP streaming, or
inferior HDMI signal boosting, HDBaseT reliably transports the full
resolution signal from source to display — intact and uncompromised.
The HD-EXT4-C handles video resolutions beyond HD including 4K Ultra
HD and 4K DCI. Full HD 1080p60 with 3D and Deep Color is supported over
any distance up to 330 ft (100 m), while 4K is limited to 230 ft (70 m) or
less . Audio capabilities include support for high-bitrate 7.1 audio formats
[1]
like Dolby TrueHD and DTS-HD Master Audio
®
linear PCM. In addition to HDMI, it is also compatible with DVI and
DisplayPort Multimode sources, and DVI display devices, using appropriate
adapters or interface cables .
[3]
|
crestron.com 800.237.2041
Extender w/Analog Audio
®
[3]
[1]
, and
™
Extender (HD-EXT4-C) delivers
®
HD-TX3-C
.
[1]
as well as uncompressed
™
Shown with
surface mount
bracket attached
Legacy Audio Device Support
In addition to carrying digital video and audio, the HD-EXT4-C also provides
for the extension of an analog audio signal to support DVI devices (and
certain HDMI devices) that may not include or support an embedded digital
audio channel. Enabling the extension of analog audio simply requires an
additional twisted-pair type cable.
Uncompromised and Uncomplicated
Crestron HDMI over HDBaseT products afford a very dependable signal
extension solution that's simple to implement. No special configuration
or programming is required — just connect your source and display and
enjoy high-quality HD video and audio from across the room — or the
other end of the house.

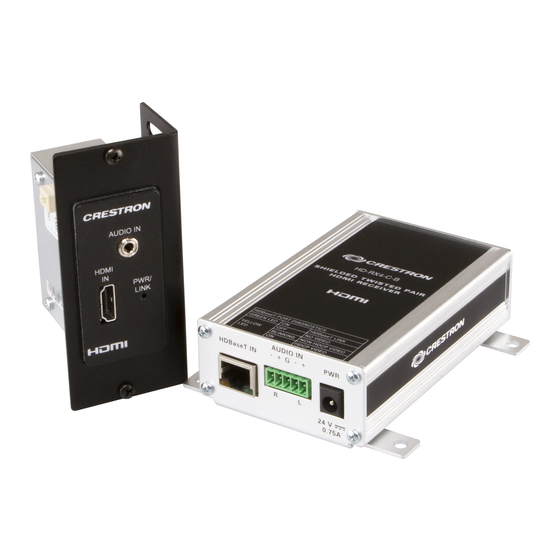

The HD-EXT4-C is composed of one transmitter and one receiver
(HD-TX4-C and HD-RX4-C, both included). The transmitter can be mounted
in a single-gang wall box, or attached to any flat surface or inside an
equipment rack. The compact receiver can be mounted discretely behind
a display device or wherever else it needs to go. Linking the two
components requires just one or two runs of CAT5e or Crestron
DM 8G ® cable [1,2] . Crestron offers the cable, connectors, and crimp tool for
a complete, easy and reliable wiring solution. A range of professional AV
interface cables and wall plates is also available to complement the
HD-EXT4-C for a total custom installation solution.
[2]
