ANT-EXT-10
Antenna Extender
Installation Guide
Description

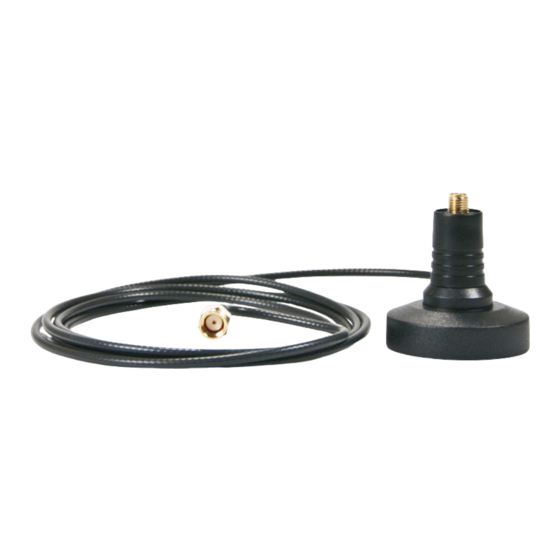

The ANT-EXT-10 Antenna Extender is designed for use
with many Crestron
RF gateways, allowing the device
®
to be installed in an equipment rack or similar enclosure
while the antenna is mounted outside the enclosure.
Additional Resources
Visit the product page on the
Crestron website (www.crestron.com)
for additional information and the
latest rmware updates. Use a QR
reader application on your mobile
device to scan the QR image.
Installation
Complete the following steps to properly set up and
connect the antenna extender.
1. Remove the protective dust cover from the
connector at the top of the antenna extender.
2. Attach the connector at the end of the cable to
the device's antenna connector.
3. Attach the device's antenna to the connector at
the top of the antenna extender.
For placement and orientation guidelines, refer to the
manual for the device or the Best Practices for
Installation and Setup of Crestron RF Products
Reference Guide (Doc. 6689), at
www.crestron.com/manuals.
