DO
GUIDE
DM-TXRX-100-STR
HD Streaming Transmitter/Receiver
DO

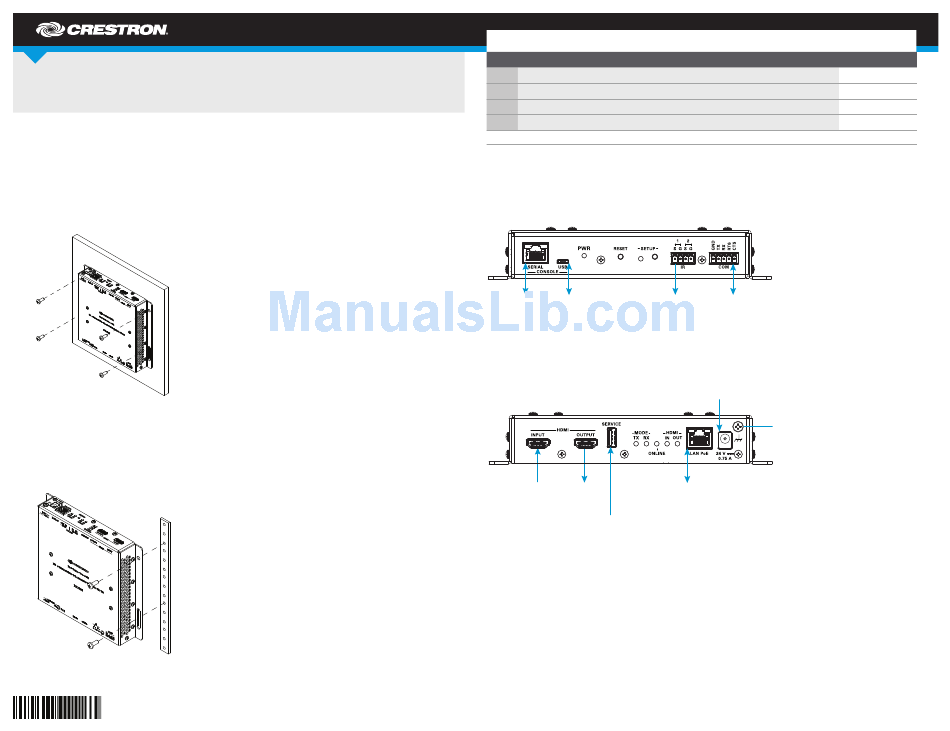

Install the Device
The Crestron
DM-TXRX-100-STR can be mounted onto a flat surface or onto a rack rail.
®
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall
(refer to illustration ) or the underside of a table.
Mounting onto a Wall
Mounting onto a Rack Rail
Using two mounting screws (not included), mount the left or right mounting flange of the device
onto the front or rear rail of a rack (refer to illustration ).
Mounting onto a Rack Rail
DO
Check the Box
QTY PRODUCT
1
Cable, RJ-45 Male - DB9 Female, 6' (1.83 m)
1
Connector, 4-Pin
1
Connector, 5-Pin
1
Power Pack, 24 Vdc 0.75 A, 100-240 Vac
Not Included: Mounting Screws, USB Mass Storage Device, IR Cables or Emitters, and USB, Data Communications, HDMI, and Ethernet Cables
DO

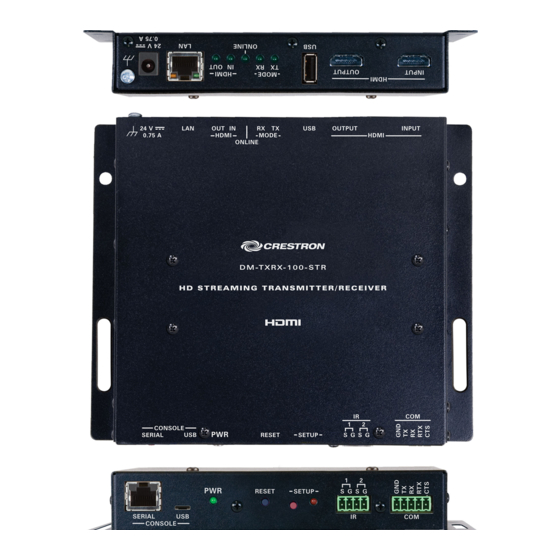

Make Connections to the Device
Make connections to the front and rear panels of the device as required for the application (refer
to illustrations and ).
Front Panel Connections
To/From
To/From
Serial Port
USB Port
Controllable
on PC
on PC
Devices
(Cable Included)
Rear Panel Connections
From HDMI
To HDMI
®
Audio/Video
Display
10BASE-T/100BASE-TX
Source
From USB Mass
Power Sourcing
Storage Device
(For Firmware Loading)
NOTE:
The LAN PoE (Power over Ethernet) port is a PoE PD (Powered Device) port. To receive
PoE, the DM-TXRX-100-STR requires connection to a PoE PSE (Power Sourcing Equipment)
port of a PoE switch. Any wiring that is connected to a PoE PSE port is for intrabuilding use only
and should not be connected to a line that runs outside of the building in which the PSE
is located.
NOTE:
Connection to the included power pack is not required if PoE is used to power the
device.
PART NUM.
2043246
2003576
2003577
2037209
To/From
To IR
RS-232
Device
From Power Pack
(Included)
Ground
To /From
802.3af PoE
Equipment
