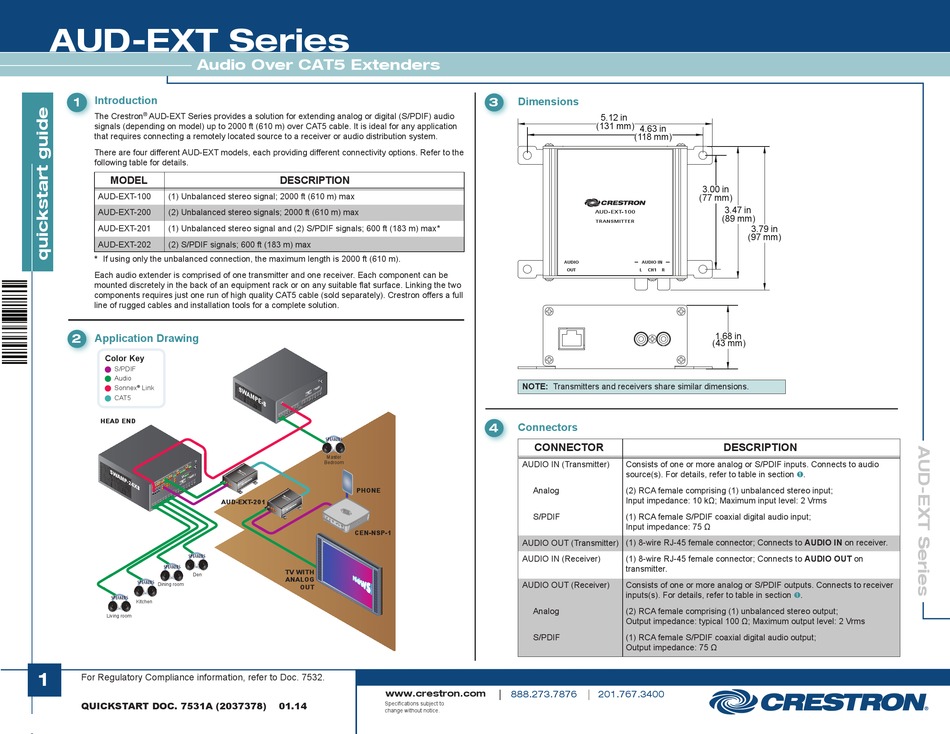

Crestron AUD-EXT-100 Quick Start Manual

AUD-EXT Series
Audio Over CAT5 Extenders
Introduction
1
The Crestron AUD-EXT Series provides a solution for extending analog or digital (S/PDIF) audio
®
signals (depending on model) up to 2000 ft (610 m) over CAT5 cable. It is ideal for any application
that requires connecting a remotely located source to a receiver or audio distribution system.
There are four different AUD-EXT models, each providing different connectivity options. Refer to the
following table for details.
MODEL
AUD-EXT-100 (1) Unbalanced stereo signal; 2000 ft (610 m) max
AUD-EXT-200 (2) Unbalanced stereo signals; 2000 ft (610 m) max
AUD-EXT-201 (1) Unbalanced stereo signal and (2) S/PDIF signals; 600 ft (183 m) max*
AUD-EXT-202 (2) S/PDIF signals; 600 ft (183 m) max
* If using only the unbalanced connection, the maximum length is 2000 ft (610 m).

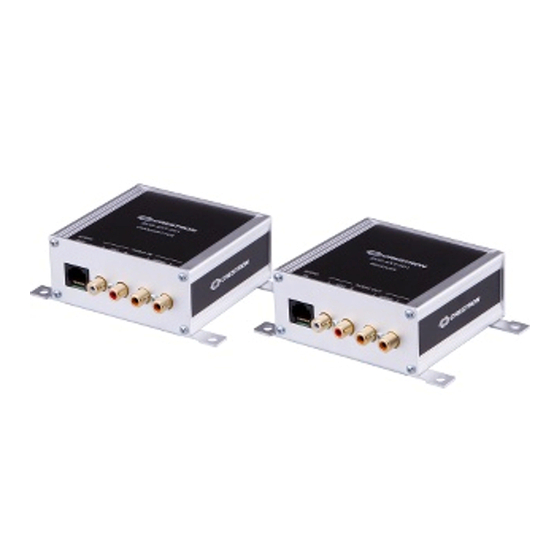

Each audio extender is comprised of one transmitter and one receiver. Each component can be
mounted discretely in the back of an equipment rack or on any suitable flat surface. Linking the two
components requires just one run of high quality CAT5 cable (sold separately). Crestron offers a full
line of rugged cables and installation tools for a complete solution.
2 Application Drawing
Color Key
S/PDIF
Audio
Sonnex Link
®
CAT5
HEAD END
16
BALA + - G NCED + -
15
S W
14 NCED + -
BALA + - G
BALA NCED G + -
A M CES 13 + - P
SOUR THRU Z G SETU G
ANAL OG + - NCED LOOP 24 Y
11 12 + - BALA G Y 24 Z G
10 LAN
P - 2 9 F OUT CAU TION SHOCK OUVRIR
8 9 SPDI RISK NOT DO ELECTRIC OF QUE OPEN PAS NE
7 RIGHT - CHOC DE ELECTRI
6 E + RISQUE AVIS: T
4 X 5 BRIDG 8 RIGH + -
4 CES 20 LEFT + - LEFT -
3 SPDI F SOUR 19 10 ONLY T +
8 2 18 8 OHMS + - 7 RIGH + -
1 LEFT
L 17 24 + -
4 6 RIGH - T
AL OUT 3 23 +
R DIGIT 2 22 LEFT + -
UTS 5 RIGH - T
1 21 OUTP +
SPEA KER LEFT + -
8
7 4 RIGH T -
6 + W
5 LEFT + - 240 4Ω NG
3 RIGH T - 120 2 WIRI W SS
+ 8Ω CLA
+ LEFT -
2 RIGH T
LEFT + -
1 T
RIGH + -
LEFT -
+
SPEAKERS
SPEAKERS
Den
SPEAKERS
Dining room
SPEAKERS
Kitchen
Living room
1
For Regulatory Compliance information, refer to Doc. 7532 .
QUICKSTART DOC. 7531A (2037378)
DESCRIPTION
S W
G
TION
CAU NOT ELECTRIC OPEN OF SHOCK NE PAS OUVRIR
A M RISK DO ELECTRI QUE
E RIGHT + - RISQUE DE CHOC
BRIDG AVIS: RIGH 8 T -
LEFT + - +
ONLY LEFT + -
P E 8 OHMS + - 7 RIGH - T
+
+ LEFT -
- 8 6 RIGH - T
+
LEFT + -
5 RIGH T -
AL IN OUTP UTS +
DIGIT SPEA KER LEFT + -
4 RIGH T -
+ W
+ LEFT - 240 4Ω NG
RIGH 3 T - 120 W 2 WIRI
+ 8Ω CLA SS
LEFT + -
2 RIGH T
+ -
LEFT + -
1 T
RIGH + -
LEFT -
+
SPEAKERS
Master
Bedroom
PHONE
AUD-EXT-201
CEN-NSP-1
TV WITH
ANALOG
OUT
www.crestron.com
01.14
Specifications subject to
change without notice.
3 Dimensions
5.12 in
(131 mm) 4.63 in
(118 mm)
AUD-EXT-100
TRANSMITTER
AUDIO AUDIO IN
OUT L CH1 R
NOTE: Transmitters and receivers share similar dimensions.
4 Connectors
CONNECTOR
AUDIO IN (Transmitter) Consists of one or more analog or S/PDIF inputs. Connects to audio
source(s). For details, refer to table in section ∑.
Analog (2) RCA female comprising (1) unbalanced stereo input;
Input impedance: 10 kΩ; Maximum input level: 2 Vrms
S/PDIF (1) RCA female S/PDIF coaxial digital audio input;
Input impedance: 75 Ω
AUDIO OUT (Transmitter) (1) 8-wire RJ-45 female connector; Connects to AUDIO IN on receiver.
AUDIO IN (Receiver) (1) 8-wire RJ-45 female connector; Connects to AUDIO OUT on
transmitter.
AUDIO OUT (Receiver) Consists of one or more analog or S/PDIF outputs. Connects to receiver
inputs(s). For details, refer to table in section ∑.
Analog (2) RCA female comprising (1) unbalanced stereo output;
Output impedance: typical 100 Ω; Maximum output level: 2 Vrms
(1) RCA female S/PDIF coaxial digital audio output;
S/PDIF
Output impedance: 75 Ω
888.273.7876 201.767.3400
3.00 in
(77 mm)
3.47 in
(89 mm)
3.79 in
(97 mm)
1.68 in
(43 mm)
DESCRIPTION
