USB-EXT-3-LOCAL and USB-EXT-3-REMOTE

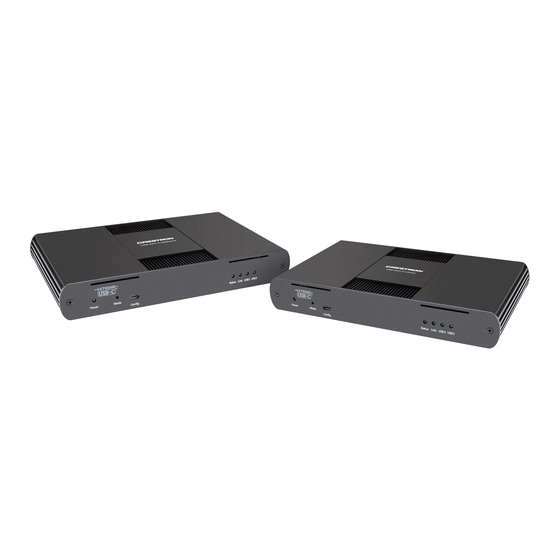

USB 3.2 Extender over CAT 6a/7 Cable, Local and Remote
The USB-EXT-3-LOCAL and USB-EXT-3-REMOTE are USB extenders
that offer USB 3.2 signal extension to support peripherals such as UC
soundbars and cameras. The USB extenders also provide simultaneous
extension of all USB signals up to 330 ft (100 m) over CAT 6a/7 cable at
speeds up to 5 Gbps.
The USB extenders are used together in point-to-point applications:
The USB-EXT-3-LOCAL provides connectivity for a single USB host
l
such as a computer. The extender supports plug-and-play
functionality with a USB host running a Windows®, macOS®, Linux®,
or Chrome OS™ operating system.
The USB-EXT-3-REMOTE provides connectivity for up to four USB
l
Type-A devices. The extender is expandable to support up to 30 USB
devices with the connection of up to three USB hubs (not included).
In the Box
USB-EXT-3-LOCAL and USB-EXT-3-REMOTE
1
USB-EXT-3-LOCAL (6511972)
1
Power Adapter, 24VDC, 1A, 100-240VAC (2058634)
1
Power Cable, 6 ft (1.83 m) (2058628)
1
Cable, USB 3.1, A-B, 5.91 ft (1.8 m) (2058635)
1
Kit, Mounting Hardware (2058627)
USB-EXT-3-REMOTE (6511973)
1
Power Adapter, 24VDC, 2.71A , 100-240VAC (2058629)
1
Power Cable, 6 ft (1.83 m) (2058628)
1
Kit, Mounting Hardware (2058627)
Install the Extenders
The USB extenders may be placed on flat surfaces or mounted to flat
surfaces or rack rails.
Place onto a Flat Surface
Place the USB-EXT-3-LOCAL on a secure, level surface near the host
computer, and place the USB-EXT-3-REMOTE on a secure, level surface
near the USB device(s). The rubber feet on the bottom of each extender
help prevent the extenders from shifting.
Quick Start
1
