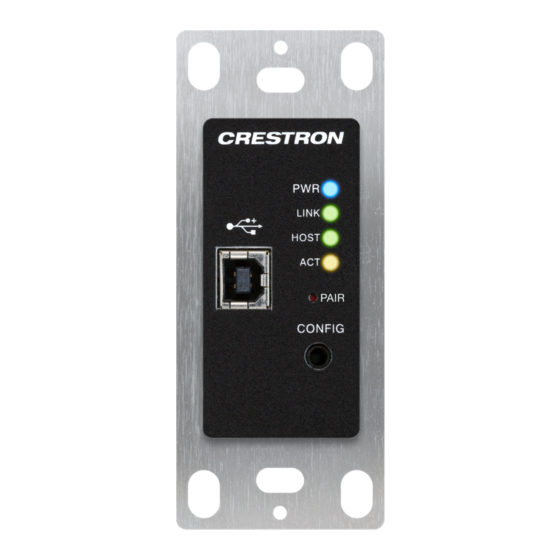

USB-NX2-LOCAL-1G/USB-NX2-REMOTE-1G
USB over Network Wall Plates with Routing
The Crestron® USB over Network Wall Plates with Routing
(USB-NX2-LOCAL-1G
and USB-NX2-REMOTE-1G) deliver reliable,
high-speed USB signal extension and routing for USB 1.0, 1.1, and 2.0
devices throughout a home, business, or campus for distances up to
330 ft (100 m). Featuring Virtual Hub capabilities, five
USB-NX2-REMOTE-1G endpoints may simultaneously be connected to a
single USB-NX2-LOCAL-1G endpoint. Creating this virtual hub allows
numerous USB devices to control a single host device (such as a PC). The
USB signals are transported over the local network and managed through
a Crestron control system.
The USB-NX2-LOCAL-1G and USB-NX2-REMOTE-1G are functionally
similar. For simplicity within this guide, the term "USB endpoint" is used
except where noted. The USB endpoints are also compatible with the USB
over Ethernet Extenders with Routing (USB-EXT-DM-LOCAL and
USB-EXT-DM-REMOTE).
In the Box
USB-NX2-LOCAL-1G
1
Additional Items
2
Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218)
1
Connector, 2-Pin (2003574)
1
Ferrite Bead, Cable Mount (2054945)
1. Refer to the
USB-NX2-LOCAL-1G
and
variations.
Quick Start
1
1
or USB-NX2-REMOTE-1G
USB-NX2-REMOTE-1G
product pages for color
1
Advertisement
Related Manuals for Crestron USB-NX2-LOCAL-1G
Summary of Contents for Crestron USB-NX2-LOCAL-1G
- Page 1 Quick Start USB-NX2-LOCAL-1G/USB-NX2-REMOTE-1G USB over Network Wall Plates with Routing The Crestron® USB over Network Wall Plates with Routing (USB-NX2-LOCAL-1G and USB-NX2-REMOTE-1G) deliver reliable, high-speed USB signal extension and routing for USB 1.0, 1.1, and 2.0 In the Box devices throughout a home, business, or campus for distances up to 330 ft (100 m).
- Page 2 2. Connect one end of the CAT5e (or better) cable to the LINK port on the without a control system or DigitalMedia™ system to provide point-to- USB-NX2-LOCAL-1G, and connect the other end to the LINK port on point USB extension over a LAN or a dedicated CAT5e (or higher) cable.
- Page 3 Quick Start USB-NX2-LOCAL-1G/USB-NX2-REMOTE-1G USB over Network Wall Plates with Routing *Connection to a 24 VDC power supply is not required when PoE is used to power the USB extender or when the USB-NX2-LOCAL-1Gis connected to the Host device. NOTE: The CONFIG jack on the USB endpoint is reserved for factory use only.
-
Page 4: Check The Installation
Check that the ACT, HOST, LINK, and PWR LEDs light on both the 1. Install any software on the host computer that is required to operate USB-NX2-LOCAL-1G and the USB-NX2-REMOTE-1G. If the HOST or the USB device(s). Refer to the USB device documentation for LINK LEDs do not light, then the cabling between the USB endpoints and installation instructions. - Page 5 1. Ensure that the USB-NX2-LOCAL-1G is directly connected to the USB-NX2-REMOTE-1G. 2. On the USB-NX2-LOCAL-1G, press and hold the PAIR button for less than 10 seconds. The LINK LED on the front panel of the endpoint starts flashing green fast, indicating that the endpoint is in Pairing...
- Page 6 Quick Start USB-NX2-LOCAL-1G/USB-NX2-REMOTE-1G USB over Network Wall Plates with Routing Troubleshoot the USB Endpoint The following table provides corrective actions for possible trouble situations. If further assistance is required, please contact a Crestron Customer service representative. Symptom Issue Action The PWR LED on the The endpoint is not receiving power from the USB Ensure that the host device is connected to the USB-NX2-REMOTE-1G.
- Page 7 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
