- Page 1 Crestron Adagio™ AAE Audio Expander Operations Guide...
-
Page 2: Important Safety Instructions
Important Safety Instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Table Of Contents
Crestron Adagio™ AAE Contents Audio Expander: Adagio AAE Introduction ... 1 Features and Functions ... 1 Applications... 1 Specifications ... 2 Physical Description... 3 Industry Compliance ... 5 Setup ... 6 Network Wiring... 6 Identity Code ... 6 Hardware Hookup ... 6 Programming Software ... -
Page 5: Audio Expander: Adagio Aae
Crestron Adagio™ AAE Audio Expander: Adagio AAE Introduction Features and Functions Applications The following diagram shows how an Adagio home entertainment system, using out- of-the-box functionality, might be configured to include the Adagio AAE Audio Expander. Adagio System Showing the AAE in a Typical Application Operations Guide –... -
Page 6: Specifications
Audio Expander Specifications Specifications for the Adagio AAE Audio Expander are listed in the following table. Adagio AAE Audio Expander Specifications NOTE: Cable connections can extend the overall depth of the AAE by approximately two to three inches. 2 • Audio Expander: Adagio AAE SPECIFICATION Audio Controls... -

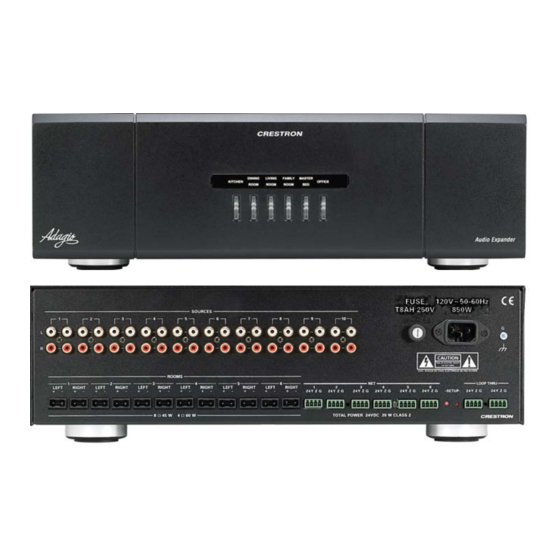

Page 7: Physical Description
Crestron Adagio™ AAE Physical Description This section provides information on the connections, controls, and indicators available on your Adagio AAE Audio Expander. Adagio AAE Audio Expander Physical View Adagio AAE Audio Expander Overall Dimensions Operations Guide – DOC. 6460A 17.16 in (43.59 cm) 17.71 in (44.98 cm) - Page 8 Audio Expander Adagio AAE Audio Expander-Rear View NOTE: Cable connections can extend the overall depth of the AAE by approximately two to three inches. Connectors, Controls and Indicators (Continued on following page) 4 • Audio Expander: Adagio AAE CONNECTORS, CONTROLS, & INDICATORS ROOM BUTTONS Provided to select the room.
-
Page 9: Industry Compliance
Crestron Adagio™ AAE Connectors, Controls and Indicators (continued) Industry Compliance This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc. As of the date of manufacture, the Adagio AAE Audio Expander has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labeling. -
Page 10: Setup
Audio Expander Setup Network Wiring When wiring the network, consider the following: For more details, refer to “Check Network Wiring” on page 13. Identity Code The Net ID of the Adagio AAE Audio Expander has been factory set to 31. The Net IDs of multiple Audio Expanders in the same system must be unique. - Page 11 Crestron Adagio™ AAE Hardware Connections for the Adagio AAE Audio Expander NOTE: The Adagio AAE Audio Expander is capable of distributing audio to a maximum of six rooms. It is possible to expand your system to a maximum of twenty-four rooms by adding multiple Audio Expanders. NOTE: The AAEI (International version) requires a power cord that is harmonized to the country’s national and local electrical code.
- Page 12 Audio Expander Fuse Replacement If the AAE does not power up when it is plugged into an AC outlet, the fuse may need to be replaced. The fuse holder is located on the top-right of the rear panel (next to the power cord connector). To replace the fuse: Label the Buttons Use Crestron Engraver software to create and print custom labels for the Adagio AAE Audio Expander’s front panel room buttons.
-
Page 13: Programming Software
Crestron Adagio™ AAE Programming Software Have a question or comment about Crestron software? Answers to frequently asked questions (FAQs) can be viewed in the Online Help section of the Crestron website. To post a question or view questions you have submitted to Crestron’s True Blue Support, log in at http://support.crestron.com. -
Page 14: Programming With Crestron Systembuilder
Audio Expander Programming with Crestron SystemBuilder The easiest method of programming a Crestron system. For additional details, download SystemBuilder from the Crestron website and examine the extensive help file. Any program created for the AAE with SystemBuilder will include the out-of-the- box functionality in addition to any additional programming created with SystemBuilder. - Page 15 Crestron Adagio™ AAE C2Net Device, Slot 10 “AAE Device Settings” Window Programming Manager Programming Manager is the view where programmers "program" a Crestron control system by assigning signals to symbols. The symbol can be viewed by double clicking on the icon or dragging it into Detail View. A description for each signal in the symbol is described in the SIMPL Windows help file (F1).
-
Page 16: Uploading And Upgrading
Audio Expander Uploading and Upgrading Crestron recommends using the latest programming software and that each device contains the latest firmware to take advantage of the most recently released features. However, before attempting to upload or upgrade, it is necessary to establish communication. -
Page 17: Problem Solving
Crestron Adagio™ AAE Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. Adagio AAE Audio Expander Troubleshooting Check Network Wiring Use the Right Wire In order to ensure optimum performance over the full range of your installation topology, Crestron Certified Wire, and only Crestron Certified Wire, may be used. -
Page 18: Reference Documents
Audio Expander Cable Length Equation L < Make sure the cable length value is less than the value calculated on the right side of the equation. For example, a Cresnet run using 18 AWG Crestron Certified Wire and drawing 20 watts should not have a length of run more than 333 feet. If Cresnet HP is used for the same run, its length could extend to 1250 feet. -
Page 19: Return And Warranty Policies
Crestron Adagio™ AAE Return and Warranty Policies Merchandise Returns / Repair Service 1. No merchandise may be returned for credit, exchange, or service without prior authorization from CRESTRON. To obtain warranty service for CRESTRON products, contact an authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory and request an RMA (Return Merchandise Authorization) number. - Page 20 Crestron Electronics, Inc. Operations Guide – DOC. 6460A 15 Volvo Drive Rockleigh, NJ 07647 (2014561) Tel: 888.CRESTRON 09.06 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
