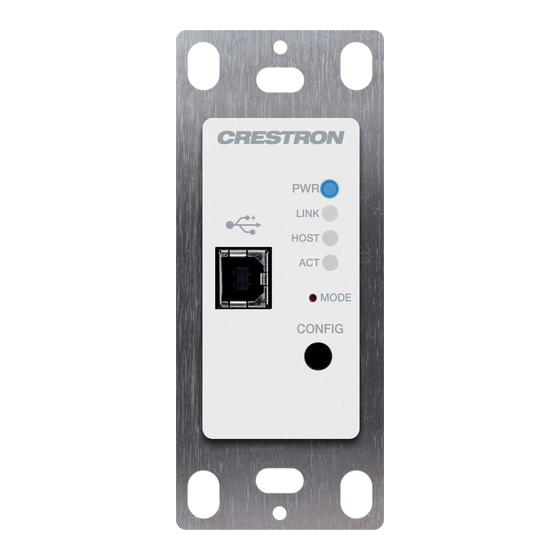

USB-EXT-2-LOCAL-1G/USB-EXT-2-REMOTE-1G
The Crestron® USB over Category Cable Extender Wall Plates
(USB-EXT-2-LOCAL-1G
and USB-EXT-2-REMOTE-1G) deliver reliable,
high-speed USB signal extension for USB 1.1 and 2.0 devices in a
conference room, classroom, auditorium, command center, medical
facility, public space, or residence. Without requiring any special
configuration or drivers, the USB extenders enable wire runs up to 330 ft
(100 m) over a single CAT5e (or better) shielded twisted-pair (STP) cable.
The USB extenders support most USB device types and are plug-and-play
compatible with computers running Windows®, macOS®, and Linux®
operating systems.
The USB-EXT-2-LOCAL-1G and USB-EXT-2-REMOTE-1G are functionally
similar. For simplicity within this guide, the term "USB extender" is used
except where noted. The USB extenders are also compatible with the USB
over Twisted Pair Extender (USB-EXT-2).
In the Box
USB-EXT-2-LOCAL-1G
1
Additional Items
2
Screw, 6-32 x 1/4 in., Pan Head, SEMS (2007218)
1
Ferrite Bead, Cable Mount (2054945)
USB-EXT-2-LOCAL-1G Only
1
Connector, 2-Pin (2003574)
1
PW-2407WUL, Wall Mount Power Pack, 24 VDC, 0.75 A,
100-240 VAC (2045866)
1. Refer to the
USB-EXT-2-LOCAL-1G
color variations.
Quick Start
1
1
or USB-EXT-2-REMOTE-1G
and
USB-EXT-2-REMOTE-1G
product pages for
1
