SSV Works RZ4-2KRC Manual page 8

- - ~ ...
■

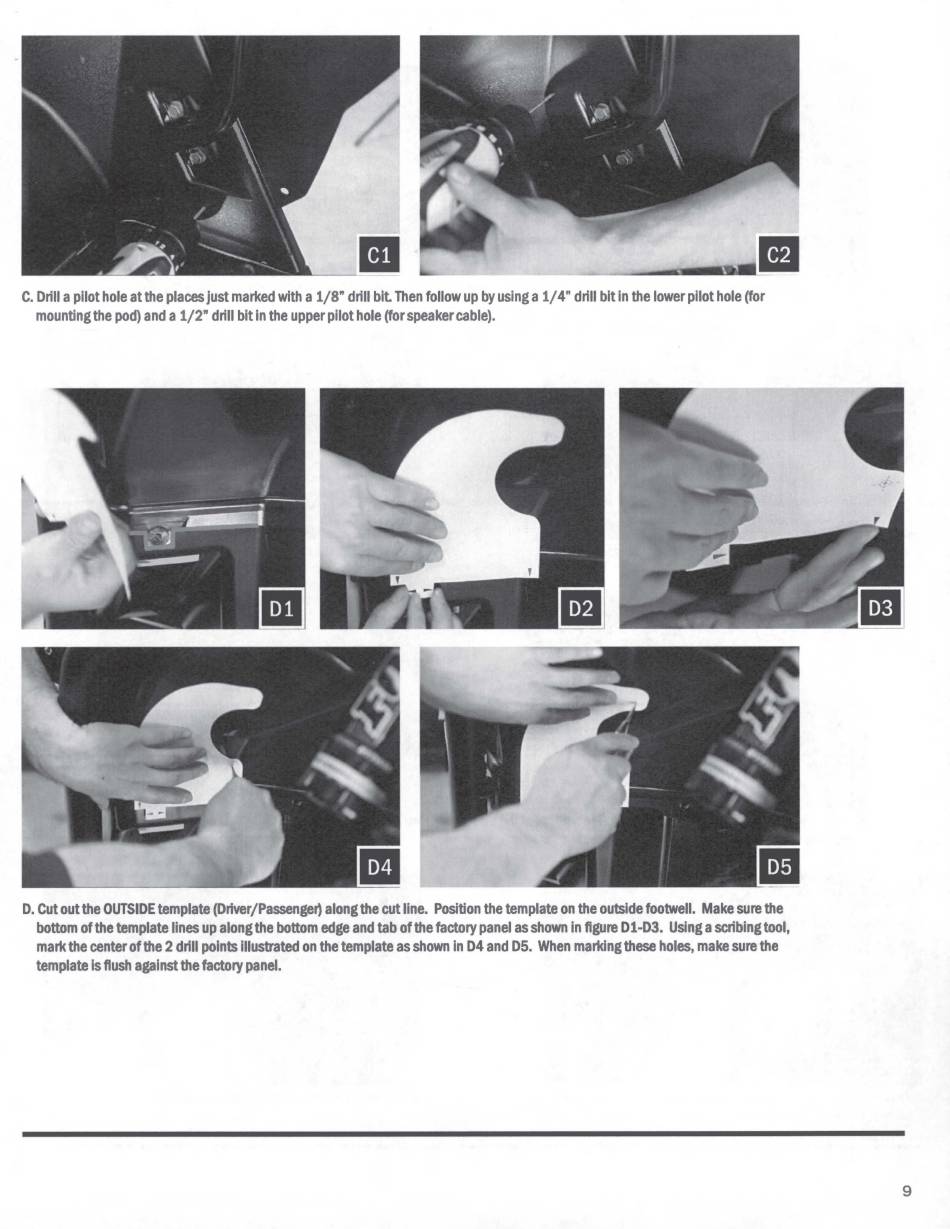

C. Drill a pilot hole at the places just marked with a 1/8" drill bit Then follow up by using a 1/ 4" drill bit In the lower pilot hole (for
mounting the pod) and a 1/2" drill bit In the upper pilot hole (for speaker cable).
D. Cut out the OUTSIDE template (Driver/Passenger, along the cut line. Position the template on the outside footwell. Make sure the
bottom of the template lines up along the bottom edge and tab of the factory panel as shown in figure D1-D3. Using a scribing tool,
mark the center of the 2 drill points illustrated on the template as shown in D4 and D5. When marking these holes, make sure the
template is flush against the factory panel.
9
