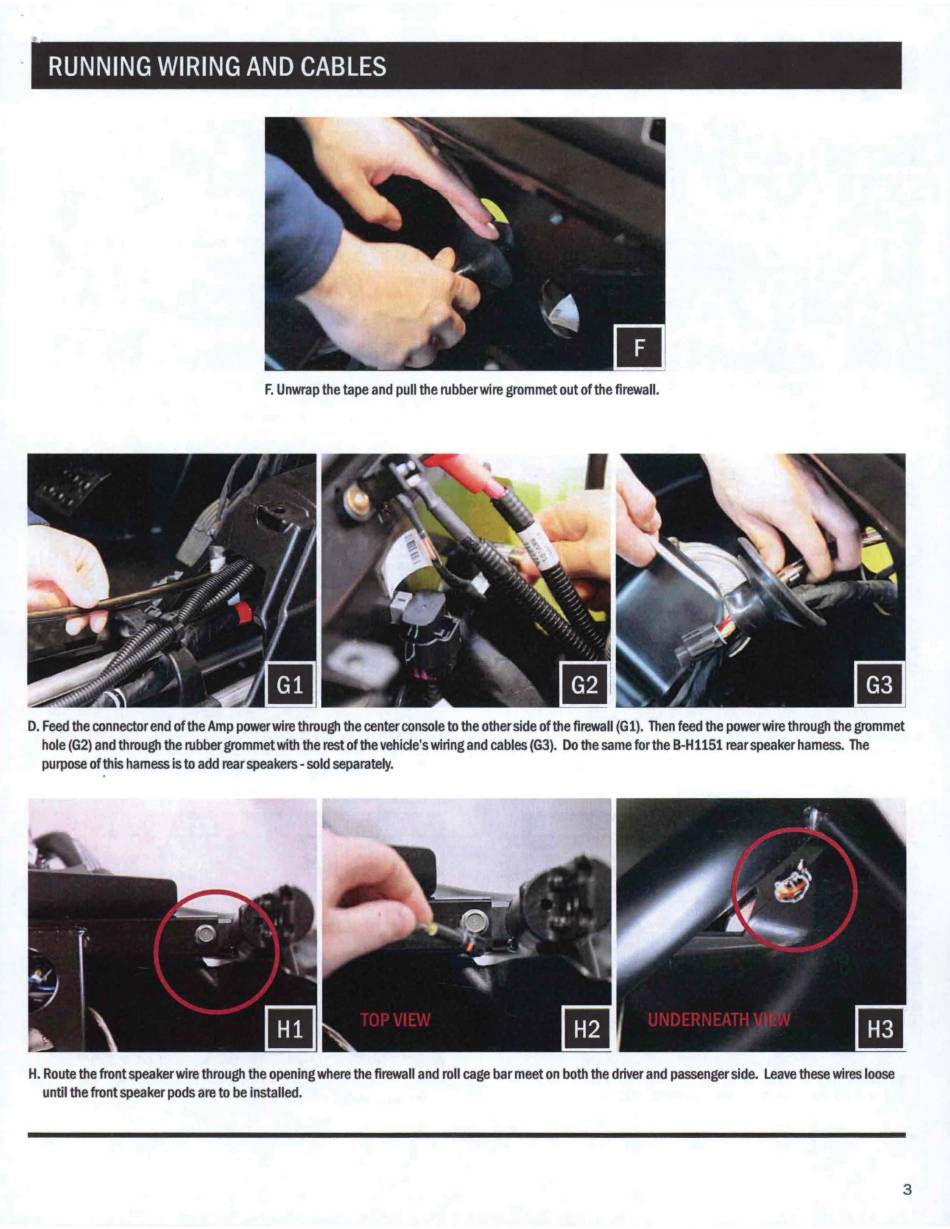

RUNNING WIRING AND CABLES
F. Unwrap the tape and pull the rubber wire grommet out of the firewall.
D. Feed the connector end of the Amp power wire through the center console
to
the other side of the firewall
(G1).
Then feed the power wire through the grommet
hole (G2) and through the rubber grommet with the rest of the vehicle's wiring and cables (G3). Do the same for the B-H1151 rear speaker harness. The
purpose of this harness is to add rear speakers- sold separately.
H.
Route the front speaker wire through the opening where the firewall and roll cage bar meet on both the driver and passenger side. Leave these wires loose
until the front speaker pods are to be installed.
3
