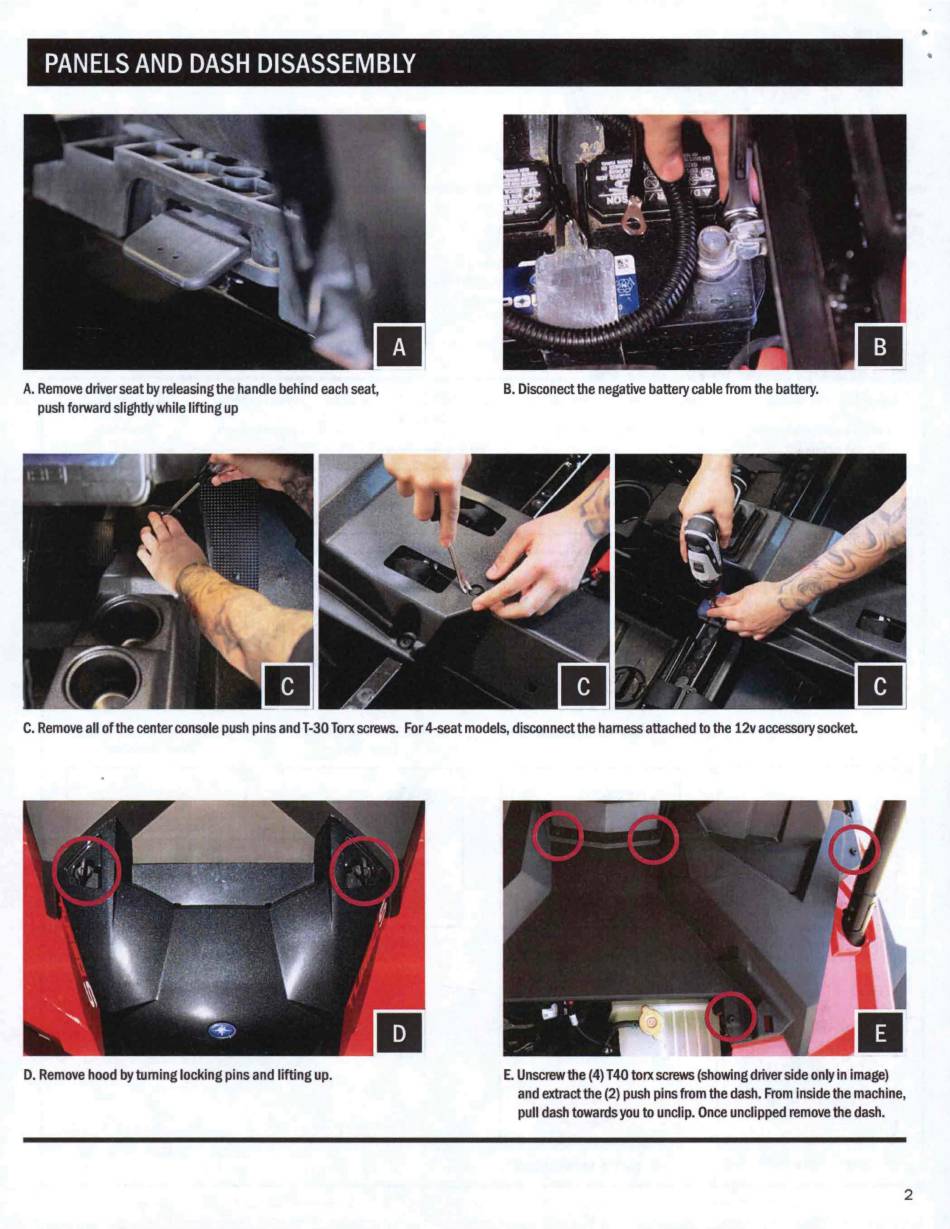

PANELS AND DASH DISASSEMBLY
A. Remove driver seat by releasing the handle behind each seat,
push forward slightly while lifting up
B. Disconect the negative battery cable from the battery.
C. Remove all of the center console push pins and T-30 Tone screws. For 4-seat models, disconnect the harness attached to the 12v accessory socket
D. Remove hood by
tu
ming locking pins and lifting up.
E. Unscrew the (4) T40 tone screws (showing driver side only in image)
and
extract
the (2) push pins from the dash. From inside the machine,
pull dash towards you to unclip. Once unclipped remove the dash.
2
•
•
