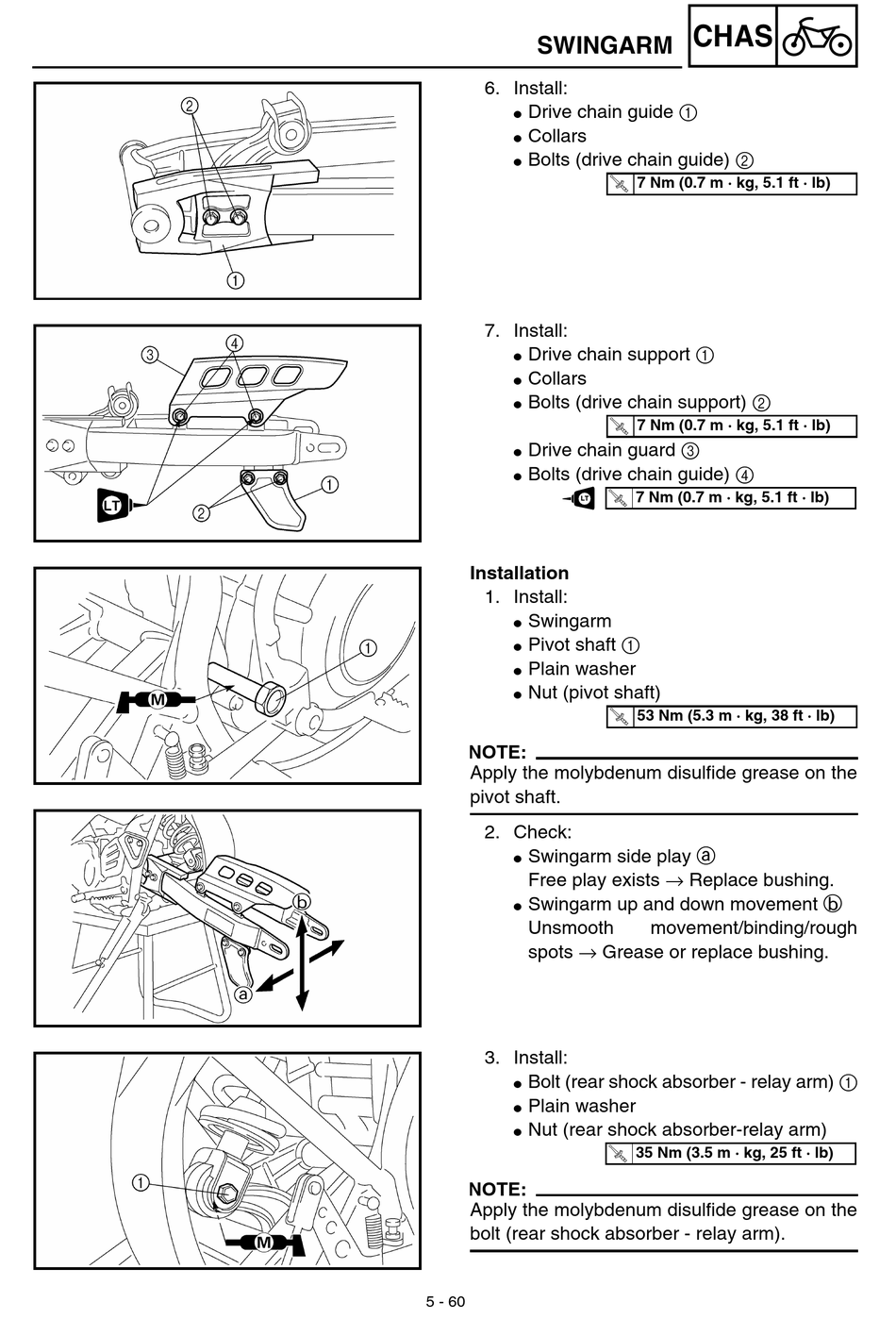

SWINGARM
6. Install:
Drive chain guide 1
G
Collars
G
Bolts (drive chain guide) 2
G
7. Install:
Drive chain support 1
G
Collars
G
Bolts (drive chain support) 2
G
Drive chain guard 3
G
Bolts (drive chain guide) 4
G
LT
Installation
1. Install:
Swingarm
G
Pivot shaft 1
G
Plain washer
G
Nut (pivot shaft)
G
NOTE:
Apply the molybdenum disulfide grease on the
pivot shaft.
2. Check:
Swingarm side play a
G
Free play exists → Replace bushing.
Swingarm up and down movement b
G
Unsmooth
spots → Grease or replace bushing.
3. Install:
Bolt (rear shock absorber - relay arm) 1
G
Plain washer
G
Nut (rear shock absorber-relay arm)
G
NOTE:
Apply the molybdenum disulfide grease on the
bolt (rear shock absorber - relay arm).
5 - 60
CHAS
7 Nm (0.7 m · kg, 5.1 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
53 Nm (5.3 m · kg, 38 ft · lb)
movement/binding/rough
35 Nm (3.5 m · kg, 25 ft · lb)
