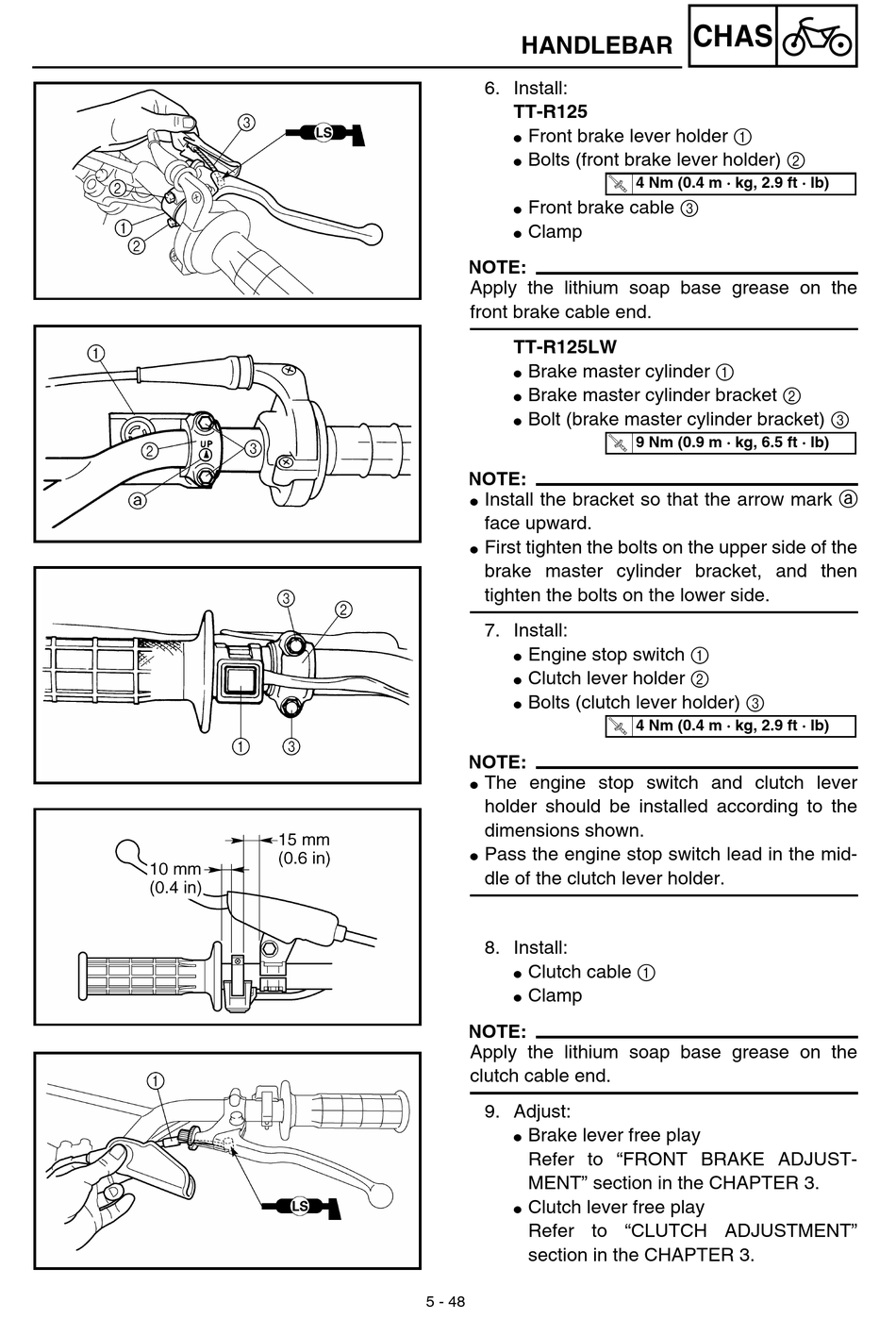

HANDLEBAR
6. Install:
TT-R125
Front brake lever holder 1
G
Bolts (front brake lever holder) 2
G
Front brake cable 3
G
Clamp
G
NOTE:
Apply the lithium soap base grease on the
front brake cable end.
TT-R125LW
Brake master cylinder 1
G
Brake master cylinder bracket 2
G
Bolt (brake master cylinder bracket) 3
G
NOTE:
Install the bracket so that the arrow mark a
G
face upward.
First tighten the bolts on the upper side of the
G
brake master cylinder bracket, and then
tighten the bolts on the lower side.
7. Install:
Engine stop switch 1
G
Clutch lever holder 2
G
Bolts (clutch lever holder) 3
G
NOTE:
The engine stop switch and clutch lever
G
holder should be installed according to the
dimensions shown.
Pass the engine stop switch lead in the mid-
G
dle of the clutch lever holder.
8. Install:
Clutch cable 1
G
Clamp
G
NOTE:
Apply the lithium soap base grease on the
clutch cable end.
9. Adjust:
Brake lever free play
G
Refer to "FRONT BRAKE ADJUST-
MENT" section in the CHAPTER 3.
Clutch lever free play
G
Refer to "CLUTCH ADJUSTMENT"
section in the CHAPTER 3.
5 - 48
CHAS
4 Nm (0.4 m · kg, 2.9 ft · lb)
9 Nm (0.9 m · kg, 6.5 ft · lb)
4 Nm (0.4 m · kg, 2.9 ft · lb)
