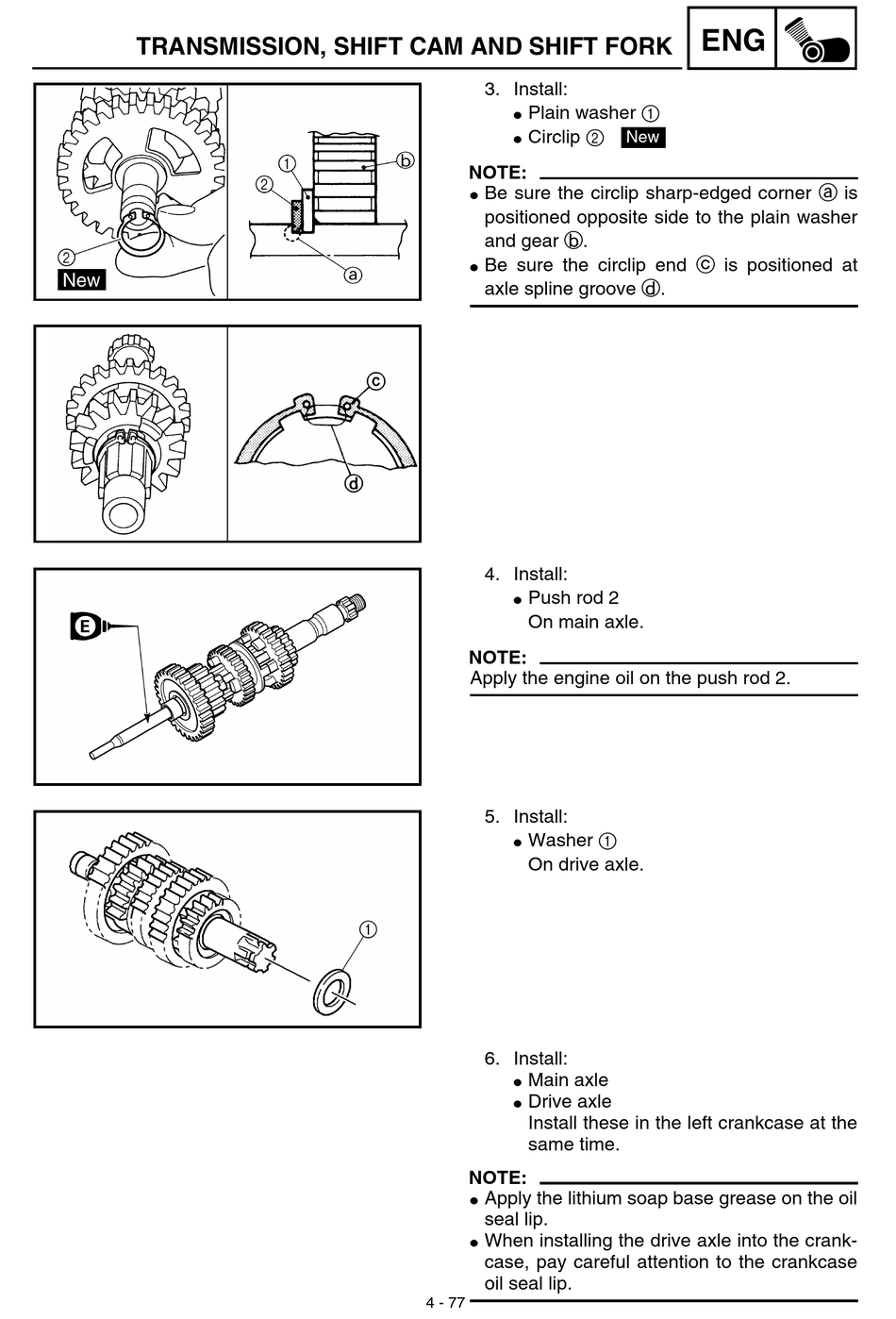

TRANSMISSION, SHIFT CAM AND SHIFT FORK
3. Install:
Plain washer 1
G
Circlip 2
G
NOTE:
Be sure the circlip sharp-edged corner a is
G
positioned opposite side to the plain washer
and gear b.
Be sure the circlip end c is positioned at
G
axle spline groove d.
4. Install:
Push rod 2
G
On main axle.
NOTE:
Apply the engine oil on the push rod 2.
5. Install:
Washer 1
G
On drive axle.
6. Install:
Main axle
G
Drive axle
G
Install these in the left crankcase at the
same time.
NOTE:
Apply the lithium soap base grease on the oil
G
seal lip.
When installing the drive axle into the crank-
G
case, pay careful attention to the crankcase
oil seal lip.
4 - 77
ENG
New
