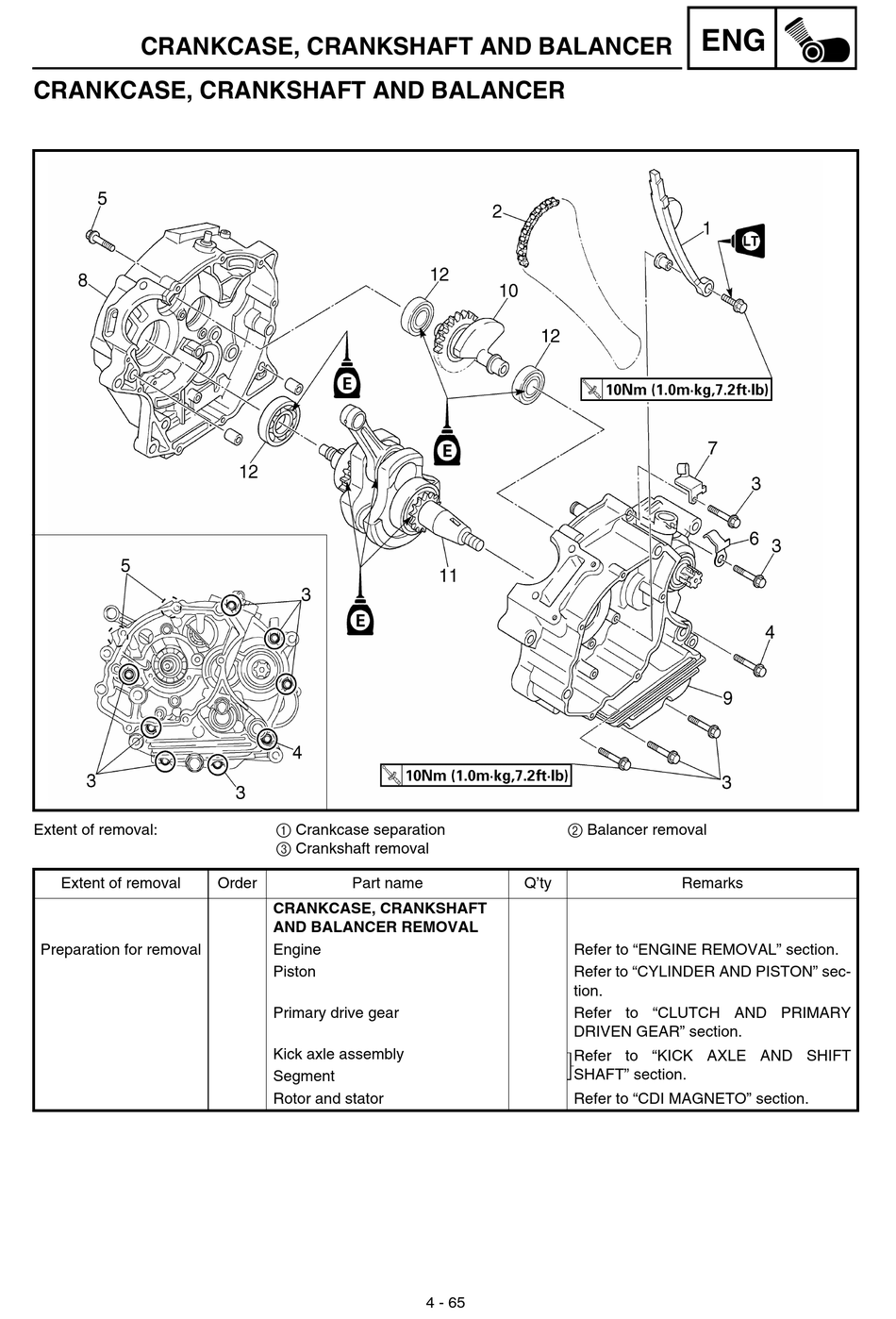

CRANKCASE, CRANKSHAFT AND BALANCER

CRANKCASE, CRANKSHAFT AND BALANCER
Extent of removal:
Extent of removal
Preparation for removal
1 Crankcase separation
3 Crankshaft removal
Order Part name
CRANKCASE, CRANKSHAFT
AND BALANCER REMOVAL
Engine
Piston
Primary drive gear
Kick axle assembly
Segment
Rotor and stator
2 Balancer removal
Q'ty
Refer to "ENGINE REMOVAL" section.
Refer to "CYLINDER AND PISTON" sec-
tion.
Refer to "CLUTCH AND PRIMARY
DRIVEN GEAR" section.
Refer to "KICK AXLE AND SHIFT
SHAFT" section.
Refer to "CDI MAGNETO" section.
4 - 65
ENG
Remarks
